Extron WVS 201D WallVault Digital Classroom AV System
- • 2+2 input WallVault classroom system with the USFM 100 wall enclosure
- • Handles up to six sources at 4096x2160 @30Hz or 4K/UHD @60Hz (4:2:0)
- • Class D amplifier: 25 watts rms per channel into 4 or 8 ohms
- • USFM 100 fits 16 in or 24 in on-centre studs, minimum 2 x 4 framing
- • Optional UPB 125 bracket carries ultra short-throw projectors to 40 lbs
- • Twisted pair links run 150 ft at 2K or 130 ft at 4K/30Hz
- • MLC Plus 100 button panel control with a 3 year Extron warranty
Product discontinued.
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

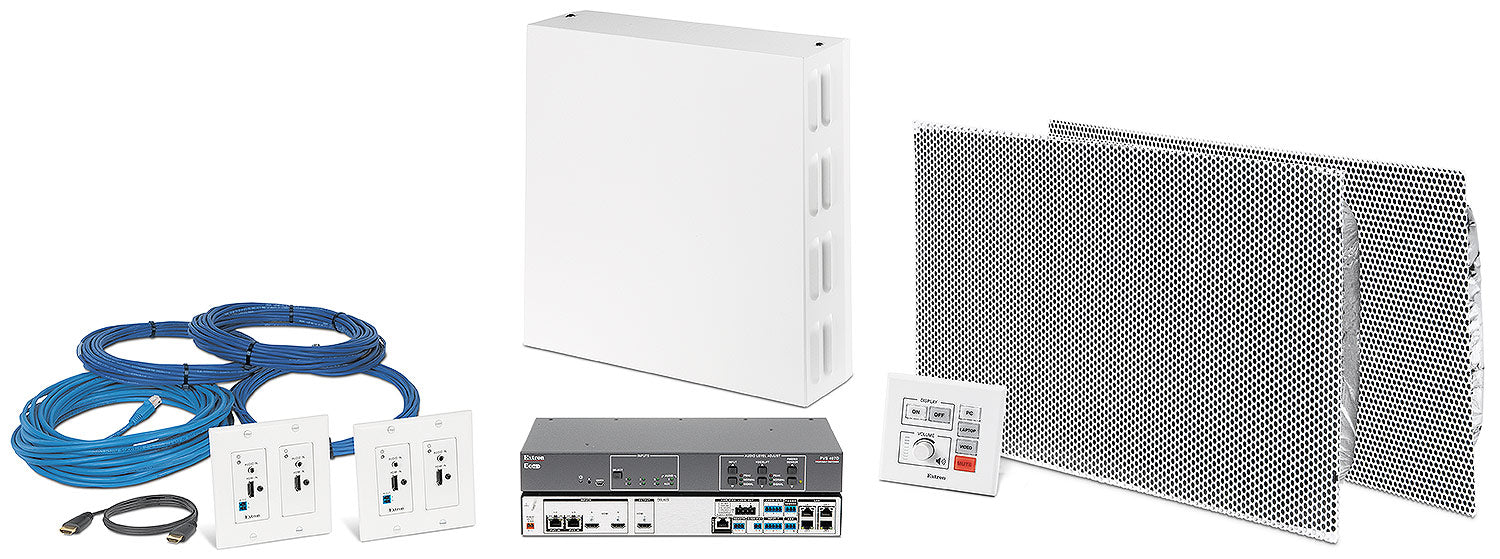

Extron WVS 201D (part number 42-309-13) — a 2+2 input WallVault Digital classroom AV system supplied with the USFM 100 projector mount and equipment enclosure.
WallVault solves the problem of a classroom that has no accessible ceiling void. Instead of hiding the switcher above the tiles, the USFM 100 bolts to the wall studs and doubles as both the mount for an ultra short-throw projector and a lockable enclosure for the PVS 407D switcher and its power supply. Knockouts on all four faces let raceway or conduit enter wherever the cable path demands.
Key Capabilities
- Two local HDMI inputs plus two twisted pair wallplate inputs cover up to six classroom sources
- Video to 4096x2160 at 30 Hz, or 4K/UHD at 60 Hz with 4:2:0 chroma subsampling
- Class D amplifier rated 25 watts rms per channel into 4 or 8 ohms, 20 Hz to 20 kHz
- Unmanaged four-port 10/100Base-T switch lets three more devices share one network drop
- Wallplate links reach 150 ft (46 m) at 2K, or 130 ft (40 m) at 4K/30 Hz over XTP DTP 24 cable
- USFM 100 mounts to 16 in or 24 in on-centre studs, minimum 2 x 4 in framing
- Optional UPB 125 bracket suits ultra short-throw projectors up to 40 lbs
Where It Is Used
Classrooms and training rooms built around a wall-mounted ultra short-throw projector or a flat panel, particularly in buildings with hard ceilings, exposed structure or restricted ceiling access — schools, community colleges, corporate training centres and clinical teaching rooms.
Specifications at a Glance
- Configuration: 2+2 input digital WallVault with USFM 100

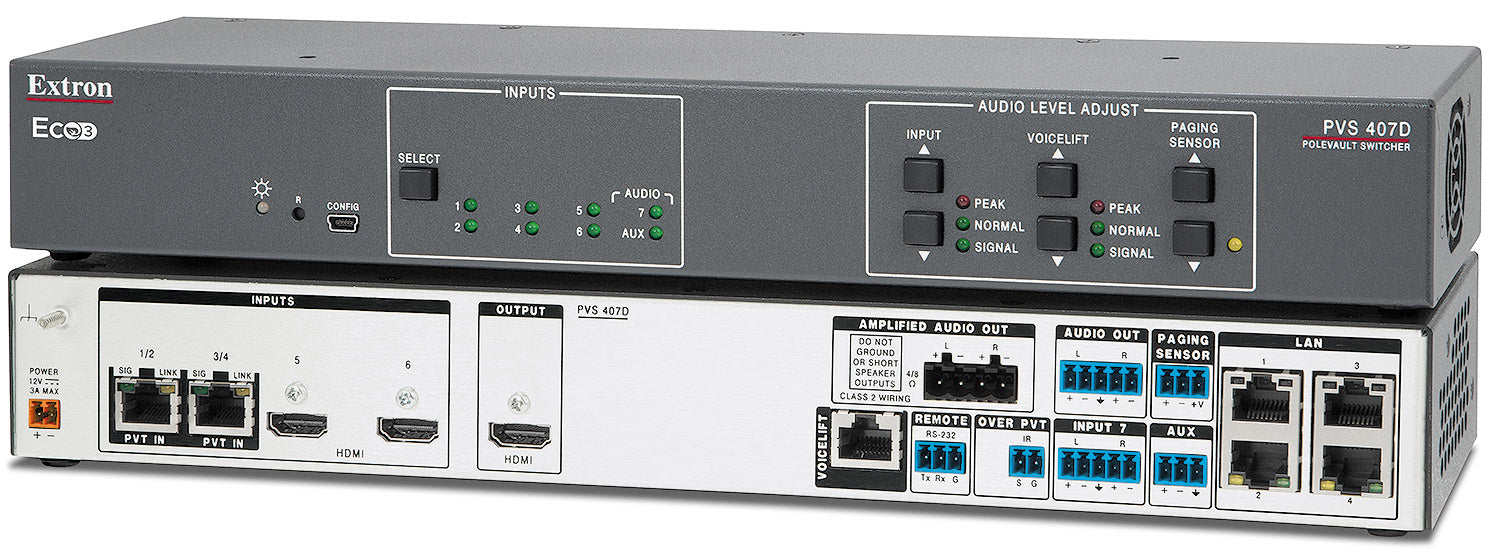

- Switcher: Extron PVS 407D, 1.9 x 13.5 x 3.5 in (48 x 343 x 89 mm), 2.9 lbs (1.3 kg)
- Amplifier: 2 channels, Class D, 25 watts rms each
- Controller: MLC Plus 100 button panel
- Warranty: 3 years parts and labor
Also referenced as Extron WVS201D, WVS-201D, part number 4230913. Extron lists this part number as retired.
