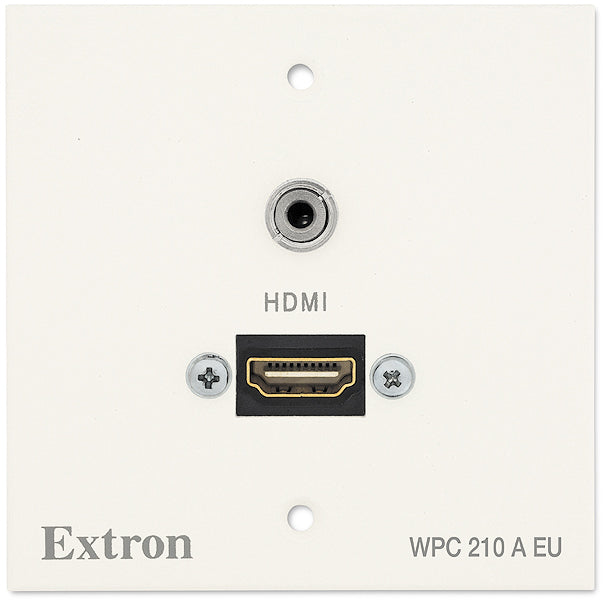

Extron WPC 210 A EU (part number 70-990-05) — a metal one-gang wallplate that presents HDMI, VGA and analogue stereo audio pass-through connections in a European junction box.

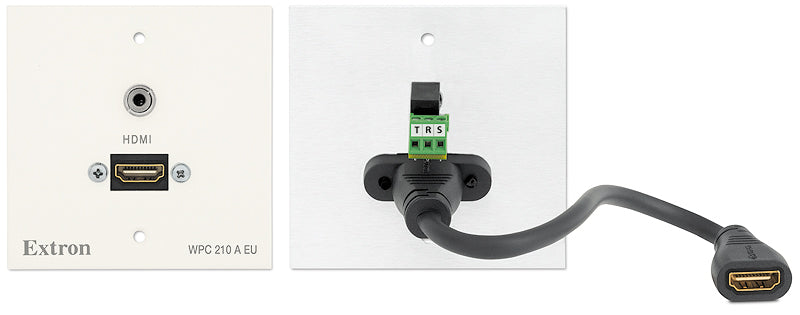

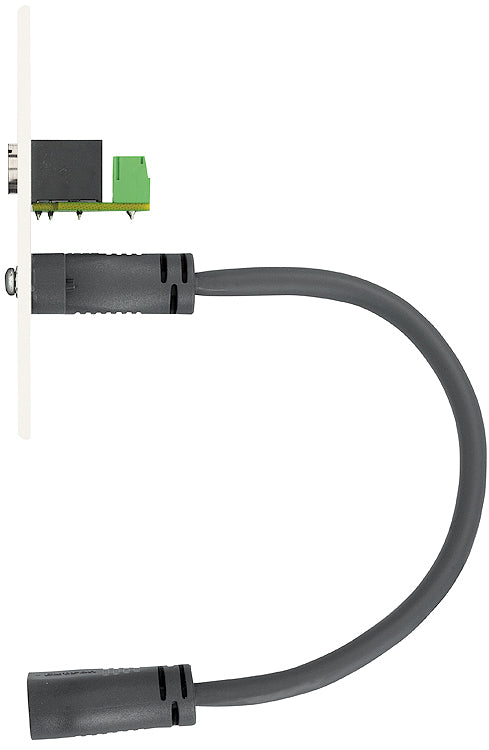

Three signal paths share one plate. HDMI arrives at a female connector on the face and leaves on a female HDMI pigtail behind the wall, so the installer terminates with an ordinary cable rather than a punch-down. VGA and 3.5 mm stereo audio both break out to captive screw connectors, which is how a permanently installed run should be terminated in a junction box. On the video side the plate is rated to HDMI 1.4 with a 10.2 Gbps ceiling, reaching 4096 x 2160 or 3840 x 2160 at 30 Hz in 4:4:4, or at 60 Hz using 4:2:0 chroma sampling. Leave at least 1.85 in. of depth inside the box for the device and its cable.

Key Capabilities

• HDMI, VGA and 3.5 mm stereo audio on a single one-gang plate
• 4K support to 4096 x 2160, 30 Hz at 4:4:4 or 60 Hz at 4:2:0
• Maximum video data rate of 10.2 Gbps (3.4 Gbps per colour)
• HDMI on a pigtail; VGA and audio on captive screw connectors
• Mounts to one-gang EU enclosures, 80.6 x 80.6 x 50 mm device envelope
• Metal wallplate weighing 0.2 lb (0.1 kg)

Where It Is Used

European and international meeting rooms, classrooms and lecture halls wired to EU junction box standards. It is the plate to specify when a room still has to accept legacy VGA laptops alongside HDMI sources, and where analogue audio has to be broken out separately for a local amplifier or DSP.

Specifications at a Glance

• Signal type: HDMI 1.4; max video data rate 10.2 Gbps
• Connectors: 1 female HDMI to female HDMI pigtail, 1 VGA to captive screw, 1 3.5 mm audio to captive screw
• Frame rates: 24, 25, 30, 50 or 60 fps; 8 bits per colour
• Enclosure: metal wallplate, 3.17 in. H x 3.17 in. W x 1.97 in. D (1-gang EU)
• CE, RoHS and WEEE compliant; 3 years parts and labor

Also referenced as Extron WPC210AEU, WPC-210-A-EU, part number 7099005.
