Extron WFA 100 US (part number 60-1944-01) — USB Wi-Fi and Bluetooth adapter for ShareLink Pro, US version.

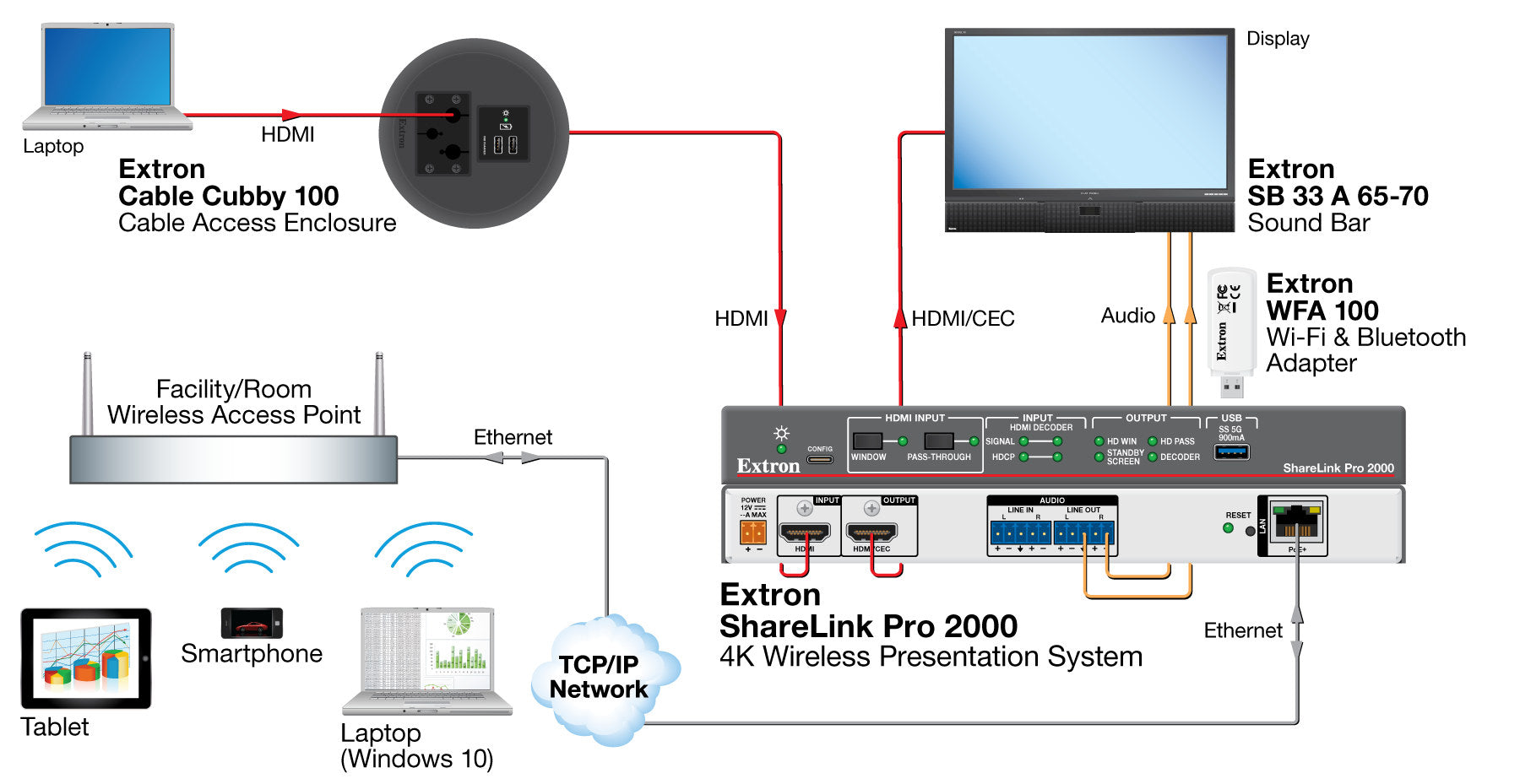

This adapter plugs into the front-panel USB port of a compatible ShareLink Pro collaboration unit and adds Miracast wireless mirroring for Windows 10 laptops without installing any client software. Bluetooth handles the ShareNext discovery step, so a presenter's laptop finds the nearest ShareLink Pro automatically, then hands the video and audio stream over an existing Wi-Fi Direct or infrastructure connection.

Key Capabilities

• Simultaneous 2T2R Wi-Fi and Bluetooth v4.2 radio in one USB 2.0 dongle
• IEEE 802.11ac/a/b/g/n support with WEP, WPA, and WPA2 security
• US channel plan: 802.11b/g/n channels 1-11, 802.11ac/a/n channels 36-165
• Draws just 450 mA max in transmit mode from the host USB port
• Compact 1.03 x 2.85 x 0.42 in enclosure weighing 0.03 lb

Where It Is Used

Fits meeting rooms and huddle spaces already running an Extron ShareLink Pro unit, giving Windows 10 guests one-step Miracast screen sharing during US installations without loading drivers or apps on the presenter's laptop.

Specifications at a Glance

• Standards: IEEE 802.11ac/a/b/g/n, Bluetooth v4.2
• Connector: 1 male USB 2.0 type A
• Power: 5 VDC from host USB port, 450 mA max
• Enclosure: 1.03 x 2.85 x 0.42 in, 0.03 lb
• Warranty: 3 years parts and labor

Also referenced as Extron WFA100US, WFA-100-US, part number 60194401.
