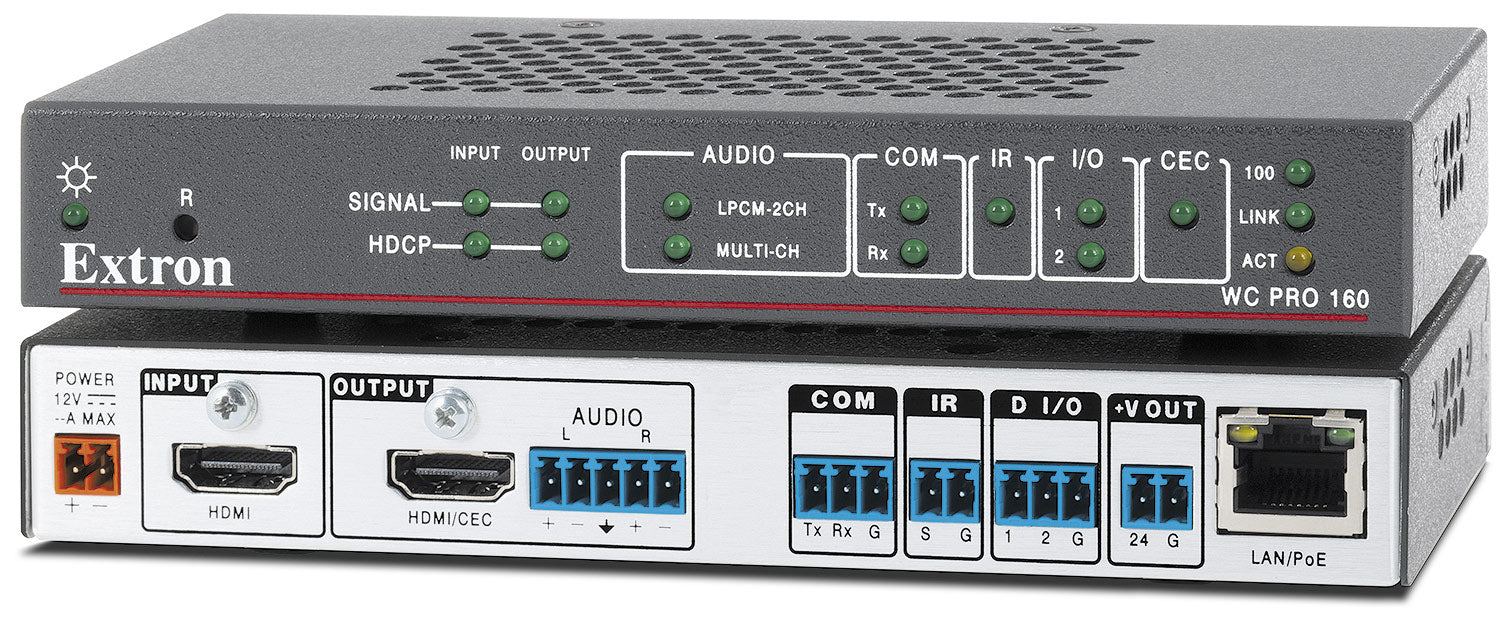

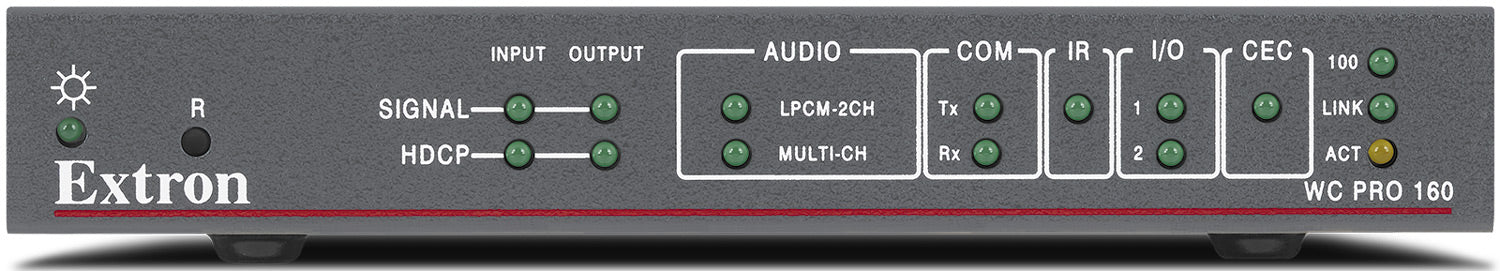

Extron WC Pro 160 (part number 60-1804-01) — the base EDID Minder workspace automation controller, designed so a room turns itself on the moment a source is connected.

Rather than watching for people, this controller watches for signal. Plug a laptop into the HDMI input and an active stream tells the unit to wake the display; EDID Minder sits in the middle keeping the source and the sink in agreement about timings so resolutions do not shuffle on every connection. Where an occupancy trigger is preferred, an optional sensor can drive the same behavior. The internal web page picks one control path for the display from Ethernet, RS-232 or IR, and the LinkLicense for WC Pro Control Processor opens Global Configurator Plus and Professional when a room grows past a single display.

Key Capabilities

Carries 4096x2160 and 3840x2160 at 60 Hz with 4:4:4 sampling and 8 bits per color, to an 18 Gbps ceiling.
HDMI 2.0 with HDCP 2.3 on the input and output, both female type A.
EDID Minder handles EDID communication automatically between the connected devices.
Analog stereo breakout on a 5-pole captive screw, variable from 0 to 100% in 1% steps.
Consumes 9.6 watts over PoE 802.3af class 3; an optional 12 VDC 18 watt supply is available separately.
Metal chassis of 1.0" H x 6.5" W x 3.0" D, UL Listed for plenum air handling spaces and UL 2043 compliant.

Where It Is Used

A natural fit for huddle spaces, conference rooms, classrooms and shared desking areas built around one display and one connection point. The under-desk mounting kit and plenum listing let it disappear beneath a table or above a ceiling tile in commercial fit-outs and campus refresh projects.

Specifications at a Glance

Video: HDMI 2.0 / HDCP 2.3 in and out, up to 4K/60 4:4:4
Data rate: 18 Gbps (6 Gbps per color)
Control: 1 RS-232, 1 IR, 2 digital I/O, +24 VDC 75 mA output, 1 RJ-45
Power: 9.6 watts on PoE 802.3af class 3
Enclosure: metal, 1.0" H x 6.5" W x 3.0" D, 0.5 lbs

Also referenced as Extron WCPro160, WC-Pro-160, part number 60180401.

Specifications

Part Number: 60-1804-01 (Automation Controller w/EDID Minder)

Manufacturer: Extron

Model: WC Pro 160

Condition: New

Optional LinkLicenses: WC Pro Control Processor Upgrade (79-2604-01); User Interface Upgrade (79-2546-01)

Maximum 4K Capability: 4096x2160 at 60 Hz, 4:4:4 chroma sampling, 8 bit maximum depth per color; also 3840x2160 at 60 Hz, 4096x2160 at 30 Hz and 3840x2160 at 30 Hz

Frame Rate: 24, 25, 30, 50, or 60 fps

Chroma Sampling: 4:4:4

Color Bit Depth: 8 bits per color (24 bits total, RGB)

Signal Type: HDMI 2.0, HDCP 2.3

Maximum Video Data Rate: 18 Gbps (6 Gbps per color)

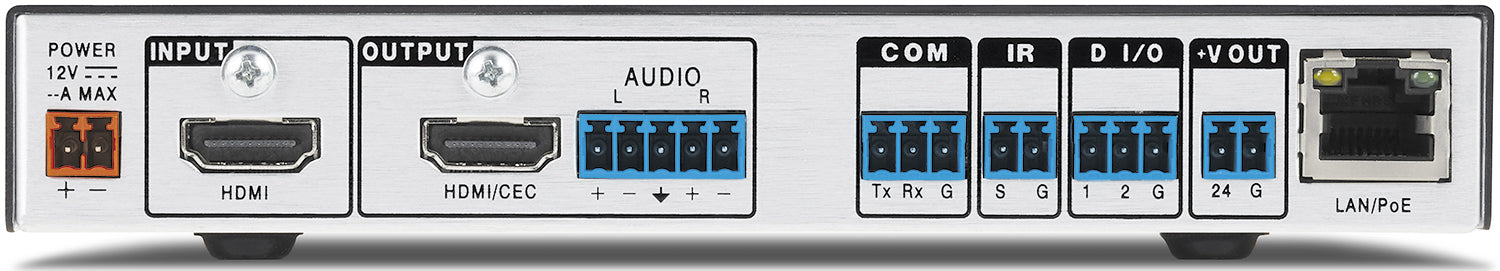

HDMI Input: 1 female HDMI type A

HDMI Input Resolutions: Up to 4K (4096x2160) at 60 Hz with 24-bit color (8 bits per color) and 4:4:4 color sampling

HDMI Output: 1 female HDMI type A

SDRAM: 1 GB

Flash: 8 GB

Audio Output: 1 analog line level stereo, balanced or unbalanced (variable); 1 digital embedded in HDMI (fixed)

Audio Output Connectors: (1) 5 pole 3.5 mm captive screw; 1 female HDMI

Audio Output Impedance: 50 ohms unbalanced, 100 ohms balanced

Gain Error: ±0.5 dB, channel to channel

Maximum Level (Hi-Z): 15 dBu balanced, 9 dBu unbalanced

Output Volume Range: 0 to 100% in 1% steps

Serial Control: 1 bidirectional RS-232 on (1) 3.5 mm direct insertion captive screw connector, 3 pole

Baud Rate and Protocol (RS-232): 300 to 115200 baud (9600 default); 8 (default) or 7 data bits; 1 (default) or 2 stop bits; no parity (default), even or odd. Supports software flow control, default no flow control.

Serial Pin Configuration: RS-232: 1 = Tx, 2 = Rx, 3 = Gnd

IR Control: 1 programmable TTL level (0 to 5 V) infrared, carrier and non-carrier, up to 300 kHz, on (1) 3.5 mm direct insertion captive screw connector, 2 pole; pin 1 = signal, 2 = Gnd

IR Output Carrier Frequency: 30 kHz to 300 kHz

Digital Inputs/Outputs: 2 configurable digital inputs/outputs on (1) 3.5 mm captive screw, 3 pole; pins 1, 2, G

Digital Input Voltage Range: 0 to 24 VDC

Digital Input Impedance: ≥10k ohms typical

Programmable Pullup: 2k ohms to +5 VDC

Threshold Low to High: >2.8 VDC

Threshold High to Low: <2.0 VDC

Digital Outputs: 250 mA sink from 24 VDC max.

+24 V Output Port: (1) 3.5 mm captive screw connector, 2 pole; +24 VDC, 75 mA, fixed, non-switchable

Network Interface Controllers (NICs): 1

Ethernet Connector: 1 female RJ-45

Ethernet Data Rate: 10/100Base-T, half/full duplex with autodetect

Protocols: DHCP, DNS, HTTP, HTTPS, ICMP, NTP, SFTP, SMTP, SNMP, SSH, TCP/IP, UDP/IP

Default Network Settings: Link speed and duplex level autodetected; IP address 192.168.254.250; subnet mask 255.255.255.0; gateway 0.0.0.0; DHCP off; DNS 127.0.0.1

Configuration Software: Global Configurator Plus and Professional, embedded web page, Product Configuration Software

Programming Software: ControlScript and Deployment Utility and ControlScript extension for VS Code

Utilities: Toolbelt, embedded web page

Resource Management Software: GlobalViewer Enterprise

Control Apps: Extron Control

Hardware User Interfaces: TouchLink Pro touchpanels or network button panels

Power Supply (sold separately): External; input 100-240 VAC, 50-60 Hz; output 12 VDC, 1.5 A, 18 watts

Power Input: Power over Ethernet (PoE), complies with PoE 802.3af class 3

Power Consumption (PoE): Device 9.6 watts; device and power supply 12.6 watts

Power Consumption (12 VDC power supply): Device 7.6 watts; device and power supply 8.8 watts

Temperature/Humidity: Storage -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing; operating +32 to +104 °F (0 to +40 °C) / 10% to 90%, noncondensing

Cooling: Convection, vents on top and sides

Thermal Dissipation (PoE): Device 25.7 BTU/hr; device and power supply 35.7 BTU/hr

Thermal Dissipation (12 VDC power supply): Device 18.9 BTU/hr; device and power supply 23.0 BTU/hr

Rack Mount: Yes, with optional 1U rack shelf

Furniture Mount: Yes, with optional MBU 125 under-desk mounting kit (included)

Enclosure Type: Metal

Enclosure Dimensions: 1.0" H x 6.5" W x 3.0" D (25 mm H x 165 mm W x 76 mm D)

Product Weight: 0.5 lbs (0.23 kg)

Regulatory Compliance: CE, c-UL, UL, C-tick, FCC Class A, ICES, RoHS, WEEE. UL Listed for use in plenum air handling spaces. Meets UL 2043 for heat and smoke release.

Product Warranty: 3 years parts and labor

Everlast Power Supply Warranty: 7 years parts and labor

Diagram

Resources

Brochure | WC Pro 160 60-1804-01 | WC Pro 160 (wc_pro_160_A2.pdf)

Brochure | WC Pro 160 60-1804-01 | WC Pro 160 (wc_pro_160_revA2_SP.pdf)

Brochure | WC Pro 160 60-1804-01 | WC Pro 160 (wc_pro_160_revA2_FR.pdf)

Brochure | WC Pro 160 60-1804-01 | WC Pro 160 (wc_pro_160_revA2_IT.pdf)

Brochure | WC Pro 160 60-1804-01 | WC Pro 160 (wc_pro_160_revA2_GE.pdf)

Brochure | WC Pro 160 60-1804-01 | WC Pro 160 (WC_Pro_160_Rev_A2_CN_Online.pdf)

Manual | WC Pro 160 60-1804-01 | Control Systems Network Ports, Protocols, and Licenses

Manual | WC Pro 160 60-1804-01 | WC Pro 160 Setup Guide

Manual | WC Pro 160 60-1804-01 | WC Pro 160 User Guide

Specifications | WC Pro 160 60-1804-01 | WC PRO 160

Panel Drawing | WC Pro 160 60-1804-01 | WC Pro 160
