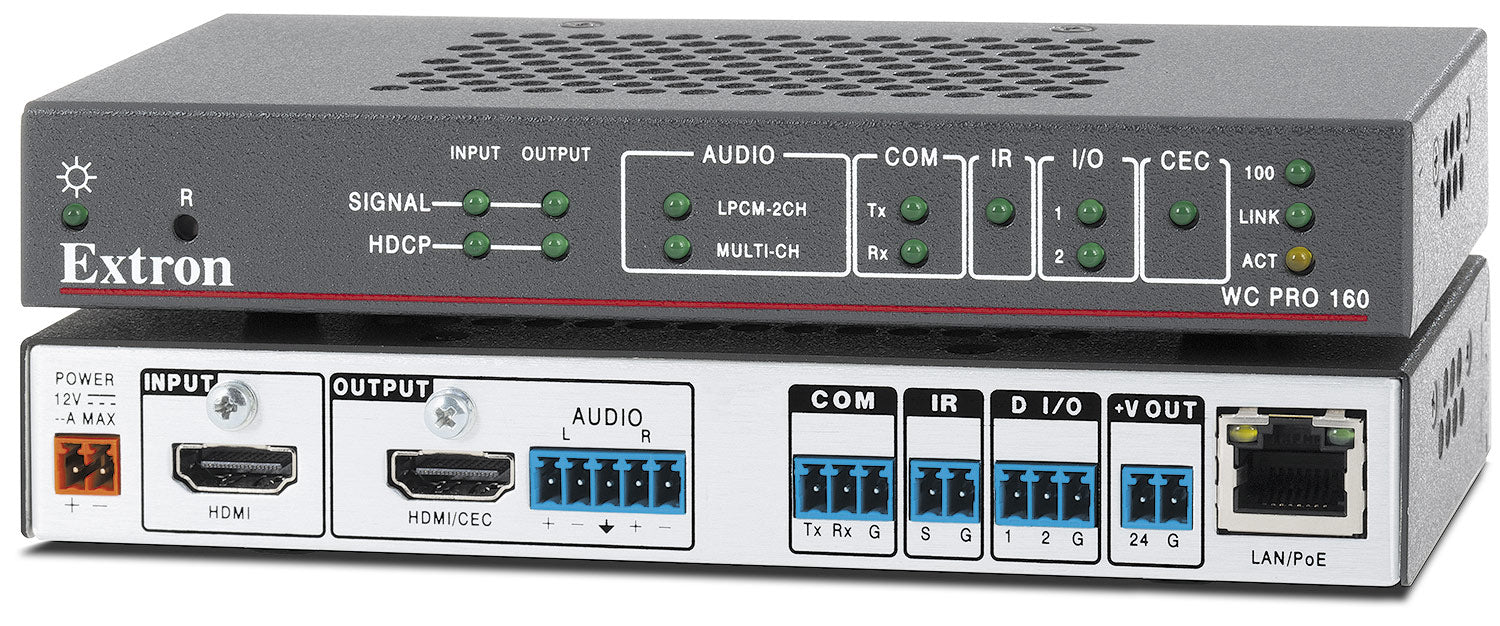

Extron WC Pro 160 (part number 42-355-01) — the EDID Minder workspace automation controller supplied with the LinkLicense for WC Pro Control Processor upgrade already applied.

Signal presence is the trigger here rather than motion. Connect a laptop or room PC to the HDMI input and the controller sends the display a power-on command; EDID Minder keeps the source and display negotiating cleanly so nothing has to renegotiate resolution each time somebody plugs in. Video passes at up to 4K with 4:4:4 chroma, and a variable analog stereo output on a 5-pole captive screw lets audio break out to a local amplifier. Because this is the 42-355-01 build, Global Configurator Plus and Professional are unlocked from day one, along with TouchLink Pro touchpanels, Network Button Panels and IP Link Secure Platform devices.

Key Capabilities

Handles 4096x2160 and 3840x2160 at 60 Hz with 4:4:4 sampling and 8 bits per color, up to an 18 Gbps data rate.
HDMI 2.0 with HDCP 2.3 on both the input and the output, each a female type A connector.
EDID Minder manages EDID handshaking automatically between the connected source and display.
Variable analog stereo output reaches 15 dBu balanced or 9 dBu unbalanced, adjustable in 1% steps.
Draws 9.6 watts over PoE 802.3af class 3, or runs from an optional 12 VDC 18 watt Everlast supply.
Metal enclosure measuring 1.0" H x 6.5" W x 3.0" D, UL Listed for plenum air handling spaces.

Where It Is Used

Suited to huddle rooms, conference rooms, classrooms and open-plan collaboration points where a single display and a single source are the whole system. The plenum rating and included under-desk mounting kit also make it practical for above-ceiling and under-table placement in office fit-outs.

Specifications at a Glance

Video: HDMI 2.0 / HDCP 2.3 in and out, up to 4K/60 4:4:4
Data rate: 18 Gbps (6 Gbps per color)
Control: 1 RS-232, 1 IR, 2 digital I/O, +24 VDC 75 mA output, 1 RJ-45
Power: 9.6 watts on PoE 802.3af class 3
Enclosure: metal, 1.0" H x 6.5" W x 3.0" D, 0.5 lbs

Also referenced as Extron WCPro160, WC-Pro-160, part number 4235501.

Specifications

Part Number: 42-355-01 (Automation Controller w/EDID Minder, LL WC Upgrade)

Manufacturer: Extron

Model: WC Pro 160

Condition: New

Included LinkLicense: LinkLicense for WC Pro Control Processor upgrade (Extron part 79-2604-01 when ordered separately)

Maximum 4K Capability: 4096x2160 at 60 Hz, 4:4:4 chroma sampling, 8 bit maximum depth per color; also 3840x2160 at 60 Hz, 4096x2160 at 30 Hz and 3840x2160 at 30 Hz

Frame Rate: 24, 25, 30, 50, or 60 fps

Chroma Sampling: 4:4:4

Color Bit Depth: 8 bits per color (24 bits total, RGB)

Signal Type: HDMI 2.0, HDCP 2.3

Maximum Video Data Rate: 18 Gbps (6 Gbps per color)

HDMI Input: 1 female HDMI type A

HDMI Input Resolutions: Up to 4K (4096x2160) at 60 Hz with 24-bit color (8 bits per color) and 4:4:4 color sampling

HDMI Output: 1 female HDMI type A

SDRAM: 1 GB

Flash: 8 GB

Audio Output: 1 analog line level stereo, balanced or unbalanced (variable); 1 digital embedded in HDMI (fixed)

Audio Output Connectors: (1) 5 pole 3.5 mm captive screw; 1 female HDMI

Audio Output Impedance: 50 ohms unbalanced, 100 ohms balanced

Gain Error: ±0.5 dB, channel to channel

Maximum Level (Hi-Z): 15 dBu balanced, 9 dBu unbalanced

Output Volume Range: 0 to 100% in 1% steps

Serial Control: 1 bidirectional RS-232 on (1) 3.5 mm direct insertion captive screw connector, 3 pole

Baud Rate and Protocol (RS-232): 300 to 115200 baud (9600 default); 8 (default) or 7 data bits; 1 (default) or 2 stop bits; no parity (default), even or odd. Supports software flow control, default no flow control.

Serial Pin Configuration: RS-232: 1 = Tx, 2 = Rx, 3 = Gnd

IR Control: 1 programmable TTL level (0 to 5 V) infrared, carrier and non-carrier, up to 300 kHz, on (1) 3.5 mm direct insertion captive screw connector, 2 pole; pin 1 = signal, 2 = Gnd

IR Output Carrier Frequency: 30 kHz to 300 kHz

Digital Inputs/Outputs: 2 configurable digital inputs/outputs on (1) 3.5 mm captive screw, 3 pole; pins 1, 2, G

Digital Input Voltage Range: 0 to 24 VDC

Digital Input Impedance: ≥10k ohms typical

Programmable Pullup: 2k ohms to +5 VDC

Threshold Low to High: >2.8 VDC

Threshold High to Low: <2.0 VDC

Digital Outputs: 250 mA sink from 24 VDC max.

+24 V Output Port: (1) 3.5 mm captive screw connector, 2 pole; +24 VDC, 75 mA, fixed, non-switchable

Network Interface Controllers (NICs): 1

Ethernet Connector: 1 female RJ-45

Ethernet Data Rate: 10/100Base-T, half/full duplex with autodetect

Protocols: DHCP, DNS, HTTP, HTTPS, ICMP, NTP, SFTP, SMTP, SNMP, SSH, TCP/IP, UDP/IP

Default Network Settings: Link speed and duplex level autodetected; IP address 192.168.254.250; subnet mask 255.255.255.0; gateway 0.0.0.0; DHCP off; DNS 127.0.0.1

Configuration Software: Global Configurator Plus and Professional, embedded web page, Product Configuration Software

Programming Software: ControlScript and Deployment Utility and ControlScript extension for VS Code

Utilities: Toolbelt, embedded web page

Resource Management Software: GlobalViewer Enterprise

Control Apps: Extron Control

Hardware User Interfaces: TouchLink Pro touchpanels or network button panels

Power Supply (sold separately): External; input 100-240 VAC, 50-60 Hz; output 12 VDC, 1.5 A, 18 watts

Power Input: Power over Ethernet (PoE), complies with PoE 802.3af class 3

Power Consumption (PoE): Device 9.6 watts; device and power supply 12.6 watts

Power Consumption (12 VDC power supply): Device 7.6 watts; device and power supply 8.8 watts

Temperature/Humidity: Storage -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing; operating +32 to +104 °F (0 to +40 °C) / 10% to 90%, noncondensing

Cooling: Convection, vents on top and sides

Thermal Dissipation (PoE): Device 25.7 BTU/hr; device and power supply 35.7 BTU/hr

Thermal Dissipation (12 VDC power supply): Device 18.9 BTU/hr; device and power supply 23.0 BTU/hr

Rack Mount: Yes, with optional 1U rack shelf

Furniture Mount: Yes, with optional MBU 125 under-desk mounting kit (included)

Enclosure Type: Metal

Enclosure Dimensions: 1.0" H x 6.5" W x 3.0" D (25 mm H x 165 mm W x 76 mm D)

Product Weight: 0.5 lbs (0.23 kg)

Regulatory Compliance: CE, c-UL, UL, C-tick, FCC Class A, ICES, RoHS, WEEE. UL Listed for use in plenum air handling spaces. Meets UL 2043 for heat and smoke release.

Product Warranty: 3 years parts and labor

Everlast Power Supply Warranty: 7 years parts and labor

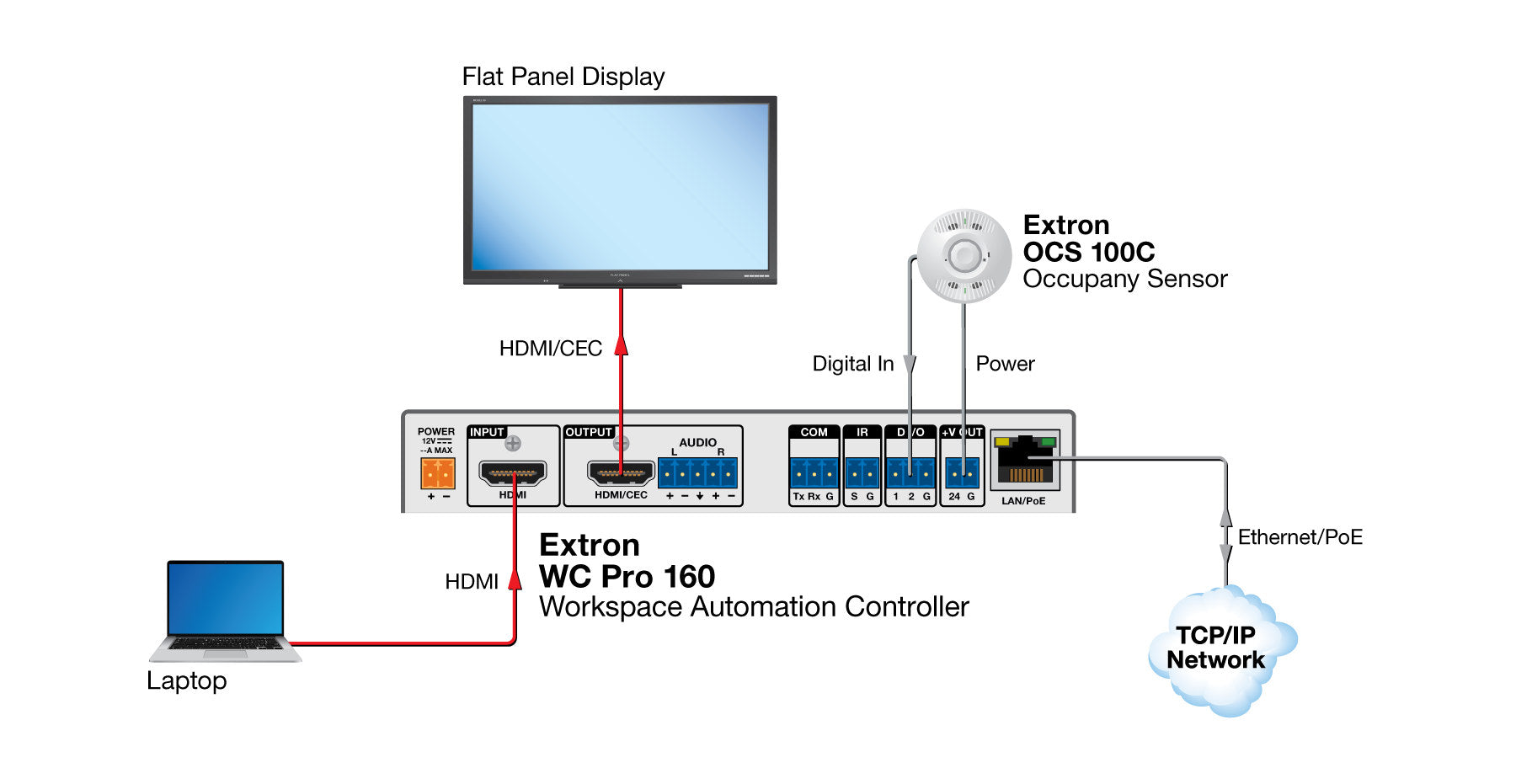

Diagram

Resources

Brochure | WC Pro 160 42-355-01 | WC Pro 160 (wc_pro_160_A2.pdf)

Brochure | WC Pro 160 42-355-01 | WC Pro 160 (wc_pro_160_revA2_SP.pdf)

Brochure | WC Pro 160 42-355-01 | WC Pro 160 (wc_pro_160_revA2_FR.pdf)

Brochure | WC Pro 160 42-355-01 | WC Pro 160 (wc_pro_160_revA2_IT.pdf)

Brochure | WC Pro 160 42-355-01 | WC Pro 160 (wc_pro_160_revA2_GE.pdf)

Brochure | WC Pro 160 42-355-01 | WC Pro 160 (WC_Pro_160_Rev_A2_CN_Online.pdf)

Manual | WC Pro 160 42-355-01 | Control Systems Network Ports, Protocols, and Licenses

Manual | WC Pro 160 42-355-01 | WC Pro 160 Setup Guide

Manual | WC Pro 160 42-355-01 | WC Pro 160 User Guide

Specifications | WC Pro 160 42-355-01 | WC PRO 160

Panel Drawing | WC Pro 160 42-355-01 | WC Pro 160

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Extron WC Pro 160 4K/60 Workspace Automation Controller 42-355-01

Name: Extron WC Pro 160 4K/60 Workspace Automation Controller 42-355-01
Brand: Extron
SKU: EXTRON-WCPRO160-4235501
Availability: InStock

Manufacturer: Extron

Type: Control and Automation

Extron WC Pro 160 Workspace Automation Controller

• Ships with the LinkLicense for WC Pro Control Processor upgrade included
• Passes 4096x2160 and 3840x2160 at 60 Hz with full 4:4:4 chroma sampling
• 18 Gbps maximum video data rate across HDMI 2.0 with HDCP 2.3
• EDID Minder handles EDID negotiation between source and display
• Display powers on automatically when an active HDMI signal appears
• Variable analog stereo output at 15 dBu balanced, 9 dBu unbalanced
• Only 9.6 watts on PoE 802.3af class 3, no local outlet needed
• Plenum rated metal enclosure, 1.0 x 6.5 x 3.0 inches, 0.5 lbs
