Extron WC Pro 150 OCS Workspace Automation Controller
- • Ships with the LinkLicense for WC Pro Control Processor upgrade included
- • Powers the display on and off automatically over CEC, no programming needed
- • Two PIR sensors plus one acoustic sensor cover 400 square feet
- • 142 degree horizontal by 24 degree vertical detection field of view
- • Inactivity timer adjusts from 1 second to 24 hours in the web page
- • Control ports sit on a hub 3 ft away, tucked behind the display
- • Runs on PoE 802.3af class 3 alone, so no outlet is required
- • Six inch enclosure at 0.53 lbs mounts on a bracket or 1/4-20 thread
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details
Extron WC Pro 150 OCS (part number 42-354-01) — the occupancy-sensing workspace automation controller, supplied with the LinkLicense for WC Pro Control Processor upgrade already applied.
A room that powers its own display costs nothing to operate and nothing to train users on. This controller watches the space with two passive infrared sensors and an acoustic sensor, and drives the display over CEC through its HDMI port the moment somebody walks in. Nothing has to be programmed for that to work. The built-in web page then lets a technician tune sensor sensitivity, set the inactivity timer anywhere from one second to 24 hours, and pick a single control path over Ethernet, RS-232 or IR. Because this is the 42-354-01 configuration, the WC Pro Control Processor LinkLicense is included, unlocking Global Configurator Plus and Professional for multi-device control and for TouchLink Pro touchpanels, Network Button Panels and IP Link Secure Platform devices.
Key Capabilities
- Dual sensing technology covers 400 square feet, with a 142 degree horizontal and 24 degree vertical field of view.
- CEC display control works out of the box; no configuration file is required for basic on and off behavior.

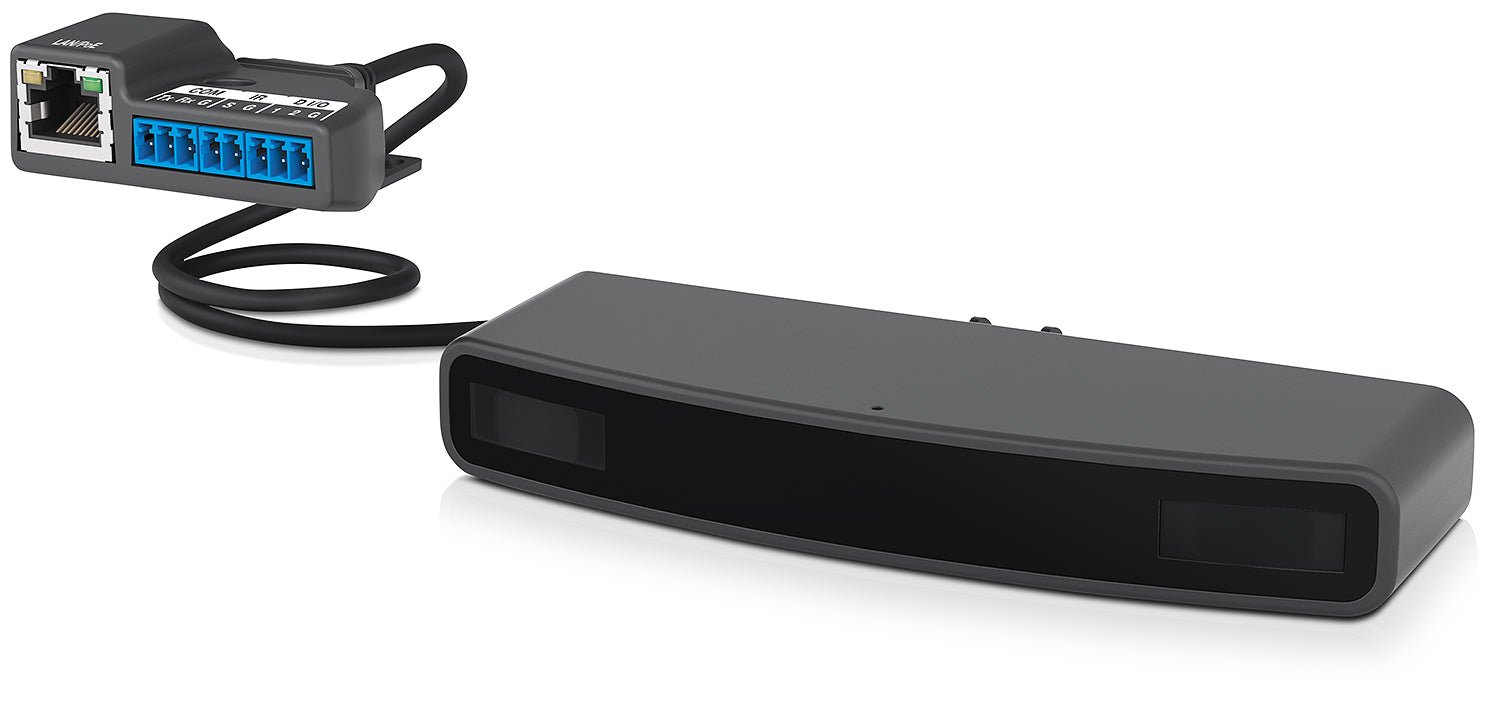

- All control ports live on an attached expansion hub tethered by a 3 foot cable, so they hide behind the display.
- Runs entirely on Power over Ethernet to 802.3af class 3, removing the need for a local outlet.
- 1 GB SDRAM and 8 GB flash back the LinkLicense-enabled Global Configurator workflow.

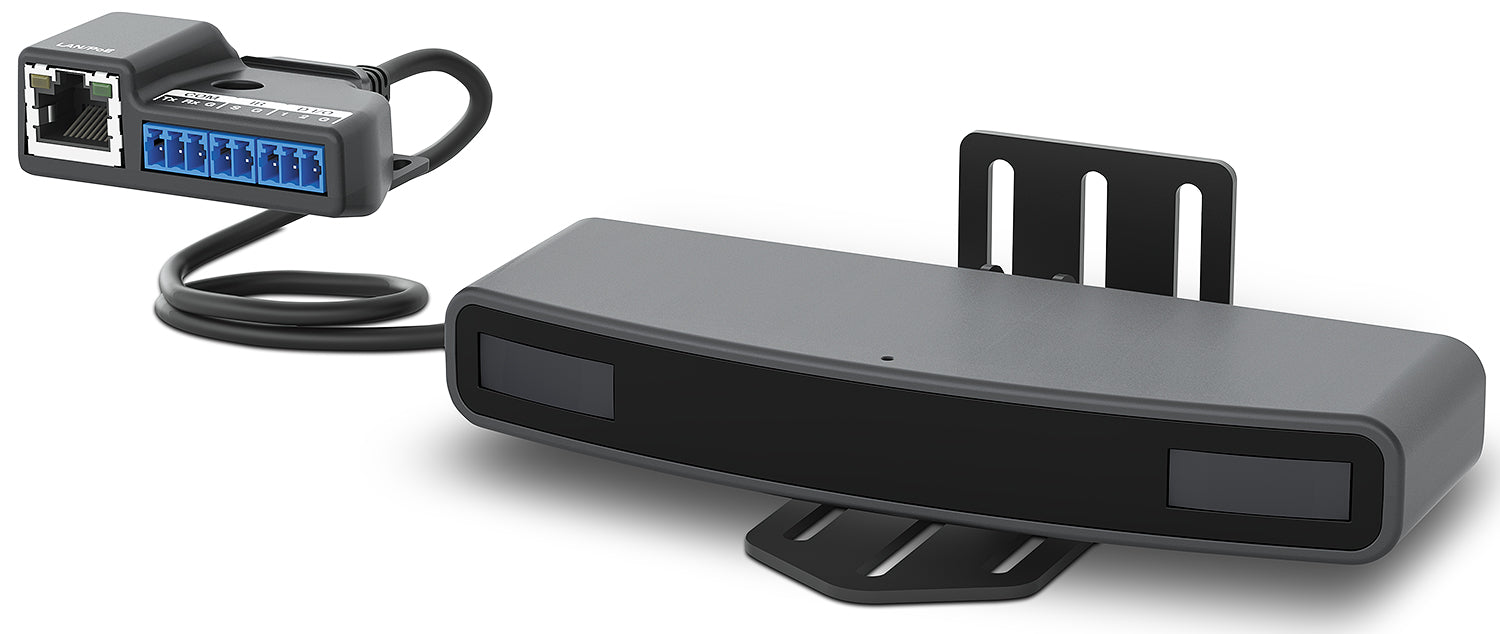

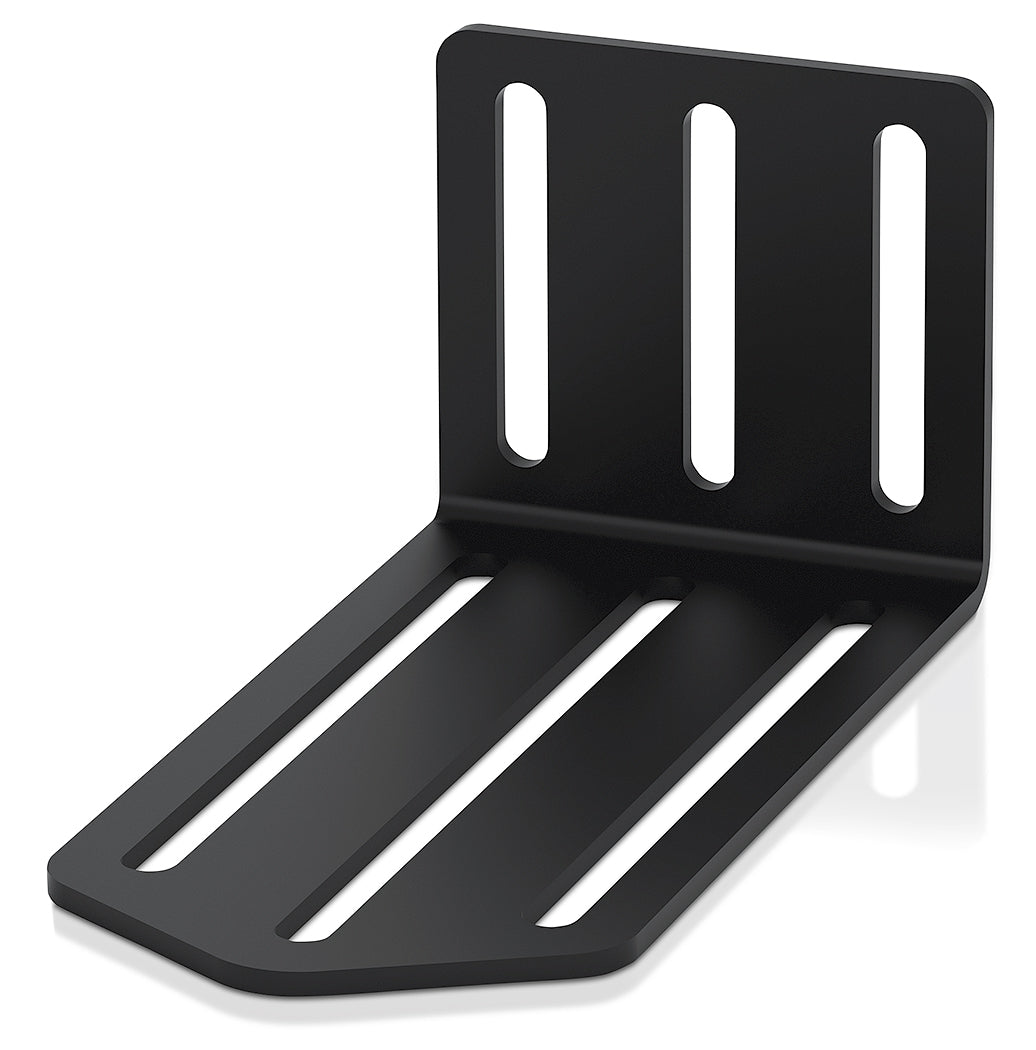

- Six inches long and 0.53 lbs, mountable on the supplied L-bracket or any 1/4"-20 accessory thread.
Where It Is Used

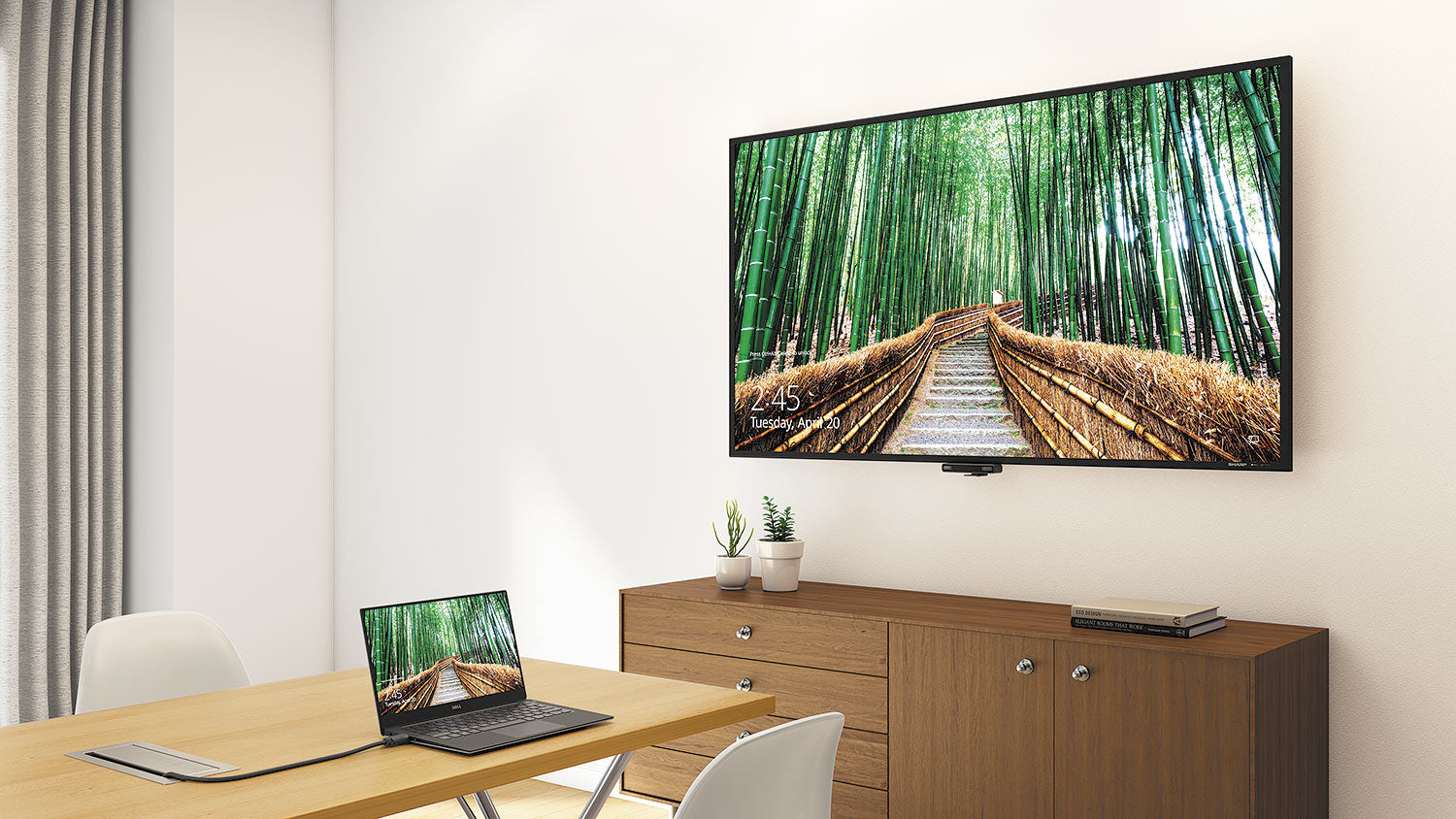

This is a fit for huddle rooms, small and medium conference rooms, classrooms and open collaboration areas where displays are routinely left running overnight. Facilities teams also use it in training rooms and clinical consult spaces to report room occupancy status on a digital output for scheduling or energy reporting.
Specifications at a Glance
- Sensors: 2 passive infrared plus 1 acoustic, 400 sq ft coverage

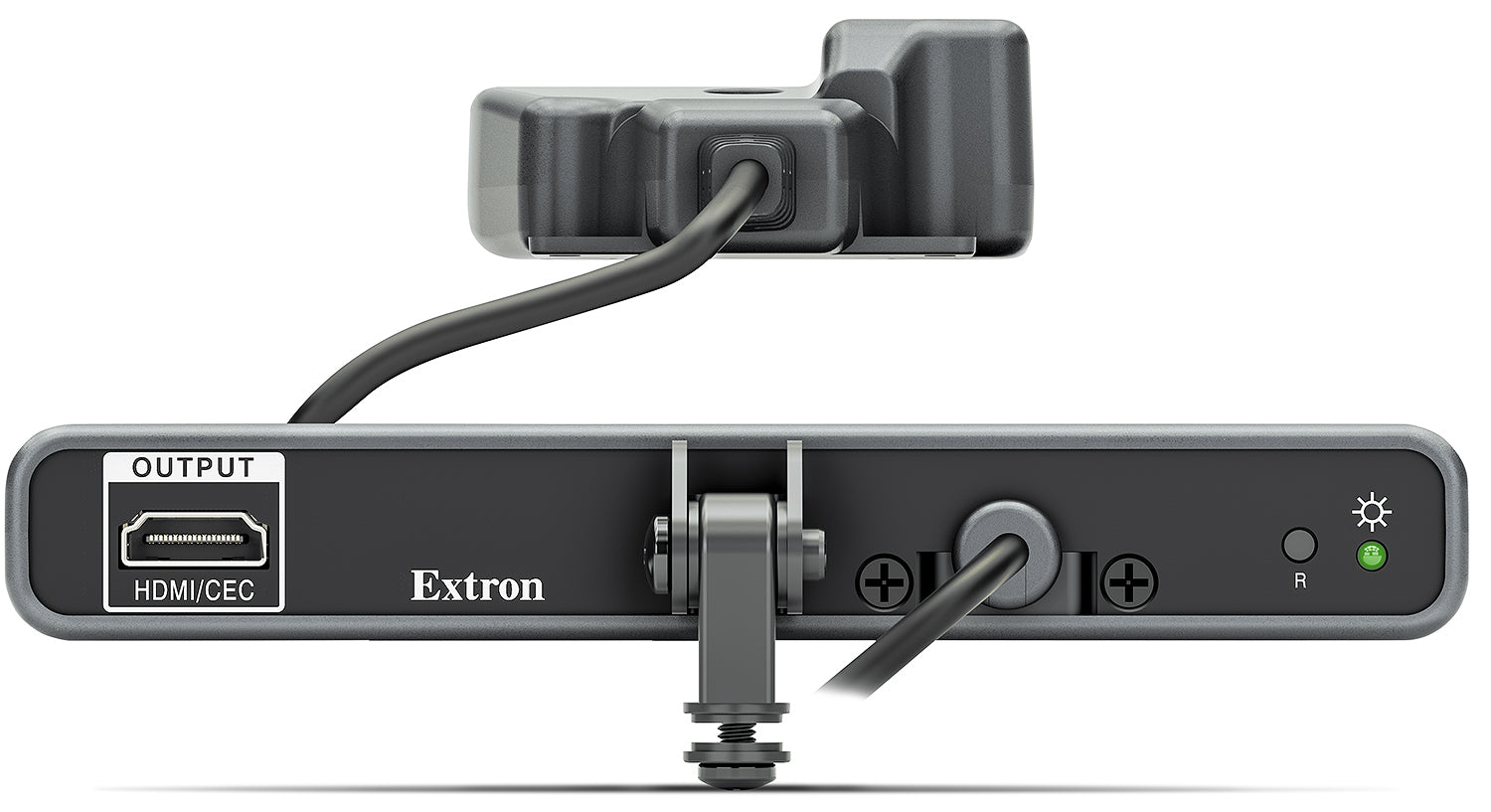

- Video: 1 female HDMI type A with CEC display control
- Control: 1 bidirectional RS-232, 1 IR output, 2 digital I/O, 1 RJ-45
- Power: Power over Ethernet only, 802.3af class 3
- Enclosure: 0.89" H x 6.00" L x 2.01" D, 0.53 lbs, 3 year warranty
Also referenced as Extron WCPro150OCS, WC-Pro-150-OCS, part number 4235401.
