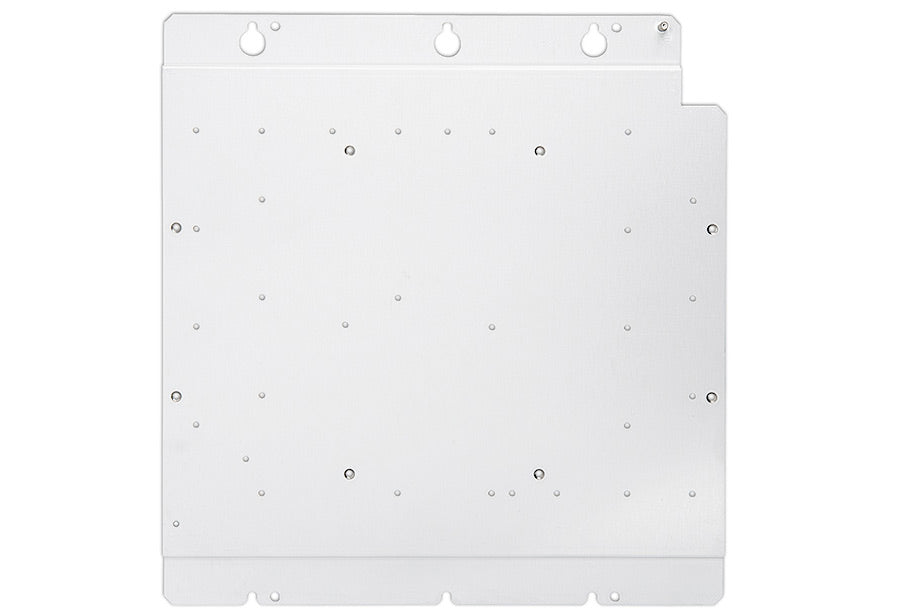

Extron WBA 100 (part number 70-1134-01) — a one-piece aluminium adapter plate for mounting AV components to a flat surface or inside a Chief PAC526 in-wall box.

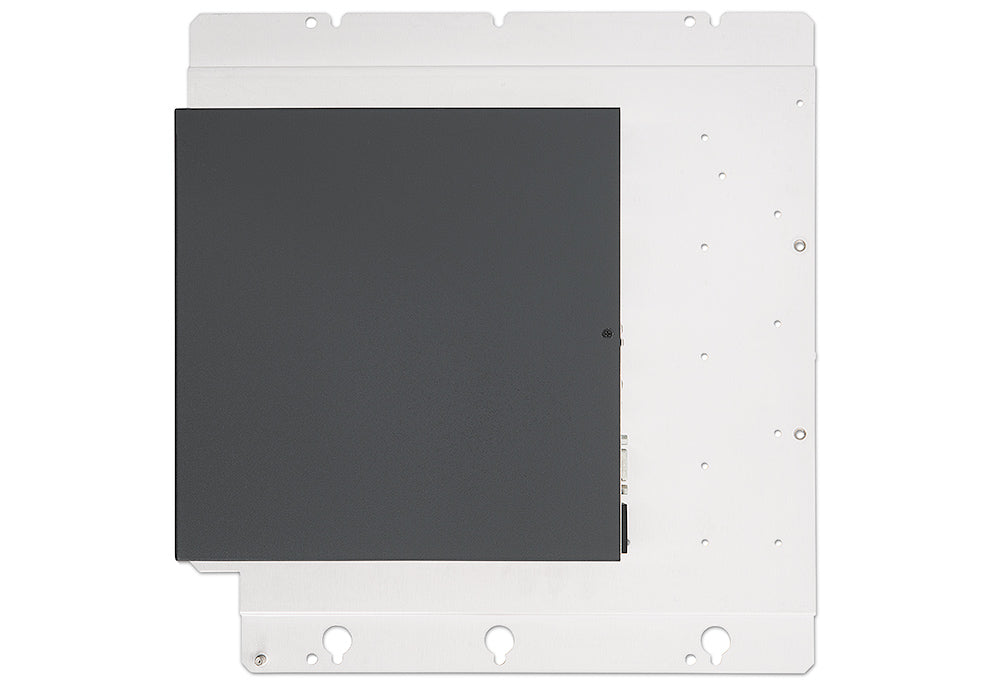

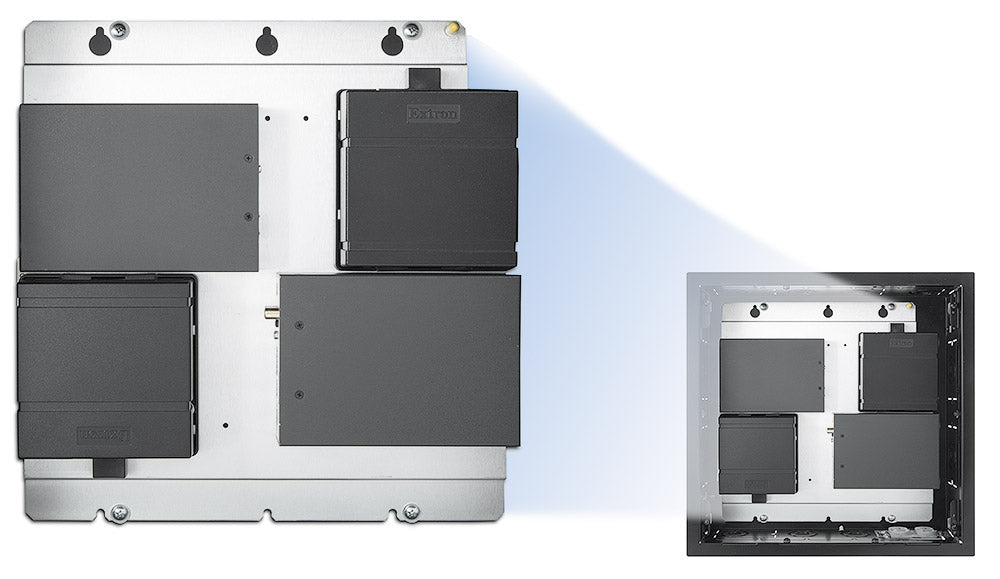

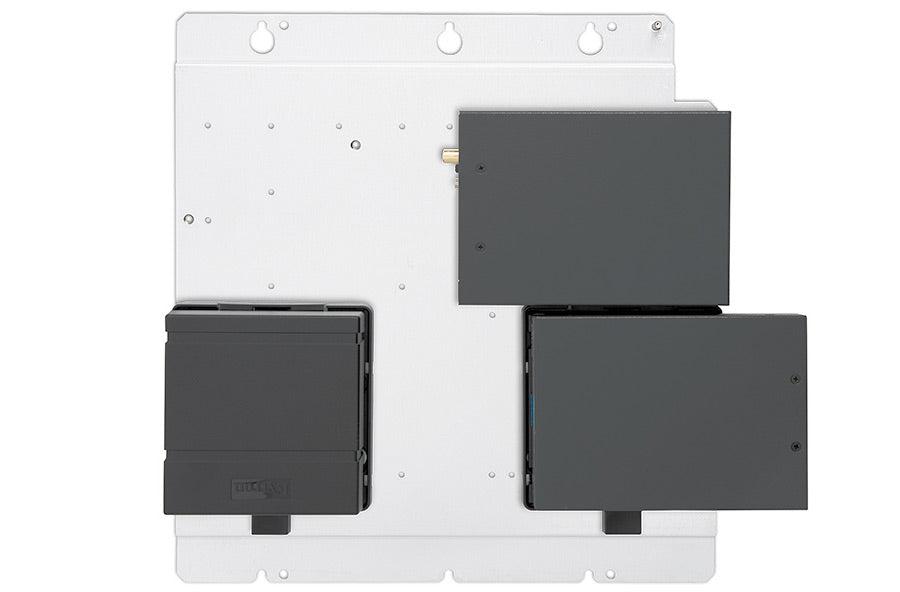

Flat panels and short-throw projectors put the source electronics somewhere awkward: on the wall, behind the display, often in a box cut into the plasterboard. The WBA 100 gives that equipment a proper home. Its 13.23 by 12.43-inch plate carries combinations of eighth-, quarter- and half-rack width Extron products — Extron cites DTP HDMI 4K 330 Rx extenders, PS Series desktop power supplies and SMD 202 decoders as examples — either bolted straight to the plate or clipped on with a ZipClip 200 mounting kit so a unit can be pulled for service without dismantling the wall. Because the plate is a single piece, a rack can be built and tested on the bench and then carried to site as one assembly, which is what makes it useful on jobs with tight install windows.

Key Capabilities

• Mounts to a flat surface or inside a Chief PAC526 in-wall box
• Large 13.23 x 12.43 in plate with wide mounting and cable-tie options
• Holds eighth-, quarter- and half-rack width Extron products
• Works with PS Series desktop power supplies and ZipClip 200 kits
• One-piece design allows off-site preconfiguration before install
• Aluminium, only 0.30 in thick and 0.75 lbs (0.4 kg)

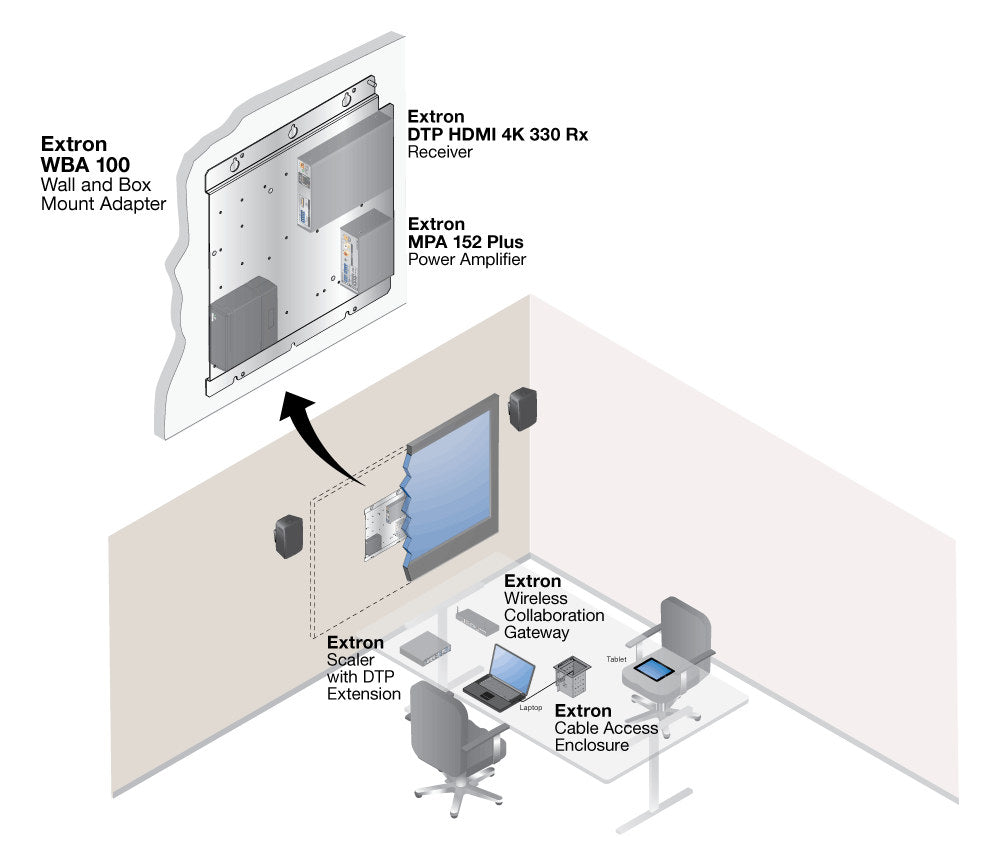

Where It Is Used

Behind flat panel displays and wall-mounted short-throw projectors in classrooms, huddle rooms, boardrooms, digital signage sites and clinical display installations, where the receiver, decoder and power supply need to sit close to the screen rather than in a distant rack.

Specifications at a Glance

• Model: Extron WBA 100, part number 70-1134-01
• Dimensions: 13.23 in L x 12.43 in W x 0.30 in H (33.6 x 31.6 x 0.8 cm)
• Weight: 0.75 lbs (0.4 kg); aluminum
• Mounting: flat surface or Chief PAC526 In-Wall Box
• Safety CE, RoHS and WEEE; 3 years parts and labor warranty

Also referenced as Extron WBA100, WBA-100, part number 70113401.
