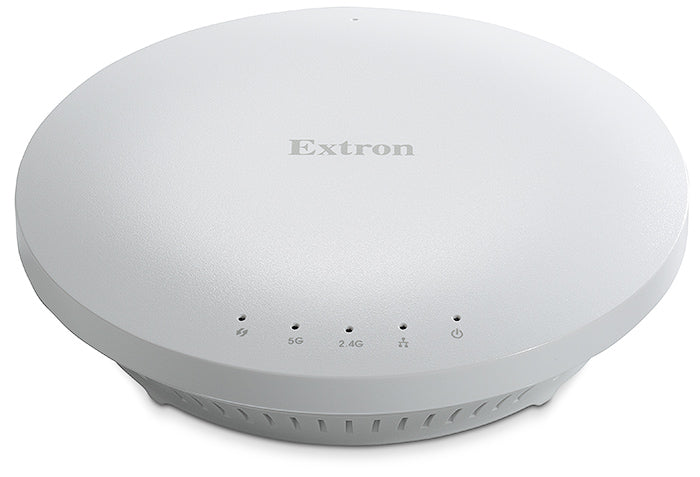

Extron WAP 100AC US (part number 60-1635-01) — dual-band AC1200 ceiling-mount wireless access point for the US market.

This access point gives integrators a single Ethernet-cable solution for both power and data, running IEEE 802.11b/g/n on 2.4 GHz and 802.11a/n/ac on 5 GHz concurrently through four internal antennas. Band steering and support for up to eight SSIDs per radio let one unit serve dense meeting-room and classroom networks without added hardware, while PoE+ (802.3at) input removes the need for a local power outlet at the mount point.

Key Capabilities

Dual-radio concurrent 2.4 GHz and 5.0 GHz operation with 4 internal 5 dBi antennas
Max data rates of 300 Mbps on 2.4 GHz and 867 Mbps on 5.0 GHz
Up to 8 SSIDs per radio for guest, staff, and control-system network separation
Powered by PoE+ (IEEE 802.3at) or 12 VDC, drawing 15.77 watts
WEP, WPA/WPA2 PSK, and WPA/WPA2 Enterprise security modes
Compact 1.64 x 6.36 x 6.36 in plastic enclosure at 0.62 lb

Where It Is Used

Suited to US boardrooms, huddle spaces, classrooms, and lecture halls where staff and visitor devices, plus tablets running the Extron Control App, need reliable wireless access alongside a wired AV control system. Ceiling or T-rail mounting keeps the access point out of the way in finished spaces.

Specifications at a Glance

Standards: IEEE 802.11b/g/n (2.4 GHz), 802.11a/n/ac AC wave 1 (5 GHz)
Ethernet: 1 x RJ-45, 10/100/1000Base-T with autodetect
Power: PoE+ or 12 VDC 2.0 A, 15.77 W consumption
Operating range: +32 to +104 F, 10-90% noncondensing
Warranty: 3 years parts and labor

Also referenced as Extron WAP100ACUS, WAP-100AC-US, part number 60163501.

Specifications

Part Number: 60-1635-01

Manufacturer: Extron

Model: WAP 100AC US

Condition: New

Standards: IEEE 802.11b/g/n on 2.4 GHz; IEEE 802.11a/n/ac on 5 GHz, AC wave 1

Security: 64/128/152-bit WEP, WPA PSK, WPA2 PSK, WPA Enterprise, WPA2 Enterprise

Antennae: Four internal omni-directional antennae, 5 dBi on 2.4 GHz and 5.0 GHz

Operating Frequency: Dual-radio concurrent 2.4 GHz and 5.0 GHz

2.4 GHz Band: 2400 MHz - 2835 MHz

5.0 GHz Band: 5180-5240 MHz, 5260-5320 MHz, 5500-5700 MHz, 5745-5825 MHz

Supported Data Rates: 2.4 GHz: max 300 Mbps; 5.0 GHz: max 867 Mbps

Transmit Power: Up to 26 dBi on 2.4 and 5 GHz, limited by regulatory power

Radio Chains / Spatial Streams: 2x2:2

Multiple SSID: Up to 8 SSIDs per radio

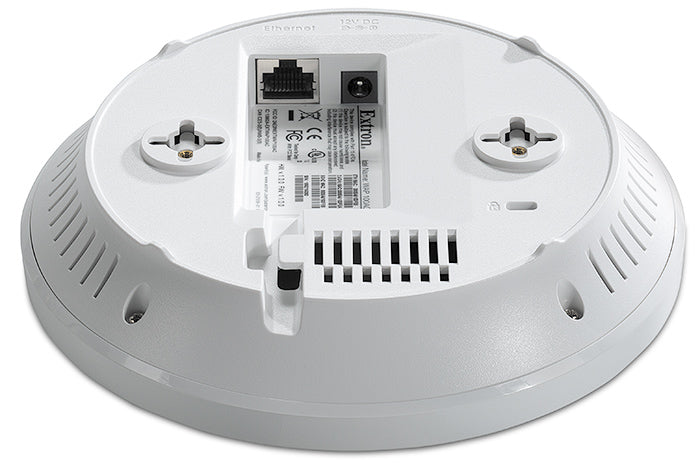

Ethernet Port: 1 female RJ-45 connector

Ethernet Data Rate: 10/100/1000Base-T, half/full duplex with autodetect

Program Control: Web interface (HTTP)

Management: SNMP v1, v2c, v3; MIB I/II and private MIB; VLAN tag/pass-through; IEEE 802.11e QoS/WMM

Memory: 128 MB RAM, 16 MB flash

Power Input Requirements: Power over Ethernet (IEEE 802.3at) or 12 VDC, 2.0 A max

Power Consumption: 15.77 watts

Power Supply: Not provided

Operating Temperature: +32 to +104 F (0 to +40 C), 10% to 90% noncondensing

Storage Temperature: -4 to +140 F (-20 to +60 C), 10% to 90% noncondensing

Cooling: Convection, vents on rear and sides

Mounting: Ceiling or wall mount with included screw kit; T-rail ceiling mount kit

Enclosure Type: Plastic

Enclosure Dimensions: 1.64 in H x 6.36 in W x 6.36 in D (4.17 x 16.15 x 16.15 cm)

Product Weight: 0.62 lb (0.28 kg)

Safety Certification: CE, c-UL, UL

EMI/EMC Certification: CE, FCC Class B, ICES

Environmental: RoHS and WEEE compliant

Warranty: 3 years parts and labor

Diagram

Resources

Brochure | WAP 100AC US 60-1635-01 | WAP 100AC

Manual | WAP 100AC US 60-1635-01 | Cleaning Instruction Card

Manual | WAP 100AC US 60-1635-01 | WAP 100AC Setup Guide

Manual | WAP 100AC US 60-1635-01 | WAP 100AC User Guide

Specifications | WAP 100AC US 60-1635-01 | WAP 100AC

Panel Drawing | WAP 100AC US 60-1635-01 | WAP 100AC
