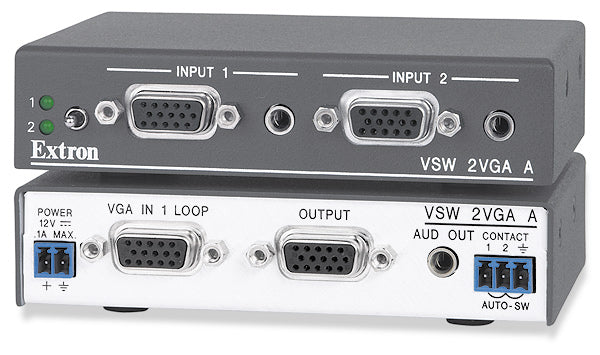

The Extron VSW 2VGA A (60-758-01) is a two-input VGA-QXGA switcher with stereo audio designed to route a pair of computer or component video sources to a single display or projector. Each of its 15-pin HD inputs accepts RGBHV, RGBS, RGsB, RsGsBs or HDTV component video up to QXGA resolution across a 300 MHz bandwidth, and the unit passes the matching stereo audio channel along with the selected video signal.

Rooms with a single display but two source computers force users to swap VGA cables by hand, which wastes meeting time and wears out connectors. The VSW 2VGA A solves this by autoswitching to whichever input carries an active TTL sync signal on pin 13, or by accepting manual selection through a 3-pole 3.5 mm contact closure port, so the correct source and its audio appear on screen without anyone touching a cable.

Key Capabilities

• Switches 2 VGA-QXGA video inputs with paired stereo audio to 1 output
• Autoswitches on TTL sync detection or via remote contact closure
• Local monitor loop-through lets a technician preview the unselected input
• 300 MHz (-3 dB) bandwidth passes resolutions up to QXGA cleanly
• Audio path holds 0.002% THD+N and 94 dB signal-to-noise

Where It Is Used

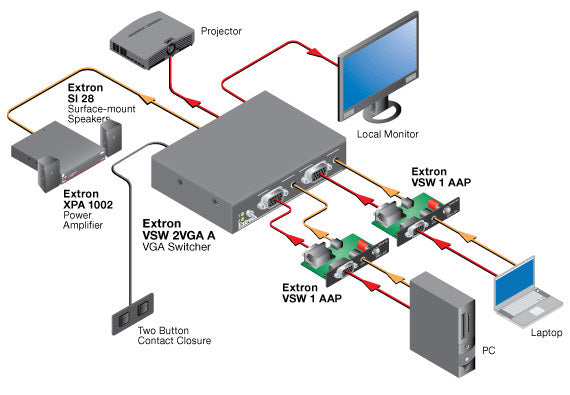

Integrators install the VSW 2VGA A in boardrooms, huddle spaces, classrooms and lecture halls where two laptops or desktop computers need to share one projector or monitor without a control processor. Its quarter-rack metal enclosure mounts in a rack shelf, under a table, through a desk, or on a pole, making it a practical fit for both AV racks and furniture-integrated installs.

Specifications at a Glance

• Inputs: 2 VGA-QXGA (15-pin HD) with stereo audio
• Output: 1 VGA-QXGA (15-pin HD), follows selected input
• Bandwidth: 300 MHz (-3 dB)
• Audio: unbalanced stereo, 20 Hz-20 kHz frequency response
• Enclosure: 1.0" H x 4.3" W x 3.0" D, 0.5 lb, external power supply

Also referenced as VSW2VGAA, VSW-2VGA-A, part number 6075801.
