Extron VNM EC 201 60-1864-01

Extron VNM EC 201 VN-Matrix Enterprise Controller 60-1864-01

Extron VNM EC 201 VN-Matrix Enterprise Controller 60-1864-01

Manufacturer: Extron

Type: Streaming AV Products

Extron VNM EC 201 Enterprise Controller

  • • Adds HDMI, DisplayPort, and VGA troubleshooting video outputs vs VNM EC 200
  • • USB 3.0 rear port plus USB 2.0 for peripherals, 900mA/500mA available power
  • • Runs Red Hat Linux Enterprise 7.4 on an Intel Celeron J1900 platform
  • • Dual Gigabit Ethernet control ports, 10/100/1000Base-T
  • • 16W typical power consumption, 35.1 BTU/hr thermal dissipation
  • • Everlast power supply backed by a 7-year parts and labor warranty

Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!

SKU: EXTRON-VNMEC201-60186401

Details

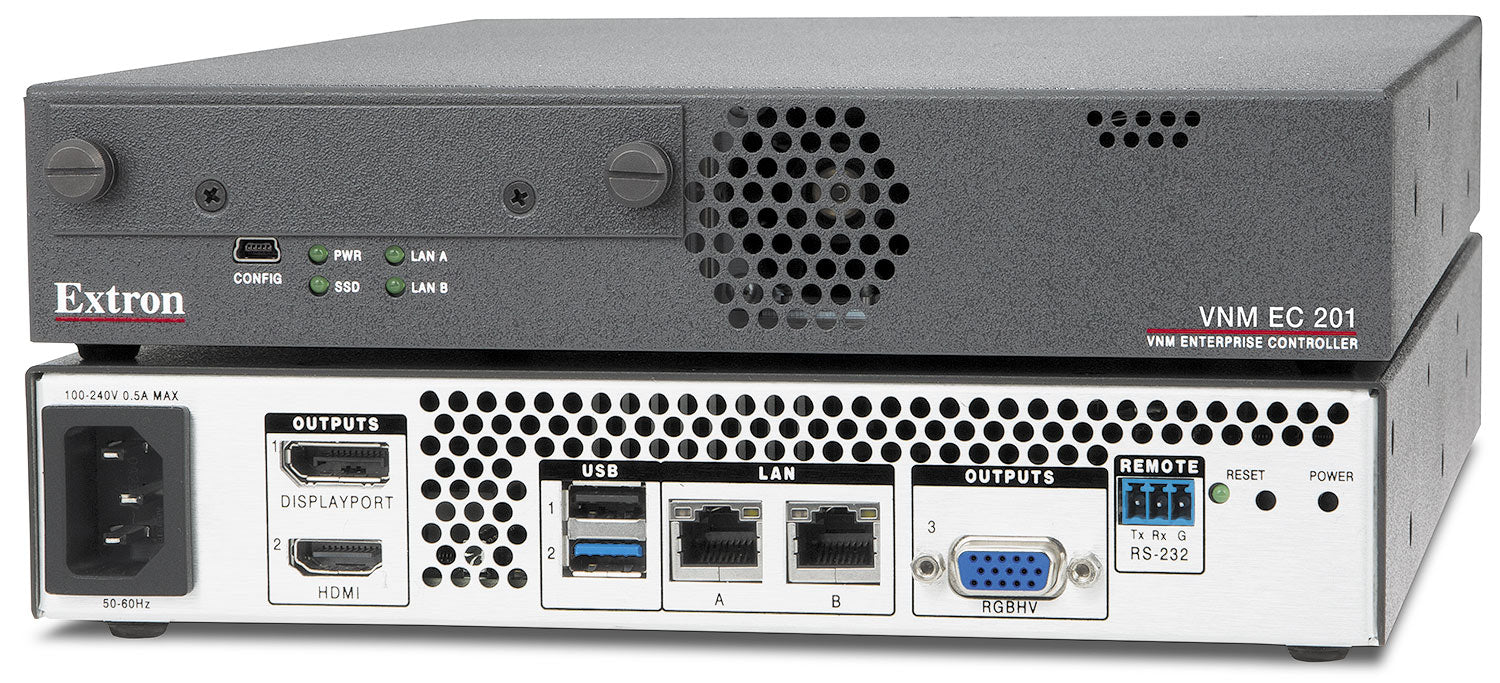

Extron VNM EC 201 (part number 60-1864-01) — an updated VN-Matrix enterprise controller that adds local HDMI, DisplayPort, and VGA troubleshooting video output to the enterprise-controller platform.

Like its predecessor, VNM EC 201 groups VN-Matrix devices for bulk configuration and firmware distribution, and builds streaming and recording presets that external control systems can recall. Where it differs is at the panel: a built-in Intel HD graphics chip drives HDMI, DisplayPort, or VGA output so a technician can attach a monitor directly to the controller for troubleshooting, and rear-panel USB 3.0 joins USB 2.0 for faster peripheral connections. Running Red Hat Enterprise Linux 7.4, it draws a typical 16 watts and dissipates 35.1 BTU/hr.

Key Capabilities

  • Adds HDMI, DisplayPort, and VGA troubleshooting video outputs
  • USB 3.0 rear port plus USB 2.0, delivering 900 mA / 500 mA respectively
  • Runs Red Hat Enterprise Linux 7.4 on an Intel Celeron J1900 platform
  • Dual Gigabit Ethernet control ports, 10/100/1000Base-T
  • Everlast power supply backed by a 7-year parts and labor warranty

Where It Is Used

VNM EC 201 is specified anywhere VNM EC 200 would be used, with the added benefit of local video troubleshooting for technicians who need to work directly at the controller without a remote session.

Specifications at a Glance

  • Intel Celeron J1900 processor, 2M cache, up to 2.42 GHz, 8W
  • (2) 2 GB non-ECC DDR3 RAM, removable 80 GB SATA storage
  • 1.66" H x 8.7" W x 11.97" D, 1U half rack wide, 3.4 lb
  • 16 W typical power consumption, 35.1 BTU/hr thermal dissipation
  • 3-year product warranty; Everlast power supply carries a 7-year warranty

Also referenced as Extron VNMEC201, VNM-EC-201, part number 601864-01.
