Extron VNM 12 PS Power Supply
- • Extron VNM 12 PS VN-Matrix 12-unit power supply
- • 700 W output on a single 12 VDC rail
- • Two 350 W modules feed the 12 VDC rail
- • Sales, replacement and exchange
- • Part# 70-763-01 / 7076301
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

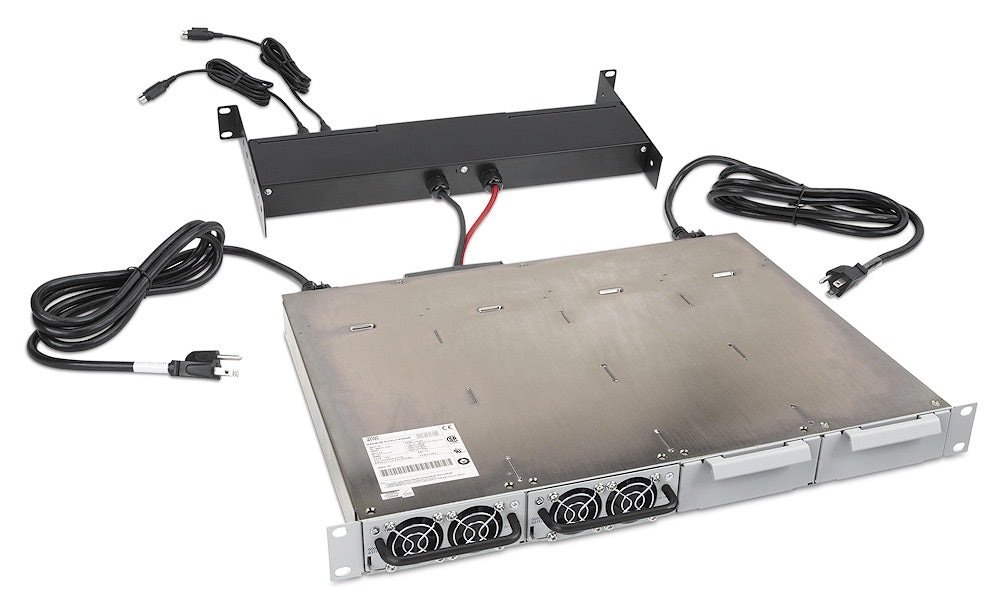

Extron VNM 12 PS (part number 70-763-01) - an external 12 VDC power supply that feeds up to 12 VN-Matrix codecs from a single 1U rack-mount enclosure.
Drawing 90 to 264 VAC at 47-400 Hz, VNM 12 PS delivers 875 watts of full power through two 350-watt modules onto a single 12 VDC rail, rated for 700 watts of continuous output. The supply requires a minimum 3 A load with at least two Extron VN-Matrix codecs connected, and includes continuous short-circuit protection with auto recovery plus thermal protection that disables the DC output if the unit overheats. Front-panel-drawn fan cooling and integrated rack mounting brackets keep the unit self-contained in a standard 19" rack alongside the codecs it powers.
Key Capabilities
- 875W full power input delivers 700W on a single 12 VDC rail
- Powers up to 12 VN-Matrix codecs from one external supply
- (2) 350W modules feed the 12 VDC output rail
- Continuous short-circuit protection with auto recovery
- Front-panel fan cooling and integrated mounting brackets for 1U rack installation
Where It Is Used

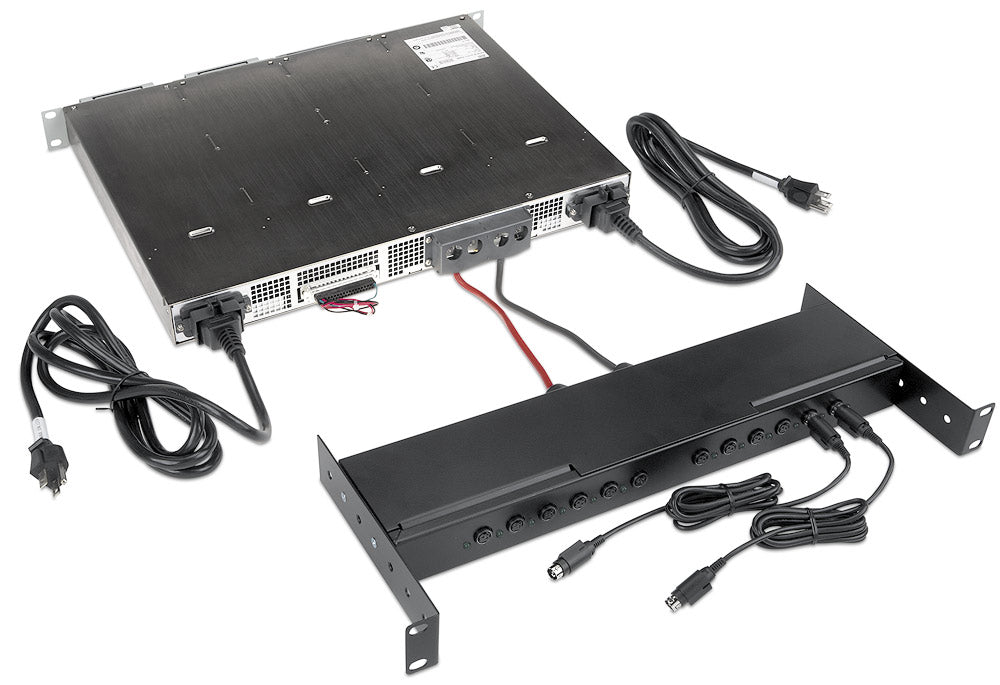

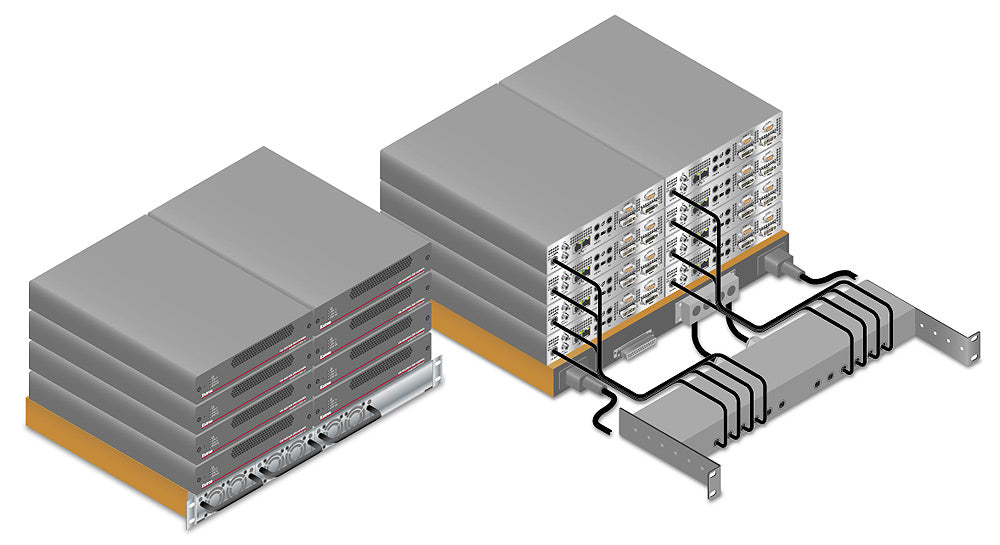

VNM 12 PS centralizes power for VN-Matrix codec racks in command centers and AV distribution rooms, replacing individual power bricks per codec with a single rack-mounted supply and a rear breakout connection.
Specifications at a Glance
- 90-264 VAC universal input, 875 W full power, 700 W 12 VDC output
- 1.75" H x 17.4" W x 13.0" D, 1U high full rack wide
- 8.6 lb product weight, 33 lb shipping weight
- Storage rated -40 to +185 °F, operating +32 to +122 °F
- 3-year parts and labor warranty
Also referenced as Extron VNM12PS, VNM-12-PS, part number 70763-01.
Model: 70-763-01 / 7076301
Frequently asked questions about the Extron VNM 12 PS VN-Matrix 12-Unit Power Supply
Does Ampronix sell the Extron VNM 12 PS VN-Matrix 12-Unit Power Supply?
Yes. Ampronix is an authorized Extron distributor and sells the Extron VNM 12 PS VN-Matrix 12-Unit Power Supply (70-763-01). Call Ampronix for a quote.
Does Ampronix offer replacement and exchange for the Extron VNM 12 PS VN-Matrix 12-Unit Power Supply?
Yes. Ampronix provides sales, replacement and exchange for the Extron VNM 12 PS VN-Matrix 12-Unit Power Supply. Call Ampronix for a quote.
What are the key features of the Extron VNM 12 PS VN-Matrix 12-Unit Power Supply?
Key points: 875W full power input delivers 700W on a single 12 VDC rail; Powers up to 12 VN-Matrix codecs from one external supply; (2) 350W modules feed the 12 VDC output rail; Continuous short-circuit protection with auto recovery. Call Ampronix to confirm details for your application.
