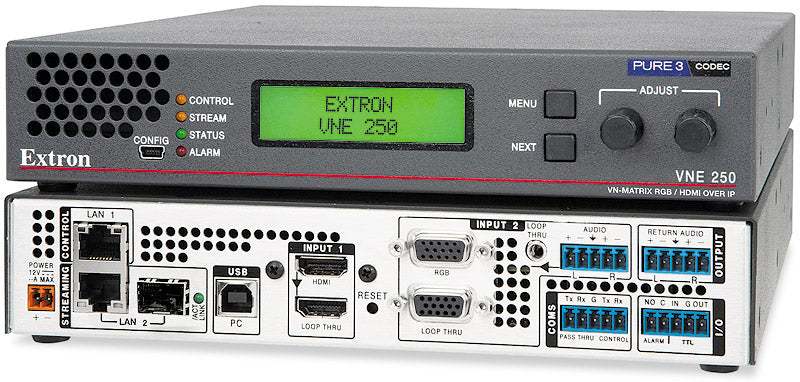

Extron VNE 250 (part number 60-1274-01) — the encoder half of the VN-Matrix 250 series, compressing an RGBHV/RGsB or HDMI/DVI source into a Pure3 CODEC stream for distribution over standard IP infrastructure.

VNE 250 accepts either an analog RGBHV/RGsB input or an HDMI/DVI digital input, each with an actively buffered loop-through so the local display keeps showing the source at full resolution while the network gets the compressed feed. Program audio comes in through an analog stereo input with loop-through or de-embedded from HDMI, and a return audio output path carries talkback-style audio back from the decode side. A dedicated streaming LAN keeps compressed video traffic separate from a second control LAN used for configuration and management.

Key Capabilities

Encodes RGBHV/RGsB analog or HDMI/DVI digital sources up to 2048x1080
Actively buffered analog and digital loop-through outputs at the source
35 ms nominal latency (70 ms encode/decode round trip) with Pure3 CODEC
Adjustable bit rate from 1 to 270 Mbps for network bandwidth control
Analog and HDMI-embedded audio input plus a return audio output path

Where It Is Used

VNE 250 is deployed at the source end of command and control centers, operations rooms, and video wall systems, converting a workstation's analog or digital output into a Pure3 stream that any paired VND 250 decoder can display over the network.

Specifications at a Glance

1 RGBHV/RGsB analog input plus 1 HDMI/DVI digital input, each with loop-through
Pure3 CODEC compression, 1-270 Mbps adjustable bit rate
1U half-rack metal enclosure, 2.4 lbs, 21.9 W device power draw
Dual-LAN design: separate streaming (LAN 2) and control (LAN 1) networks
3-year parts and labor warranty

Also referenced as Extron VNE250, VNE-250, part number 601274-01.

Specifications

Part Number: 60-1274-01

Manufacturer: Extron

Model: VNE 250

Condition: New

Video Input – Analog: 1 RGBHV/RGsB input plus 1 actively buffered RGBHV/RGsB loop-through, 2 female 15-pin HD connectors; 0.7 Vp-p RGB, 2.75-5.0 Vp-p RGBHV sync, 0.3 Vp-p RGsB sync; 2k ohms RGBHV / 75 ohms RGsB impedance; 15 kHz-100 kHz horizontal, 50-85 Hz vertical frequency

Video Input – Digital: 1 HDMI/DVI single link (HDCP compliant) plus 1 actively buffered HDMI/DVI loop-through, RGB or YCrCb, female HDMI type A connector

Input Resolution Range: VESA 640x480p to 2048x1080p @ 60 Hz; SMPTE 480p/720p/1080i/1080p @ 23.98 to 60 Hz

Video Standards: HDMI, DVI 1.0, HDCP, EDID v2.0

Video Processing: 24-bit digital and analog sampling, 8 bits per color, 165 MHz; 16.78 million colors; Pure3 CODEC compression; 35 ms nominal latency (70 ms encode/decode); 1-270 Mbps adjustable bit rate

Bit Rate Control: Selectable (None, Manual frame drop, Peak flow rate, Peak bit rate, or Peak bit rate with real-time adaptive frame dropping)

Program Audio – Analog Input with Loop-Through: 1 analog stereo line-level balanced/unbalanced input, 1 analog stereo unbalanced loop-through; (1) 5-pole 3.5 mm captive screw input, 3.5 mm mini stereo jack loop-through; >20k ohms balanced / >10k ohms unbalanced impedance; +4 dBu balanced / -10 dBV unbalanced nominal; +18 dBu @ 1% THD+N maximum; 16-bit, 48 kHz sampling

Program Audio – HDMI Input with Loop-Through: 1 digital stereo de-embedded from HDMI, 2-channel PCM only, 2 female HDMI type A (shared with digital video input); 24-bit, 32/44.1/48 kHz sampling

Return Audio Output: 1 analog stereo line-level balanced/unbalanced output, (1) 5-pole 3.5 mm captive screw connector; 100 ohms balanced / 50 ohms unbalanced impedance; +4 dBu balanced / -10 dBV unbalanced nominal; +18 dBu @ 1% THD+N maximum

Serial Control: 1 bidirectional RS-232 for low-level configuration, 3 poles of a 5-pole 3.5 mm captive screw connector, 115200 baud 8-N-1

Serial Pass-Through: 1 bidirectional RS-232, transparent pass-through of external RS-232 data, user-configurable up to 115200 baud

USB Configuration: 1 front panel female mini USB-B, USB 2.0 480 Mbps, SIS configuration subset only

USB Host Ports: 1 USB 1.1, 1 USB 1.1 type-B female connector, low speed 1.5 Mbps / full speed 12 Mbps

TTL: Not implemented

System Control: Extron VNM Enterprise Controller, Extron VN-Matrix Web Server, Extron HLI command protocol

Network – Streaming (LAN 2): 100/1000 Mbps auto sensing, SFP or RJ45 connector, default IP 192.168.254.254/24; RTP/RTCP streaming, TCP/UDP/Multicast-UDP transport

Network – Control (LAN 1): 10/100 Mbps auto sensing, shielded RJ45, default IP 192.168.253.254/24; TCP/UDP transport

Power Supply: External, Input 100-240 VAC 50-60 Hz, Output 12 VDC 2.5 A 30 W, 2-pole captive screw connector

Power Consumption: 21.9 W device; 24.9 W device and power supply

Thermal Dissipation: 72.5 BTU/hr device; 82.7 BTU/hr device and power supply

Temperature/Humidity: Storage -40 to +158 °F (-40 to +70 °C) 10-90% noncondensing; Operating +32 to +122 °F (0 to +50 °C) 10-85% noncondensing

Cooling: Fan, vented front to back

Mounting: Rack mount (optional rack shelf); desk mount (optional under-desk and through-desk kits)

Enclosure Type: Metal

Enclosure Dimensions: 1.66" H x 8.75" W x 9.96" D, 1U high half rack wide (4.2 x 22.2 x 25.3 cm), depth excludes connectors and knob

Product Weight: 2.4 lb (1.1 kg)

Shipping Weight: 6 lb (3 kg)

Safety: CE, c-UL, UL

EMI/EMC: CE, C-tick, FCC Class A, ICES, VCCI

Environmental: Complies with the appropriate requirements of RoHS, WEEE

Warranty: 3 years parts and labor

Diagram

Resources

Brochure | VNE 250 60-1274-01 | VN-Matrix 250 Series (vnmatrix250series_revA.pdf)

Brochure | VNE 250 60-1274-01 | Everlast Power Supplies

Brochure | VNE 250 60-1274-01 | Alimentatori Everlast

Brochure | VNE 250 60-1274-01 | Everlast 电源

Brochure | VNE 250 60-1274-01 | Everlast-Netzteile

Brochure | VNE 250 60-1274-01 | Fuentes de alimentación Everlast

Brochure | VNE 250 60-1274-01 | Sources d'alimentation Everlast

Brochure | VNE 250 60-1274-01 | VN-Matrix 250 Series (vnmatrix250series_revA_cn.pdf)

Brochure | VNE 250 60-1274-01 | VN-Matrix 250シリーズ

Manual | VNE 250 60-1274-01 | Cleaning Instruction Card

Manual | VNE 250 60-1274-01 | VN-Matrix 250 Series User Guide

Manual | VNE 250 60-1274-01 | VN-Matrix 250 Setup Guide

Specifications | VNE 250 60-1274-01 | VN-Matrix 250 Series

Panel Drawing | VNE 250 60-1274-01 | VN-Matrix 250 Series
