Details

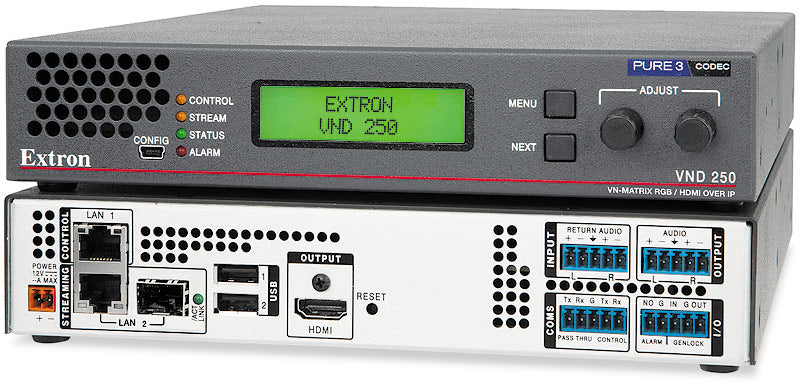

Extron VND 250 (part number 60-1275-01) — the decoder half of the VN-Matrix 250 series, turning a Pure3-encoded IP stream back into a single HDMI/DVI display signal.

VND 250 receives Pure3 CODEC video over a dedicated streaming LAN and outputs it over HDMI/DVI at resolutions up to 2048x1080, with selectable scaling and aspect-ratio handling so the picture fits whatever display is attached. A second, separate control LAN keeps configuration traffic off the video network. Beyond video, the decoder carries program audio to both an analog output and an HDMI-embedded output, accepts a return audio input for talkback-style paths, and exposes a USB 1.1 hub so a remote keyboard and mouse can control the source system from the display end.

Key Capabilities

Decodes VN-Matrix Pure3 CODEC streams to a single HDMI/DVI output up to 2048x1080
35 ms nominal latency (70 ms encode/decode round trip)
Adjustable bit rate from 1 to 270 Mbps for network bandwidth control
Analog and HDMI-embedded audio output plus a return audio input path
USB 1.1 device hub for remote keyboard and mouse control at the display

Where It Is Used

VND 250 is deployed in command and control centers, operations rooms, and video walls where computer sources need to reach remote displays and KVM workstations over standard IP infrastructure rather than dedicated video cabling.

Specifications at a Glance

1 HDMI/DVI output, HDCP compliant, up to 2048x1080 @ 60 Hz
Pure3 CODEC compression, 1-270 Mbps adjustable bit rate
1U half-rack metal enclosure, 2.4 lbs, 16.3 W device power draw
Dual-LAN design: separate streaming (LAN 2) and control (LAN 1) networks
3-year parts and labor warranty

Also referenced as Extron VND250, VND-250, part number 601275-01.

Specifications

Part Number: 60-1275-01

Manufacturer: Extron

Model: VND 250

Condition: New

Video Output: 1 HDMI/DVI (single link, HDCP compliant), RGB or YCrCb digital video, 1 female HDMI type A connector

Output Resolution Range: VESA 640x480p to 2048x1080p @ 60 Hz; SMPTE 480p/720p/1080i/1080p @ 23.98 to 60 Hz

Scaling Modes: Selectable (None, Scale to display, Scale to resolution range)

Aspect Ratio: Selectable (Fill, Follow)

Video Standards: HDMI, DVI 1.0, HDCP, EDID v2.0

Video Processing: 24-bit digital sampling, 8 bits per color, 165 MHz; 16.78 million colors; Pure3 CODEC compression; 35 ms nominal latency (70 ms encode/decode); 1-270 Mbps adjustable bit rate

Bit Rate Control: Selectable (None, Manual frame drop, Peak flow rate, Peak bit rate, or Peak bit rate with real-time adaptive frame dropping)

Program Audio – Analog Output: 1 stereo balanced/unbalanced, (1) 5-pole 3.5 mm captive screw connector; +4 dBu balanced / -10 dBV unbalanced nominal, +18 dBu @ 1% THD+N maximum; 20 Hz-20 kHz frequency response; 0.03% THD @ 1 kHz; >90 dB S/N; >80 dB channel separation @ 1 kHz

Program Audio – HDMI Output: 1 digital stereo de-embedded from HDMI, 2-channel PCM only, 2 female HDMI type A (shared with digital video); 24-bit, 32/44.1/48 kHz sampling

Return Audio Input: 1 analog stereo balanced/unbalanced, (1) 5-pole 3.5 mm captive screw connector; >20k ohms balanced / >10k ohms unbalanced impedance; +4 dBu balanced / -10 dBV unbalanced nominal, +18 dBu maximum; 16-bit, 24 kHz sampling

Serial Control: 1 bidirectional RS-232 for low-level configuration, 3 poles of a 5-pole 3.5 mm captive screw connector, 115200 baud 8-N-1

Serial Pass-Through: 1 bidirectional RS-232, transparent pass-through of external RS-232 data, user-configurable up to 115200 baud

USB Configuration: 1 front panel female mini USB-B, USB 2.0 480 Mbps, SIS configuration subset only

USB Device Ports: 1 USB 1.1 hub, 2 USB 1.1 type-A female connectors, low speed 1.5 Mbps / full speed 12 Mbps, 500 mA available power

Alarm Relay: 1 normally open SPST, 2 poles of a 5-pole 3.5 mm captive screw connector, max 125 V 60 W @ 2 A

Genlock: Locally generated master, loop in and loop out (1+1), TTL format, 3 poles of a 5-pole 3.5 mm captive screw connector

System Control: Extron VNM Enterprise Controller, Extron VN-Matrix Web Server, Extron HLI command protocol

Network – Streaming (LAN 2): 100/1000 Mbps auto sensing, SFP or RJ45 connector, default IP 192.168.254.254/24; RTP/RTCP streaming, TCP/UDP/Multicast-UDP transport

Network – Control (LAN 1): 10/100 Mbps auto sensing, shielded RJ45, default IP 192.168.253.254/24; TCP/UDP transport

Power Supply: External, Input 100-240 VAC 50-60 Hz, Output 12 VDC 2.5 A 30 W, 2-pole captive screw connector

Power Consumption: 16.3 W device; 18.5 W device and power supply

Thermal Dissipation: 54.5 BTU/hr device; 62.1 BTU/hr device and power supply

Temperature/Humidity: Storage -40 to +158 °F (-40 to +70 °C) 10-90% noncondensing; Operating +32 to +122 °F (0 to +50 °C) 10-85% noncondensing

Cooling: Fan, vented front to back

Mounting: Rack mount (optional rack shelf); desk mount (optional under-desk and through-desk kits)

Enclosure Type: Metal

Enclosure Dimensions: 1.66" H x 8.75" W x 9.96" D, 1U high half rack wide (4.2 x 22.2 x 25.3 cm), depth excludes connectors and knob

Product Weight: 2.4 lb (1.1 kg)

Shipping Weight: 6 lb (3 kg)

Safety: CE, c-UL, UL

EMI/EMC: CE, C-tick, FCC Class A, ICES, VCCI

Environmental: Complies with the appropriate requirements of RoHS, WEEE

Warranty: 3 years parts and labor

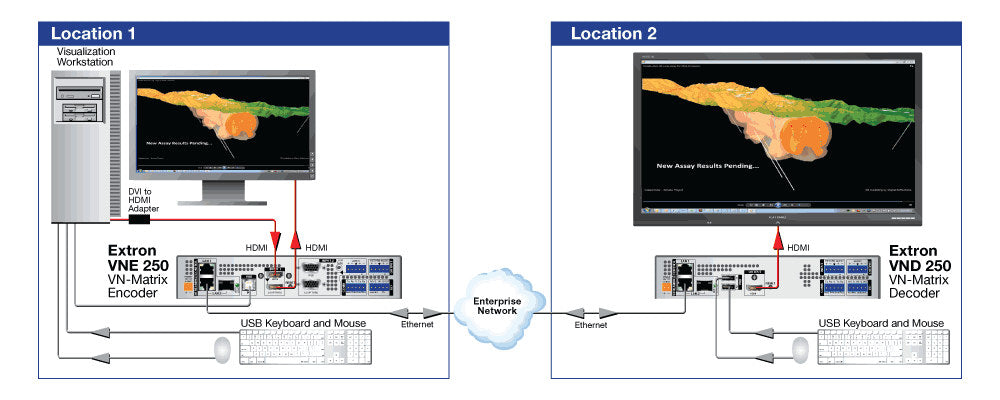

Diagram

Resources

Brochure | VND 250 60-1275-01 | VN-Matrix 250 Series (vnmatrix250series_revA.pdf)

Brochure | VND 250 60-1275-01 | Everlast Power Supplies

Brochure | VND 250 60-1275-01 | Alimentatori Everlast

Brochure | VND 250 60-1275-01 | Everlast 电源

Brochure | VND 250 60-1275-01 | Everlast-Netzteile

Brochure | VND 250 60-1275-01 | Fuentes de alimentación Everlast

Brochure | VND 250 60-1275-01 | Sources d'alimentation Everlast

Brochure | VND 250 60-1275-01 | VN-Matrix 250 Series (vnmatrix250series_revA_cn.pdf)

Brochure | VND 250 60-1275-01 | VN-Matrix 250シリーズ

Manual | VND 250 60-1275-01 | Cleaning Instruction Card

Manual | VND 250 60-1275-01 | VN-Matrix 250 Series User Guide

Manual | VND 250 60-1275-01 | VN-Matrix 250 Setup Guide

Specifications | VND 250 60-1275-01 | VN-Matrix 250 Series

Panel Drawing | VND 250 60-1275-01 | VN-Matrix 250 Series
