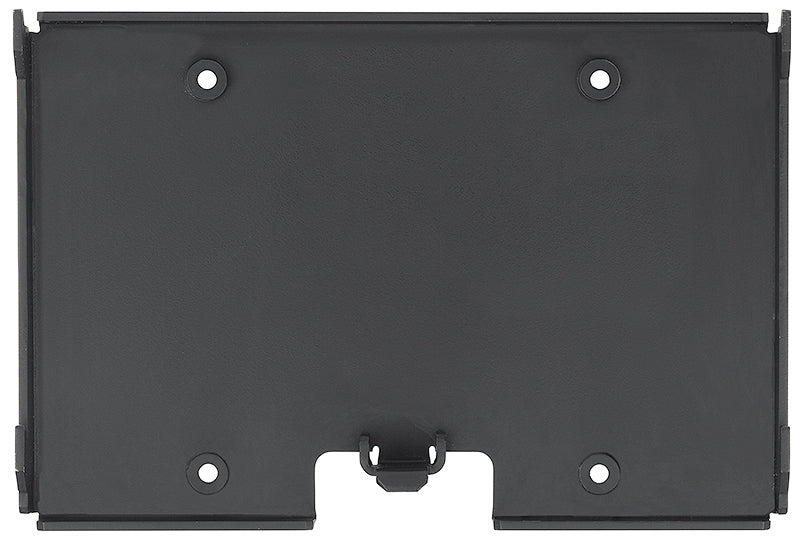

Extron VMK 1 (part number 70-1253-12) — an all-metal VESA mount kit, in black, for TLP Pro 725M and TLP Pro 1025M touchpanels.

VMK 1 lets integrators hang a TLP Pro 725M or TLP Pro 1025M touchpanel on any VESA MID-D 75mm x 75mm mount instead of Extron's proprietary bracket, opening up third-party arms, poles, and wall plates already standard in many installs. The all-metal, black-painted enclosure measures 3.86" H x 5.75" W x 0.71" D and adds only 0.7 lb to the mounted assembly. A routing path built into the back of the kit lets the Ethernet cable exit through the bottom of the mount, keeping the finished installation free of visible cabling.

Key Capabilities

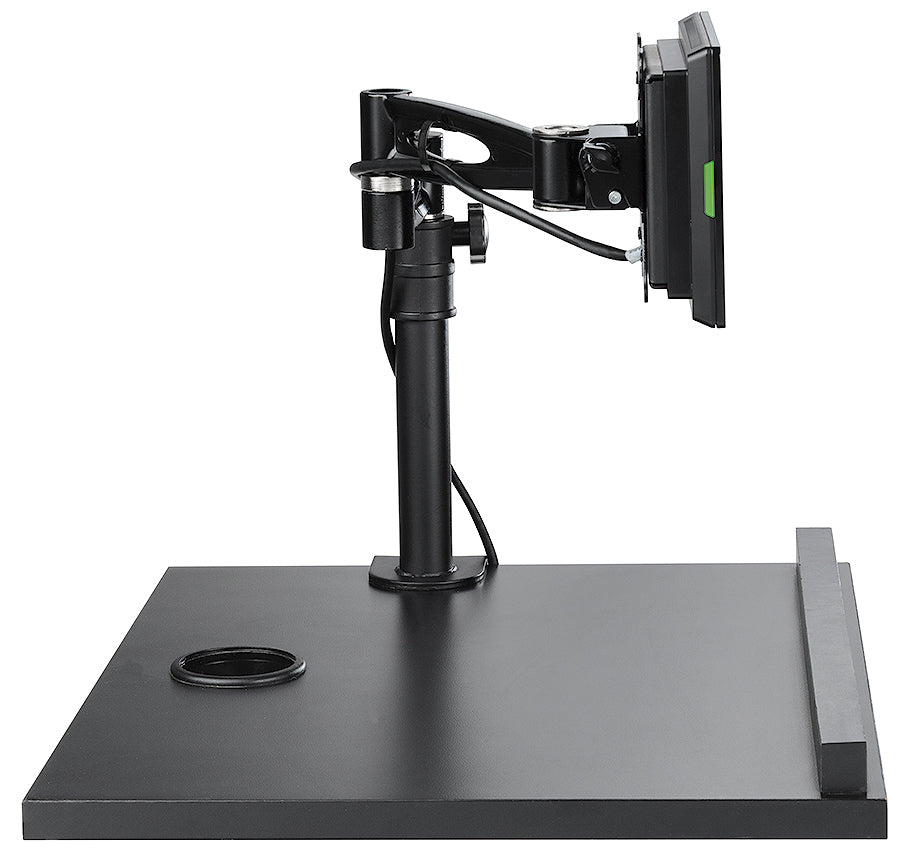

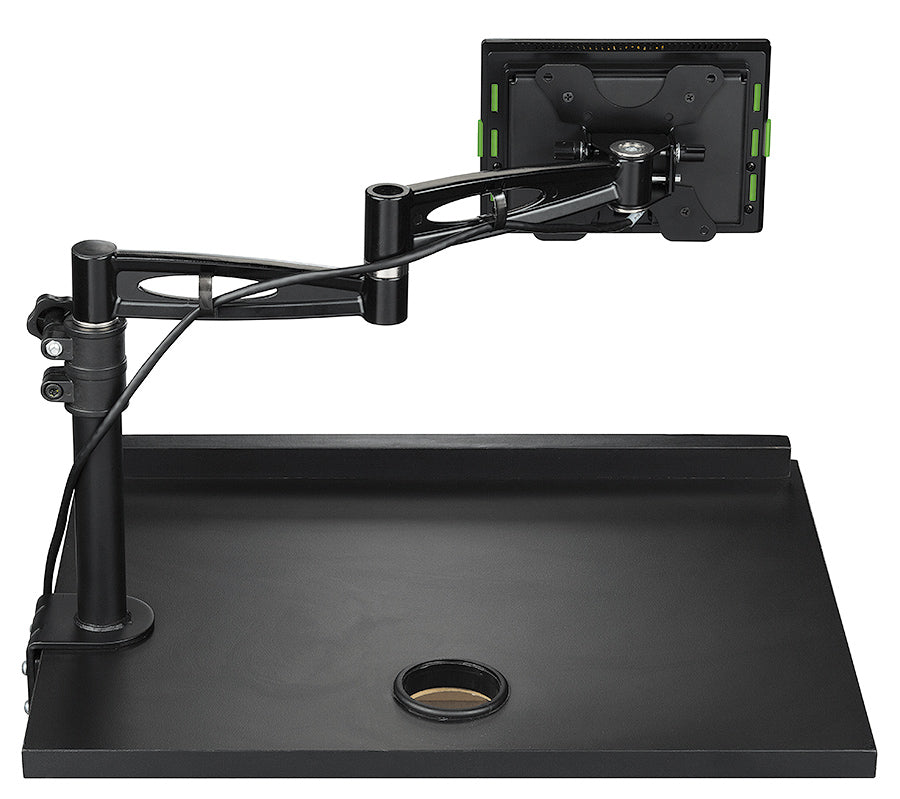

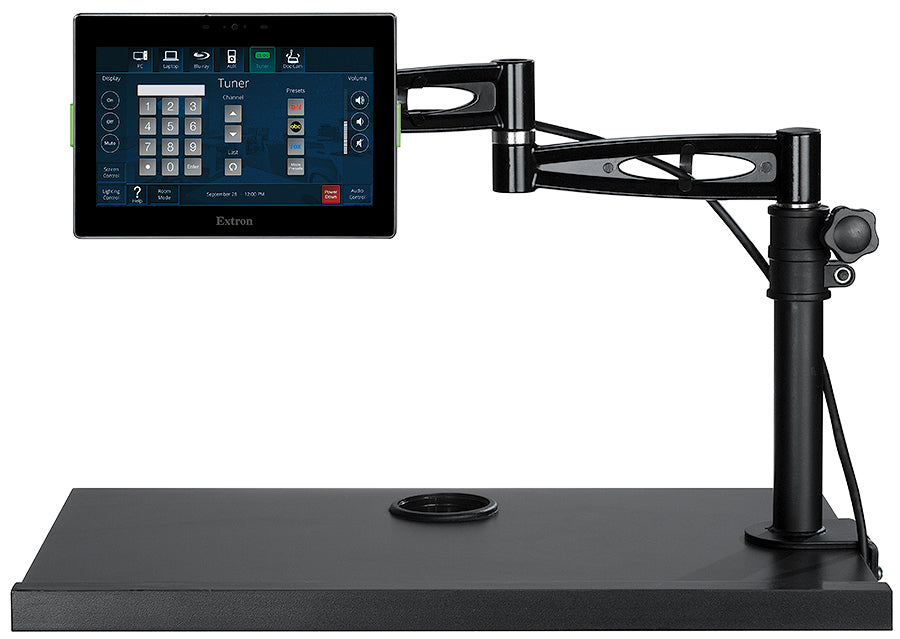

• Mounts a TLP Pro 725M or 1025M on any VESA MID-D 75mm x 75mm arm or plate
• All-metal, black-painted enclosure: 3.86" H x 5.75" W x 0.71" D
• Built-in routing path sends the Ethernet cable out the bottom of the mount
• Adds just 0.7 lb (0.31 kg) to the mounted touchpanel assembly
• Backed by Extron's 3-year parts-and-labor warranty

Where It Is Used

VMK 1 is specified whenever a TLP Pro 725M or 1025M needs to go on a wall arm, monitor pole, or furniture mount that wasn't built for Extron's own bracket — control rooms, huddle spaces, and conference rooms standardizing on VESA mounting across all their displays and touchpanels.

Specifications at a Glance

• Mounting: VESA MID-D 75mm x 75mm standard
• Enclosure: Metal, painted black, 3.86" H x 5.75" W x 0.71" D
• Product weight: 0.7 lbs (0.31 kg)
• Regulatory compliance: CE, RoHS, WEEE
• Warranty: 3 years parts and labor

Also referenced as Extron VMK1, VMK-1, part number 70125312.
