Extron VM 100 P (part number 70-1269-02) — the product base plate in the Extron VM 100 VESA Mounting Kit family.

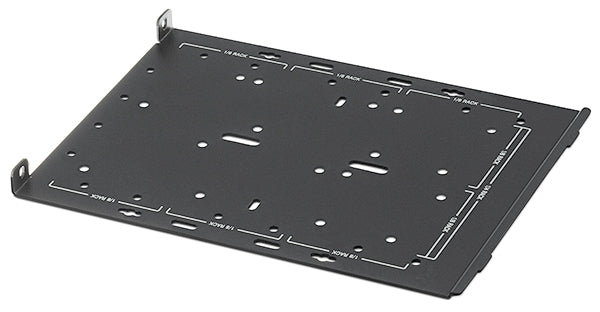

The VM 100 P is the interface plate that a device bolts to before the assembly goes onto a VESA-mounted VM 100 K plate. It carries the mounting hole pattern for Extron quarter-rack products and similar small hardware, letting integrators fasten the device securely rather than improvising with generic hardware that does not match either the equipment or the VESA standard. Additional VM 100 P plates can be added when more than one device needs to ride behind the same display.

Key Capabilities

• Device-side interface plate for the VM 100 VESA mounting system
• Pairs with a VM 100 K VESA attachment plate
• Steel construction, 0.80 lbs (0.36 kg)
• Part of a 5 lb (2.3 kg) total system weight rating

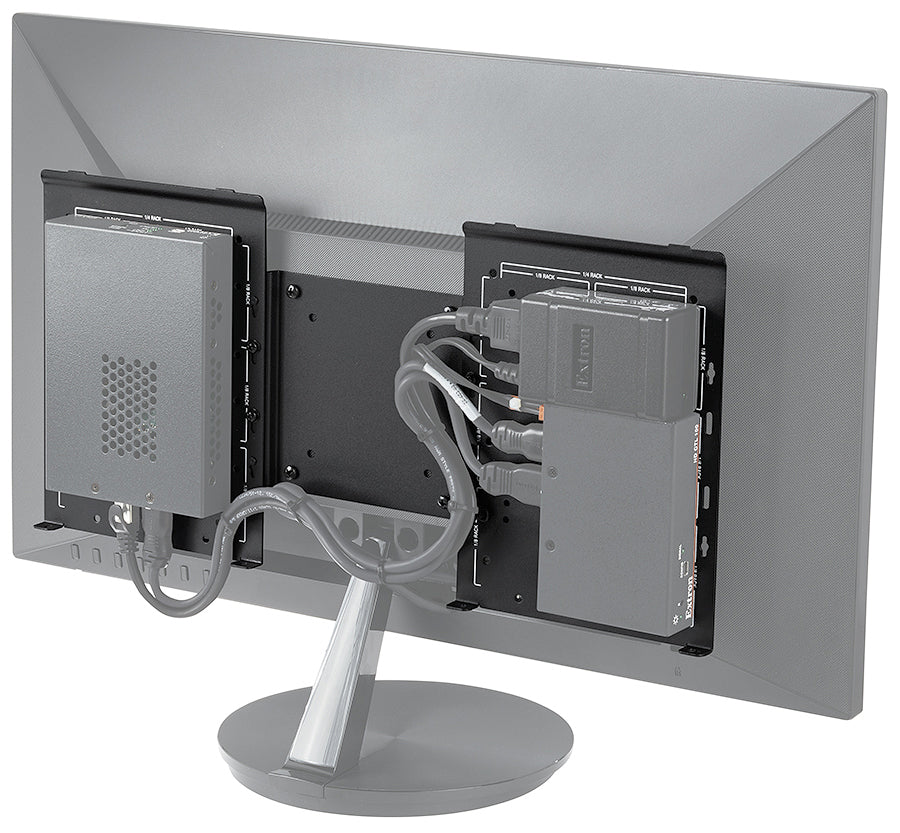

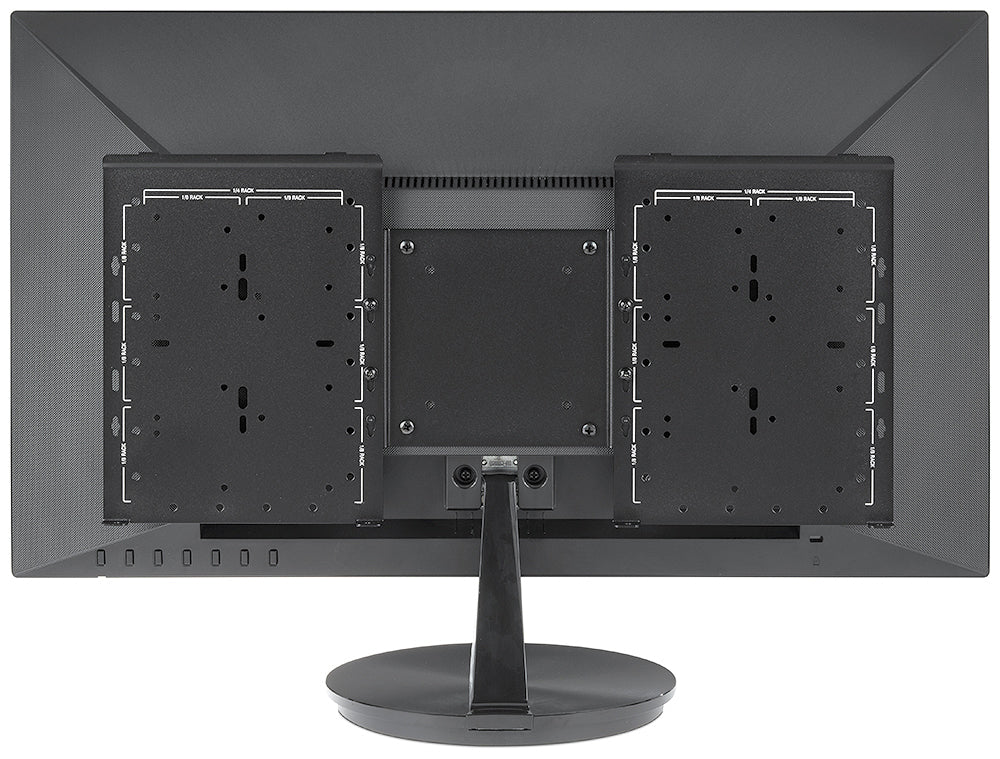

• Additional plates support mounting more than one device
• CE, RoHS and WEEE compliant

Where It Is Used

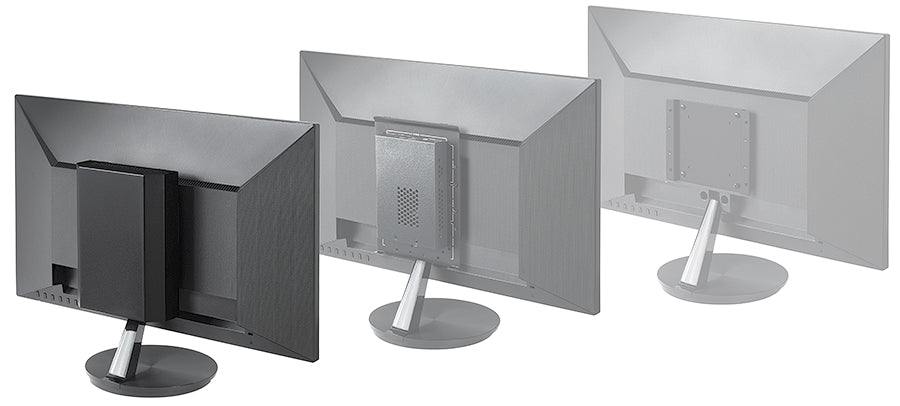

Behind flat panel displays in classrooms, boardrooms and huddle rooms where a quarter-rack receiver, decoder or small form factor PC has to be fastened securely rather than resting loose on a VESA plate.

Specifications at a Glance

• Model: Extron VM 100 P, part number 70-1269-02
• Dimensions: 8.05 in L x 6.00 in W x 0.50 in D (204.4 x 152.4 x 12.7 mm)
• Product weight: 0.80 lbs (0.36 kg); steel
• Mounting: VESA MIS-D 75 mm / 100 mm (via VM 100 K)
• CE, RoHS, WEEE; 3 years parts warranty

Also referenced as Extron VM100P, VM-100-P, part number 70126902.
