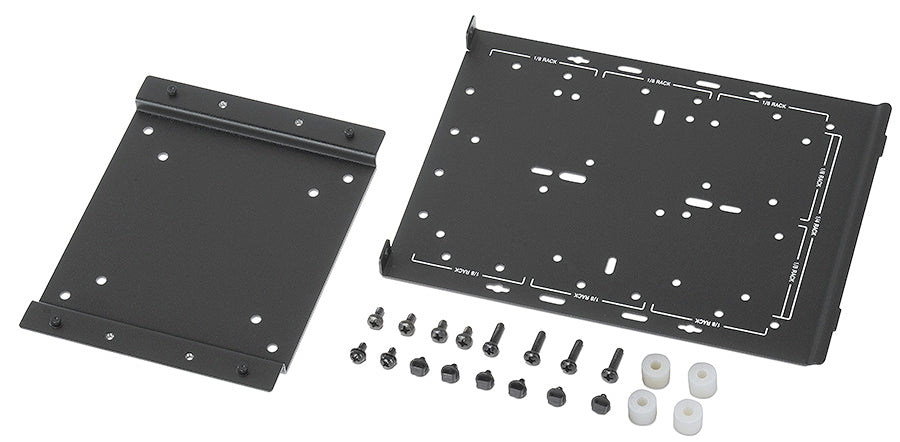

Extron VM 100 K (part number 70-1269-01) — the VESA mounting kit assembly that attaches Extron devices to the rear of a flat panel display.

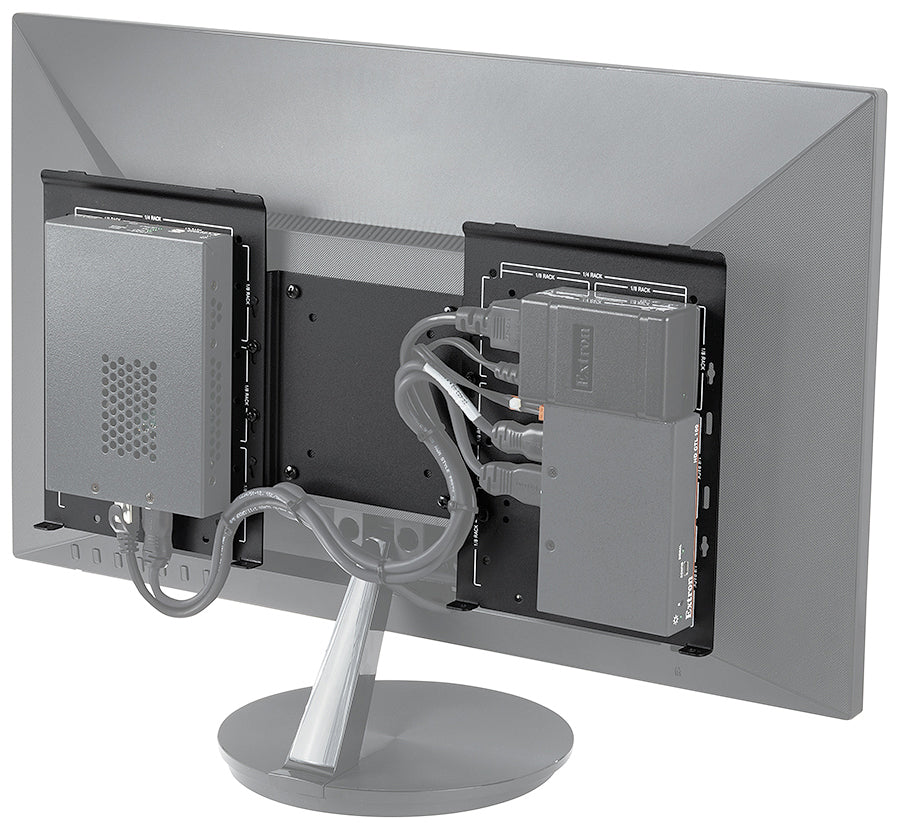

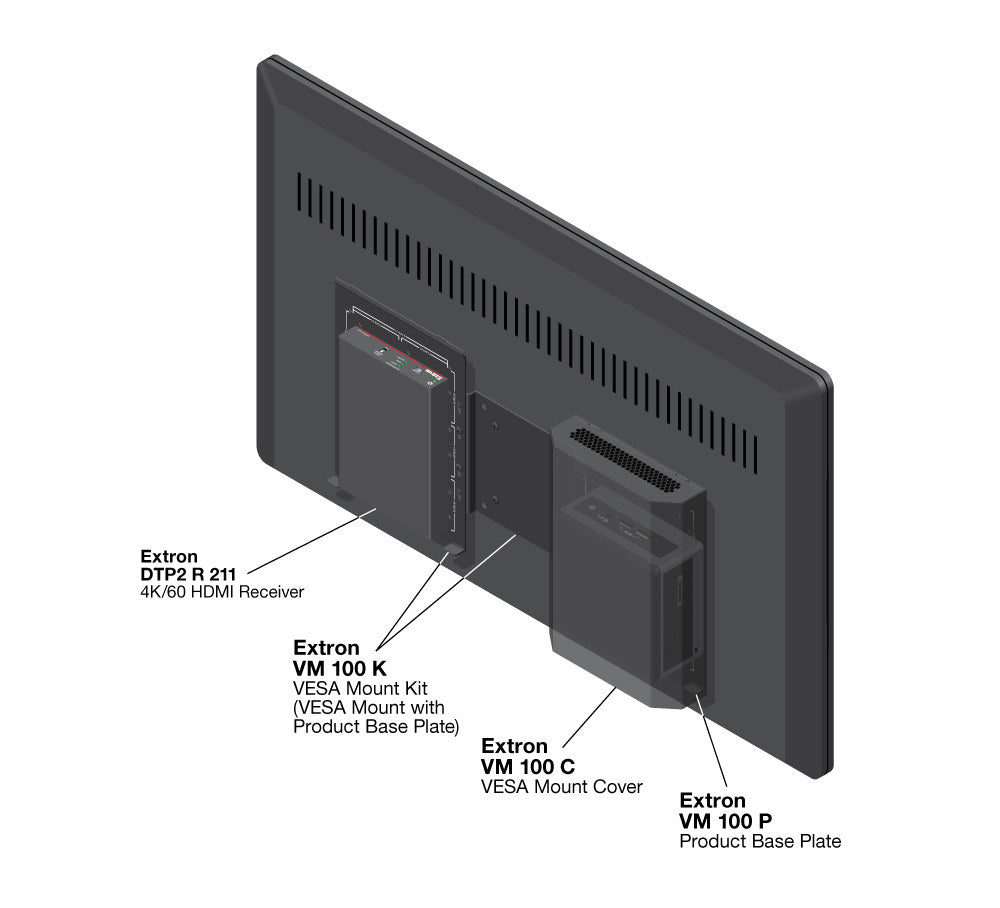

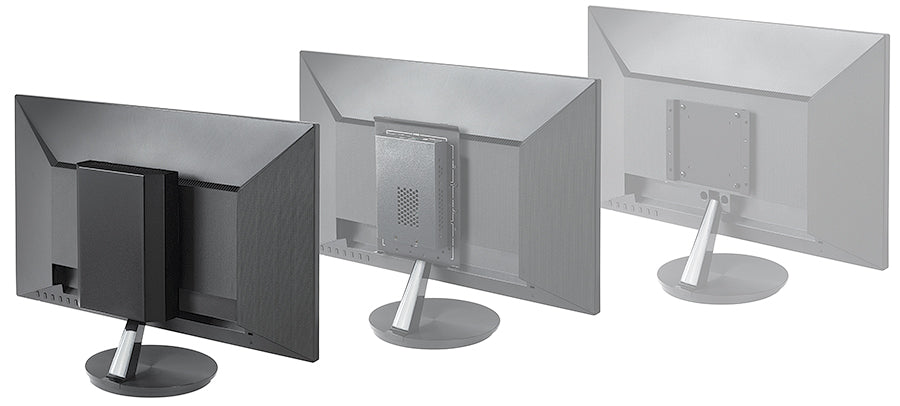

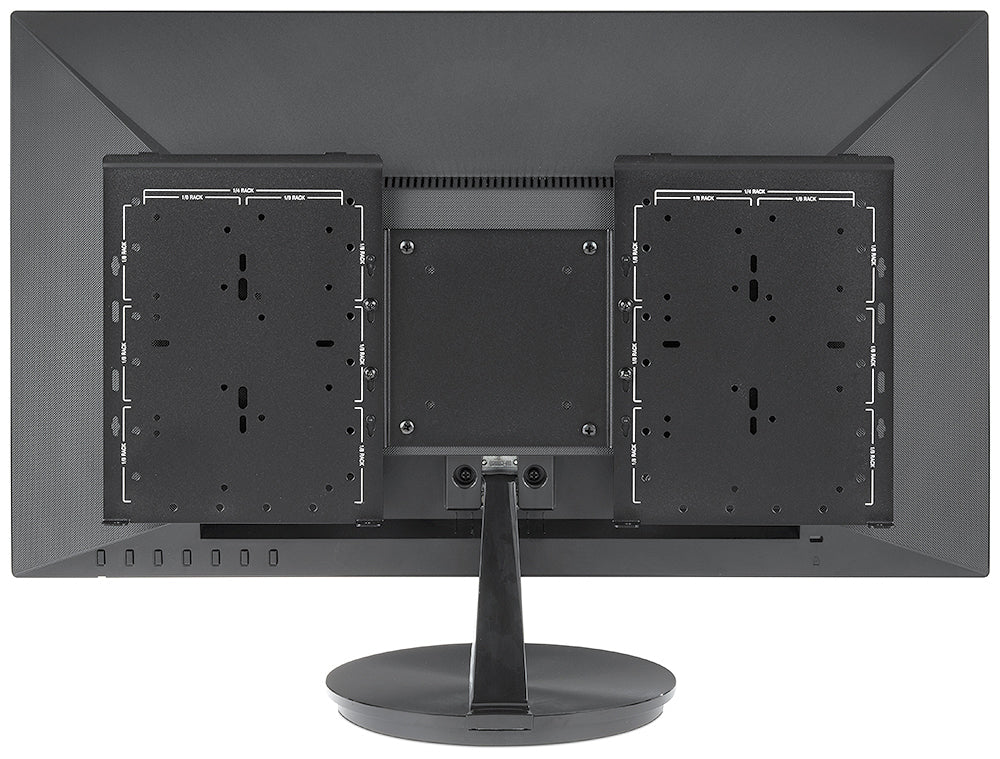

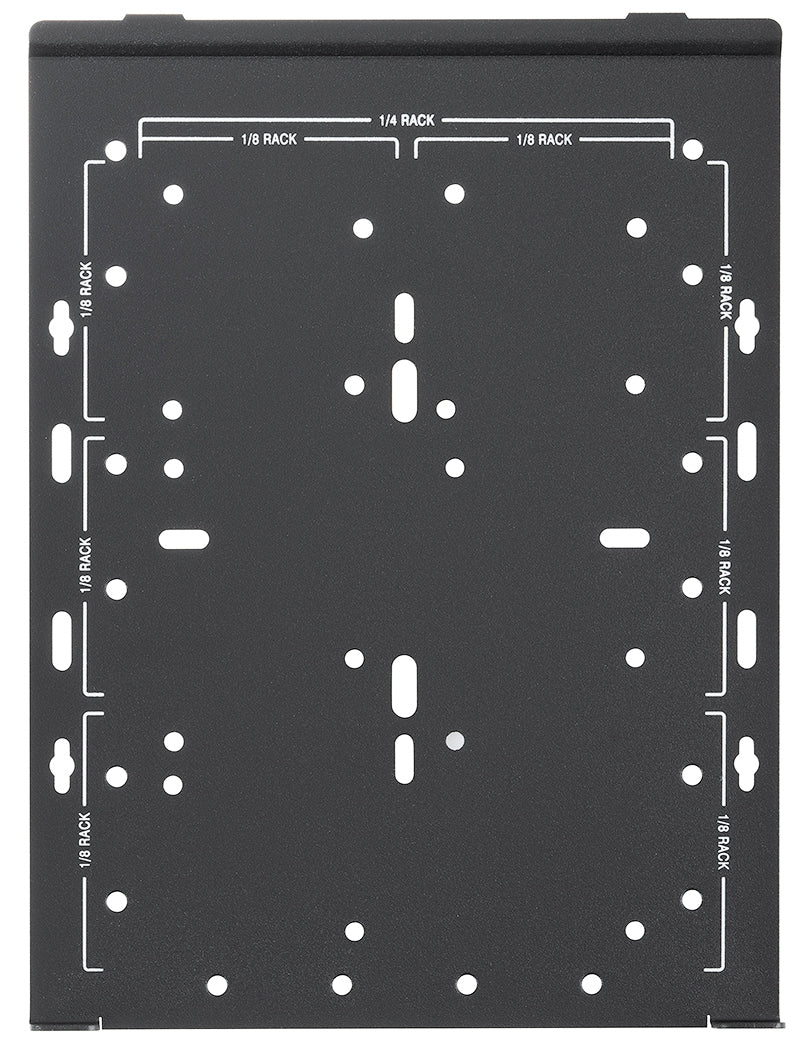

The VM 100 K is the widest plate in the VM 100 family, combining the VESA-side attachment area with the product-side mounting holes in a single piece. It bolts to a display's VESA MIS-D 75 mm or 100 mm pattern on one side while the other side accepts an Extron receiver, decoder or similar quarter-rack device, keeping the electronics tight against the back of the screen instead of routed to a remote rack. The complete system - mounting plate, product plate and optional cover - is rated to 5 lbs total.

Key Capabilities

• Combined VESA-to-device mounting plate for VM 100 installations
• Fits VESA MIS-D 75 mm and 100 mm mounting patterns
• Steel construction, 1.20 lbs (0.54 kg)
• Part of a 5 lb (2.3 kg) total system weight rating
• Optional 0.50 in spacers available for offset adjustment
• CE, RoHS and WEEE compliant

Where It Is Used

Behind flat panel displays in classrooms, boardrooms and huddle rooms where a receiver, decoder or small form factor PC needs to travel with the screen rather than sit in a separate rack.

Specifications at a Glance

• Model: Extron VM 100 K, part number 70-1269-01
• Dimensions: 8.05 in L x 11.51 in W x 0.85 in D (204.4 x 292.5 x 21.5 mm)
• Product weight: 1.20 lbs (0.54 kg); steel
• Mounting: VESA MIS-D 75 mm / 100 mm
• CE, RoHS, WEEE; 3 years parts warranty

Also referenced as Extron VM100K, VM-100-K, part number 70126901.
