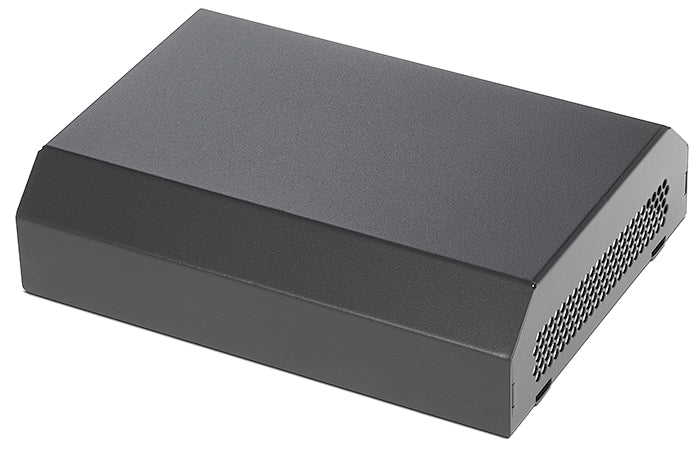

Extron VM 100 C (part number 70-1269-03) — the product base cover in the Extron VM 100 VESA Mounting Kit family.

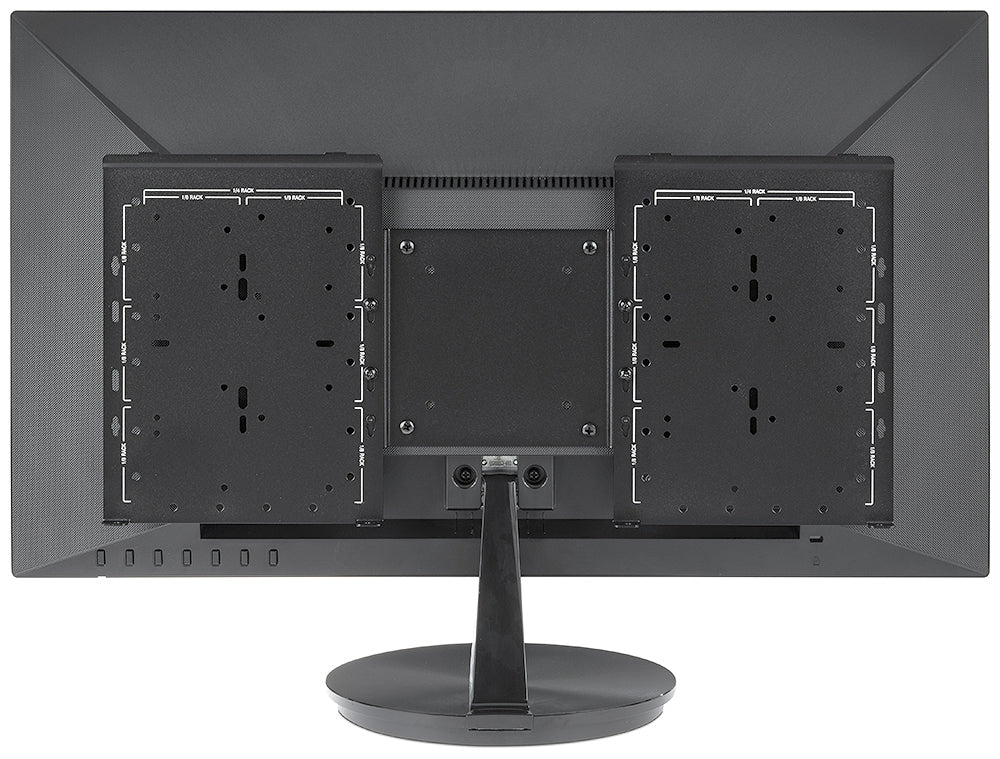

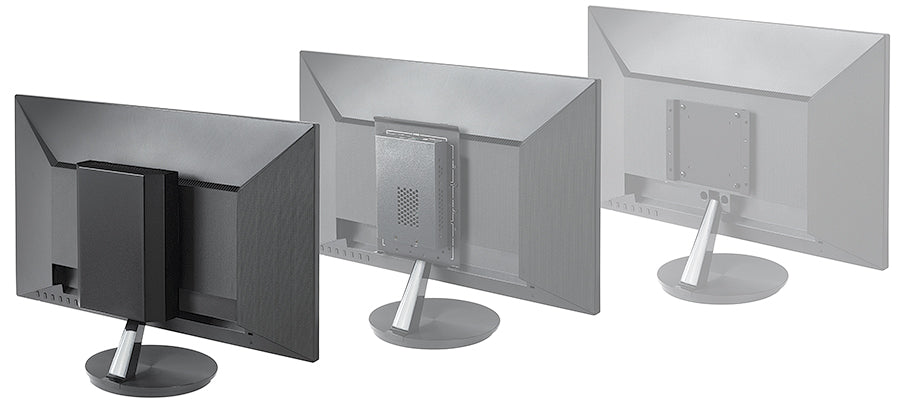

Once a receiver or small device is bolted to a VM 100 base plate behind a display, the exposed circuit board and connectors are still a liability in a serviceable install. The VM 100 C snaps over that assembly to close it in, so the only thing visible behind the screen is a clean steel shell rather than bare electronics. It mounts onto the same VESA MIS-D 75 mm and 100 mm pattern as the rest of the VM 100 family, and the whole assembly - mounting plate, product plate and cover - is rated to a combined 5 lbs.

Key Capabilities

• Encloses a VM 100-mounted device for a clean rear-of-display finish
• Fits VESA MIS-D 75 mm and 100 mm mounting patterns
• Steel construction, 0.90 lbs (0.41 kg)
• Part of a 5 lb (2.3 kg) total system weight rating with plate and cover
• Optional 0.50 in spacers available for offset adjustment
• CE, RoHS and WEEE compliant

Where It Is Used

Behind flat panel displays in classrooms, boardrooms and huddle rooms where a receiver, decoder or small form factor PC is VESA-mounted and needs a finished, tamper-resistant cover rather than exposed hardware.

Specifications at a Glance

• Model: Extron VM 100 C, part number 70-1269-03
• Dimensions: 8.08 in L x 6.13 in W x 2.12 in D (205.3 x 155.7 x 53.7 mm)
• Product weight: 0.90 lbs (0.41 kg); steel
• Mounting: VESA MIS-D 75 mm / 100 mm
• CE, RoHS, WEEE; 3 years parts warranty

Also referenced as Extron VM100C, VM-100-C, part number 70126903.
