Details

Manufacturer: Extron | Model: VLSL 3001 | Part number: 42-380-01 (also written 4238001)

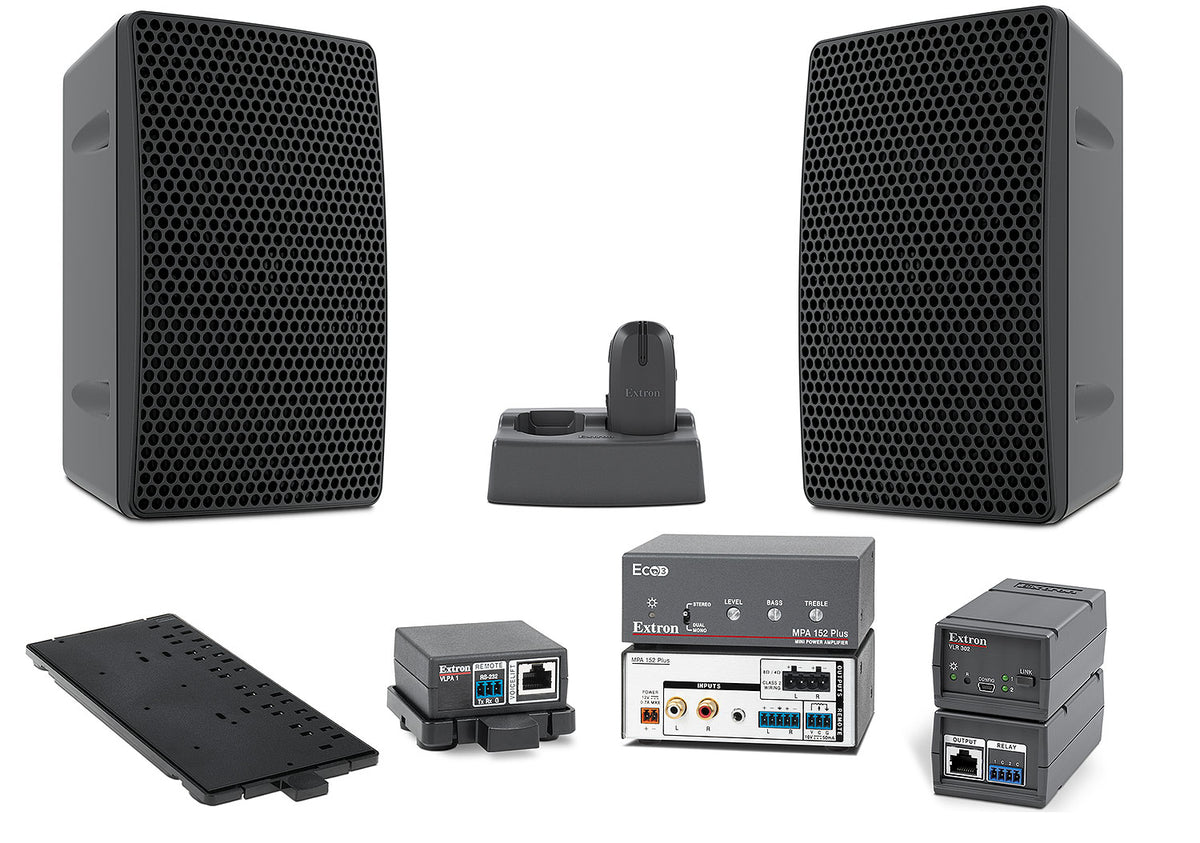

The Extron VLSL 3001 (42-380-01) is the single pendant configuration of Extron's VoiceLift Lite classroom microphone system, a complete voice reinforcement kit built around the MPA 152 Plus stereo amplifier and a pair of SM 3 surface mount speakers. Ampronix is an authorized Extron distributor and supplies the new Extron VLSL 3001 kit complete with one VLP 302 pendant microphone, a VoiceLift Pro Port Adapter, mounting hardware, and cable, ready to spread an instructor's voice evenly across a standard classroom.

Key capabilities

Single VLP 302 pendant microphone on a dedicated 1900 MHz RF link with up to 90 days of battery life
MPA 152 Plus Class D stereo amplifier delivers 15 watts RMS per channel into 4 ohms
Pair of SM 3 surface mount speakers cover 40' x 40' (1,600 sq ft minimum)
VoiceLift Pro Port Adapter, ZipClip 400 and ZipCaddy 400 mounting hardware, and cable included
Rack, ceiling, or wall mountable for flexible classroom installation
ENERGY STAR qualified power supply; CE, FCC Class B, UL, and c-UL listed

Where it is used

The Extron VLSL 3001 pendant VoiceLift Lite system is installed in K-12 and higher-education classrooms, lecture halls, and training rooms where a single instructor needs their voice amplified evenly across the room without a handheld or lapel microphone. The single-pendant configuration suits standard one-teacher classrooms, while spaces needing a second microphone for student response or a roaming presenter are better served by the Extron VLSL 3002H pendant and handheld configuration.

System components and compatible part numbers

Microphone: VLP 302 VoiceLift Pro Pendant Microphone
Amplifier: MPA 152 Plus stereo amplifier
Speakers: (2) SM 3 surface mount speakers
Adapter: VoiceLift Pro Port Adapter (VLPA 1)
Related kit: Extron VLSL 3002H 42-380-03 (adds a handheld microphone)

Specifications at a glance

Amplifier: MPA 152 Plus, Class D, 15W RMS/channel at 4 ohms, 8W RMS/channel at 8 ohms
Speakers: (2) SM 3, 1-way full range, 8 ohms nominal, 83 dB SPL sensitivity
RF frequency: 1900 MHz, coverage 40' x 40' (1,600 sq ft minimum)
Regulatory: CE, FCC Class B, UL, c-UL, RoHS/WEEE compliant, Section 508 accessible
Part number 42-380-01 (also written 4238001), model VLSL 3001 / VLSL3001

Frequently asked questions

Is the Extron VLSL 3001 42-380-01 available new? - Yes. Ampronix supplies the new Extron VLSL 3001 (42-380-01) single pendant VoiceLift Lite system for purchase.
What is the difference between the Extron VLSL 3001 and VLSL 3002H? - The VLSL 3001 (42-380-01) includes a single VLP 302 pendant microphone, while the VLSL 3002H (42-380-03) adds a VLH 302 handheld microphone for a second presenter or student Q&A.
Does Ampronix support the Extron VLSL 3001 VoiceLift Lite system? - Yes. Ampronix is an authorized Extron distributor and carries a full range of Extron VoiceLift products and accessories.

Ampronix is an authorized Extron distributor and carries a full range of Extron VoiceLift products and accessories.

Also referenced as: ExtronVLSL3001, Extron-VLSL-3001, VLSL3001, part number 4238001, REF 42-380-01.

Specifications

Part Number: 42-380-01

Manufacturer: Extron

Condition: New

4Ω: 0.1

AC Line Current: AC Power Consumed

Accessibility: Section 508 of the Rehabilitation Act (29 U.S.C. 794d)

Active (1/8 power), all channels driven: 8Ω

Ambient temperature/humidity: Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensingOperating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing

Amplifier type: Class D

Balanced: 25x (28 dB)

Bass adjustment: ±10 dB @ 80 Hz (reference) to 1 kHz (2 dB tolerance)

CMRR: 74 dB (typical) @ 1 kHz

Captive screw input: +12 dBu (balanced) at 1% THD+N

Condition: A

Connector: (1) 3.5 mm mini audio jack (tip = audio signal/bias voltage, sleeve = GND)

Connectors: (1) 3.5 mm mini audio jack (tip = left channel audio, ring= right channel audio, sleeve = GND)

Control port: (1) 3.5 mm captive screw connector, 3 pole

Cooling: Convection, no vents

Damping factor: >100 at 8 ohms

Driver: (1) 3" (76.2 mm) paper cone

EMI/EMC: CE, FCC Class B

Enclosure dimensions: 3.0" H x 1.47" W x 1.2" D* (7.6 cm H x 3.7 cm W x 3.0 cm D*) *Depth includes clip. Depth without clip = 0.9", 2.3 cm

Enclosure material: High impact plastic

Enclosure type: Metal

Environmental: Complies with the appropriate requirements of RoHS and WEEE

Everlast power supply warranty: 7 years parts and labor

External power supply: 110 VAC to 130 VAC, 50-60 Hz, external; to 5 VDC, 2.6 A, regulated USB Micro B

Frequency range: 100 Hz to 20 kHz, -10 dB, full space

Frequency response: 20 Hz to 20 kHz, +1/-3 dB @ 8 ohms

Furniture mount: Yes, with optional mini under desk mounting kit

Horizontal mounting: 5.0 lbs (2.27 kg)

Impedance: >10k ohms unbalanced/balanced, DC coupled

Input signal detection threshold: RCA and mini audio jacks: -53 dBV (2.24 mV) ±3 dB, unbalanced Captive screw connector: -46 dBu (3.88 mV) ±3 dB, balanced

Load impedance: 4 ohms, minimum

Microphone battery: 90 days

Mounting: Rack, ceiling, or wall mountable

Mounting plate: (1) 10 mm Euro-style captive screw terminal block, 2 pole

Nominal coverage angles: Horizontal: 120° (1 kHz - 4 kHz, weighted 2 kHz - 4kHz) Vertical: 130° (1 kHz - 4 kHz, weighted 2 kHz - 4kHz)

Nominal impedance: 8 ohms

Nominal sensitivity: 83 dB SPL, 1 W, 1 m, full space

Number/signal type: 1 mono, via integrated MEMS microphones 1 mono, unbalanced, via auxiliary mic input jack

Number/type: 1 AA size NiMH or alkaline battery

Operating life: Rechargeable 2400 mAh NiMH batteries: min. 8 hours, continuous use Alkaline batteries: min. 8 hours, continuous use

Operating range: 40' x 40' minimum coverage

Output power: 8 watts rms per channel, 8 ohms, 1 kHz, 1% THD15 watts rms per channel, 4 ohms, 1 kHz, 1% THD

Package: 2 speakers (1 pair) with mounting kit

Pin configuration: Pin 1 = +10 VDC, 50 mA (max.), pin 2 = volume/mute (variable voltage), pin 3 = GND

Pole mount: Yes, with optional pole mounting kit

Power capacity: 15 W (rms) continuous pink noise (per IEC 60268-5)30 W (rms) continuous program

Power input requirements: 12 VDC, 0.2 A

Power supply: External Input: 100-240 VAC, 50-60 Hz Output: 12 VDC, 2 A, 24 watts

Product: 3 years parts and labor

Product warranty: 3 years parts and labor

Product weight: 1.2 oz (34 g) without battery 2.2 oz (62 g) with battery

Quiescent (idle): 0.1

RCA and TRS inputs: +9 dBV (unbalanced) at 1% THD+N

Rack mount: Yes, with optional 1U rack shelf or back of rack mounting kit

Rack rail mount: Yes, with required hardware

Radio frequency: 1900 MHz

Reception area: 1600 square feet (148.6 square meters) minimum

Recharging time: ~5 hours for a 2400 mAh NiMH battery

Regulatory compliance: CE, FCC Class B, UL, c-UL

S/N: 90 dB, 20 Hz to 20 kHz, unweighted

Safety: UL, c-UL, FCC Class B

Speaker: 2 recessed pins

Speaker type: 1-way, full range, indoor surface mount speaker

Standby: <0.1

Stereo channel separation: >60 dB @ 1 kHz

THD + Noise: <0.1% -3dB below clipping @ 1 kHz, 8 ohm load

Treble adjustment: ±10 dB @ 10 kHz (reference) to 1 kHz (2 dB tolerance)

Unbalanced: 50x (34 dB)

User controls: Power, volume, and function

Vertical mounting: 9.5 lbs (4.3 kg)

Vibration: ISTA 1A in carton (International Safe Transit Association)

Volume control voltage range: 0 V (mute) to 10 V (maximum volume)

With 0° mounting plate: 8.75" H x 5.75" W x 4.0" D (22.2 cm H x 14.6 cm W x 10.2 cm D)

With 10° mounting plate: 8.9" H x 5.75" W x 5.0" D (22.6 cm H x 14.6 cm W x 12.7 cm D)

ZipCaddy 400: 8.6" H x 4.4" W x 0.4" D (218 mm H x 111 mm W x 10 mm D)

ZipClip 400: 9.5" H x 4.6" W x 0.6" D (241 mm H x 116 mm W x 15 mm D)

Diagram

Resources

Brochure | VLSL 3001 42-380-01 | AV Solutions for Instructional Spaces

Brochure | VLSL 3001 42-380-01 | VoiceLift Pro (North America Only)

Manual | VLSL 3001 42-380-01 | Cleaning Instruction Card

Manual | VLSL 3001 42-380-01 | VLPA 1 VoiceLift Pro Adapter Setup Guide

Manual | VLSL 3001 42-380-01 | VoiceLift Pro Microphone Kits Setup Guide

Manual | VLSL 3001 42-380-01 | VoiceLift Pro Microphone User Guide

Specifications | VLSL 3001 42-380-01 | VoiceLift Pro System Kit
