Details

Extron VLS 3002H (part number 42-256-03) — the original Complete VoiceLift Pro System build with one pendant microphone and one handheld microphone.

The handheld is what makes this version worth specifying. Instructors keep the pendant; the VLH 302 goes to a student answering a question, a visiting speaker or a presenter at the front. At 8.0 inches long and five ounces with its battery in, it is easy to pass around. Both microphones share the 1900 MHz link into the VLR 302 receiver and the PVCA 452 controller amplifier.

Key Capabilities

One VLP 302 pendant plus one VLH 302 handheld microphone
Handheld measures 8.0 in tall with a 1.8 in maximum diameter, 5.0 oz with battery
Rated for a 40 x 40 ft room, 1600 sq ft (148.6 sq m) minimum reception area
PVCA 452 amplifier gives 25 watts per channel into 4 or 8 ohms at 1% THD
Signal to noise better than 90 dB across 20 Hz to 20 kHz into 8 ohms
FF 120 Flat Field speakers spread sound across 170 degrees of conical coverage
Both microphones run at least 8 hours on a single AA cell

Where It Is Used

Discussion-led classrooms, lecture and seminar rooms, assembly halls and training suites where the microphone needs to move around the room. Widely deployed in schools, colleges, corporate learning centres and clinical education spaces.

Specifications at a Glance

Microphones: one VLP 302 pendant, one VLH 302 handheld
Amplifier: PVCA 452, 25 W per channel, 4/8 ohms, 20 Hz to 20 kHz
Radio: 1900 MHz, 40 x 40 ft minimum coverage
Receiver: VLR 302, 1.66 x 2.15 x 4.50 in (4.2 x 5.5 x 11.4 cm)
Warranty: 3 years parts and labor; 90 days on the microphone battery

Also referenced as Extron VLS3002H, VLS-3002H, part number 4225603. Extron lists this part number as retired.

Specifications

Part Number: 42-256-03

Manufacturer: Extron

Model: VLS 3002H

Condition: New

Configuration: Pendant and Handheld VoiceLift Pro System

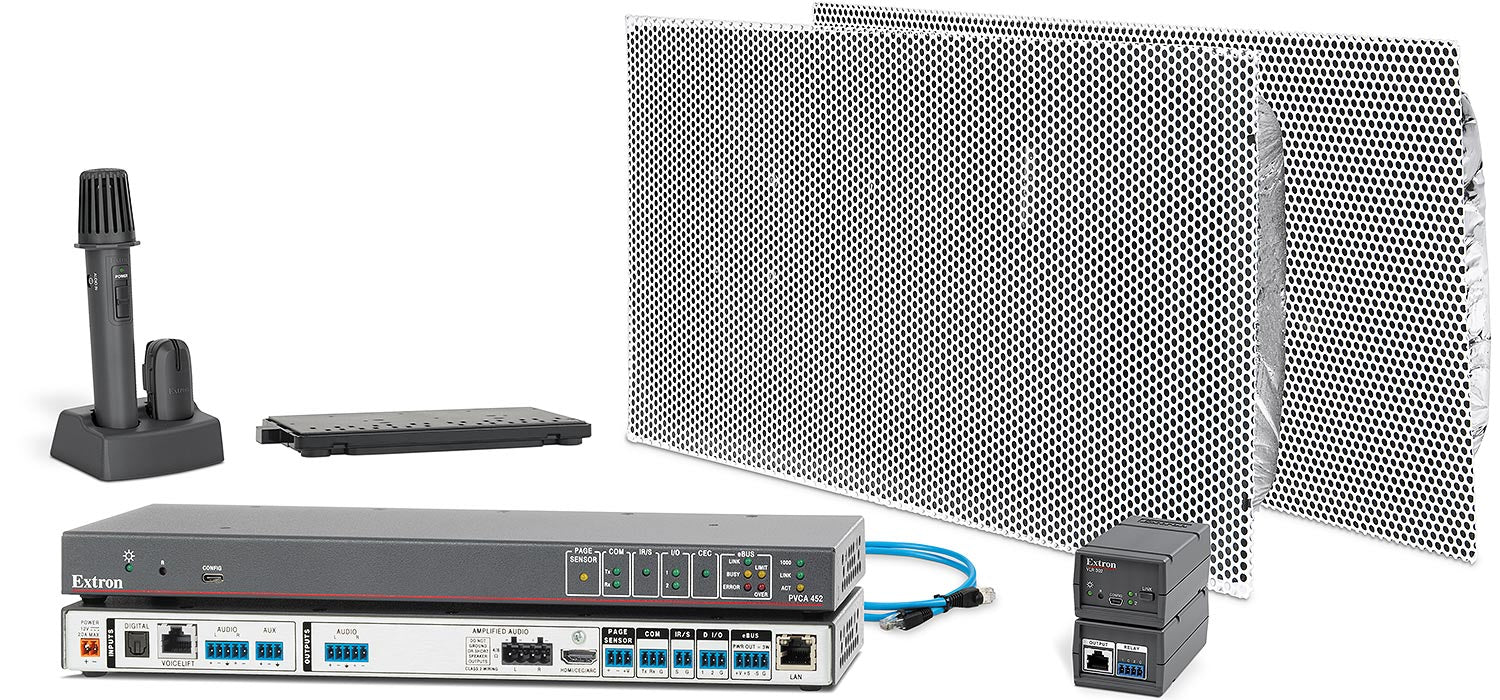

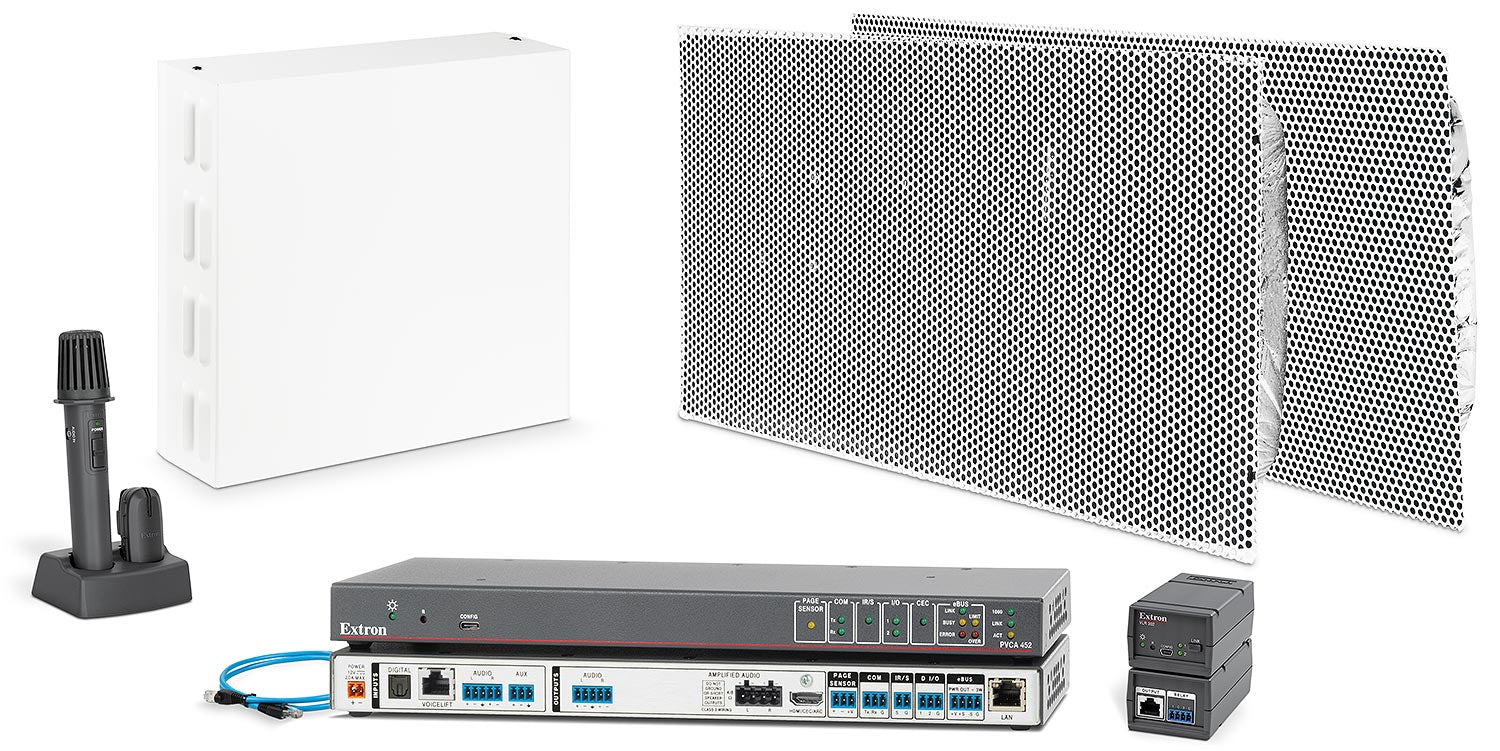

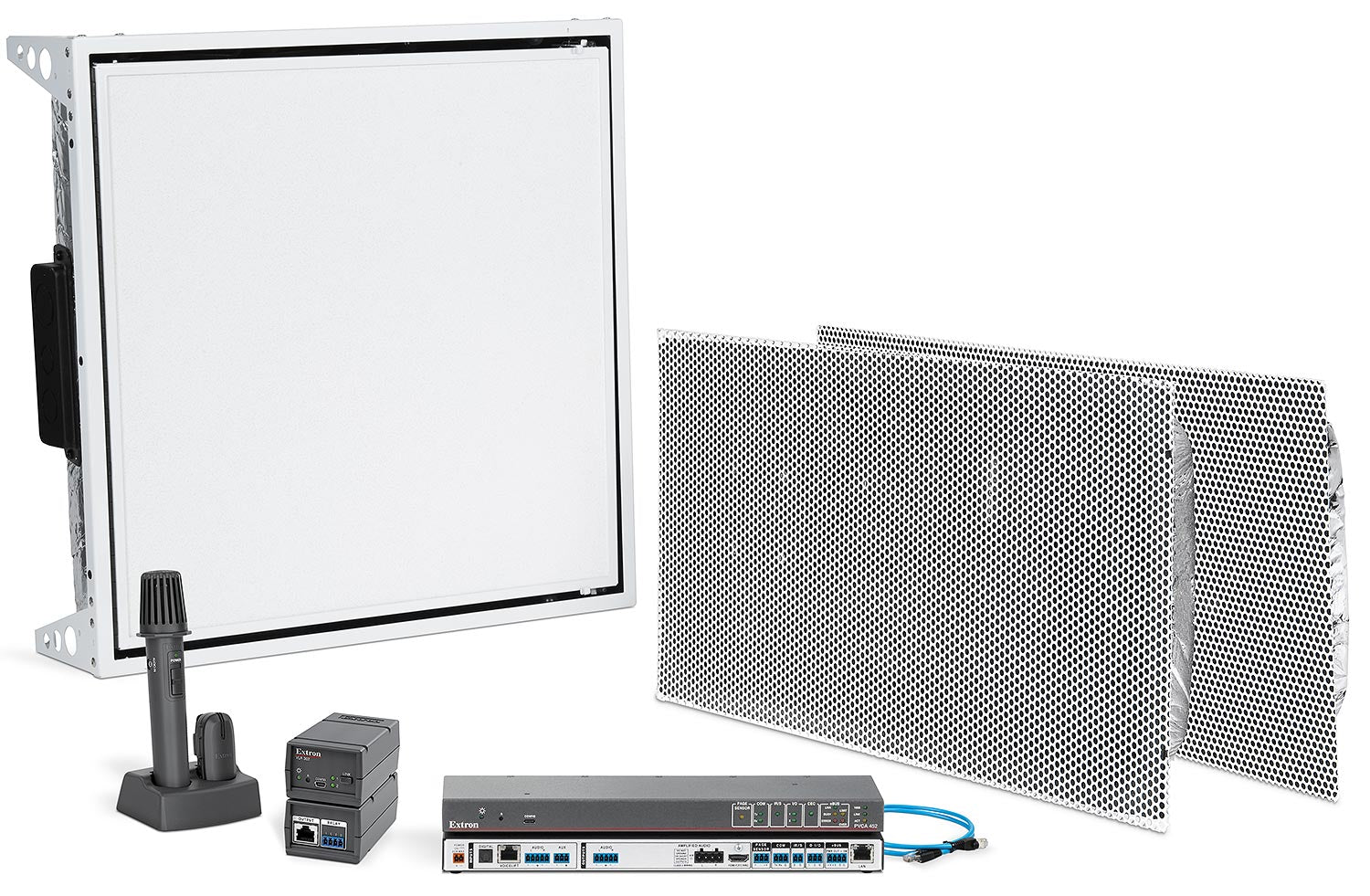

Included Components: VLP 302 pendant microphone, VLH 302 handheld microphone, VLR 302 receiver, VLC 302 charging station, PVCA 452 controller amplifier, FF 120 Flat Field speakers (pair)

Operating Range: 40' x 40' minimum coverage

Reception Area: 1600 square feet (148.6 square meters) minimum

Radio Frequency: 1900 MHz

Amplifier Output Power: 25 watts per channel, 4/8 ohms, 1 kHz, 1% THD

Amplifier Load Impedance: 4/8 ohms, single channel or stereo

Frequency Response: 20 Hz to 20 kHz, +1 dB / -3 dB at 1 watt output, 8 ohm load

THD + Noise: 0.1%, 1 kHz, 3 dB below clipping

Signal to Noise: Greater than 90 dB, 20 Hz to 20 kHz at maximum output (unweighted), 8 ohms

Damping Factor: Greater than 75 at 8 ohms

Crosstalk: Less than -85 dB at 1 kHz

Stereo Channel Separation: Greater than 80 dB at 1 kHz

PVCA 452 Control: 1 bidirectional RS-232; 1 front panel female USB type-C (USB 2.0, high speed); paging sensor on a 3.5 mm captive screw connector, 3 pole

PVCA 452 Software: Extron Global Configurator Plus and Professional for Windows

PVCA 452 Power Supply: External; input 100-240 VAC, 50-60 Hz; output 12 VDC, 4.2 A, 50 watts

PVCA 452 Power Consumption: Device 18.16 watts; device and power supply 20.55 watts

PVCA 452 Enclosure: Metal; 1.00 in H x 13.1 in W x 3.5 in D (2.5 x 33.3 x 8.9 cm)

PVCA 452 Operating Temperature: +32 to +122 F (0 to +50 C), 10% to 90% noncondensing; convection cooled, no vents

VLP 302 Pendant Microphone: 1 mono via integrated MEMS microphones plus 1 mono unbalanced auxiliary mic input on a 3.5 mm jack; power, volume and function controls; 3.0 in H x 1.47 in W x 1.2 in D (7.6 x 3.7 x 3.0 cm); 2.2 oz (62 g) with battery

VLH 302 Handheld Microphone: 1 mono via integrated MEMS microphones plus 1 stereo unbalanced auxiliary line level input on a 3.5 mm jack; power, volume and link controls; 8.0 in H x 1.8 in maximum diameter (20.2 x 4.6 cm); 5.0 oz (142 g) with battery

Microphone Battery: 1 AA size NiMH or alkaline; minimum 8 hours continuous use; about 5 hours to recharge a 2400 mAh NiMH cell

VLR 302 Receiver: Rack, ceiling or wall mountable; 2 normally open relays; 1 RS-232 port via RJ-45 (38400 baud, 8 data bits, 1 stop bit, no parity); 1 USB; 12 VDC, 0.2 A; 1.66 in H x 2.15 in W x 4.50 in D (4.2 x 5.5 x 11.4 cm); 0.25 lbs (0.11 kg)

VLC 302 Charging Station: External supply 110 to 130 VAC, 50-60 Hz to 5 VDC, 2.6 A regulated via USB Micro B; 5 VDC, 0.5 A; 1.5 in H x 4.4 in W x 3.4 in D (3.9 x 11.3 x 8.6 cm); 0.66 lbs (0.3 kg)

FF 120 Flat Field Speakers: 16 W (rms) continuous pink noise, 32 W (rms) continuous program; 170 degree conical coverage; 8 ohms per speaker; drops into a 2' x 2' or 2' x 4' suspended tile; 3.25 in H x 23.75 in W x 11.75 in D; 4.7 lbs (2.1 kg) each

Regulatory Compliance: EMI/EMC: CE, FCC Class B; complies with the appropriate requirements of RoHS and WEEE

Vibration: ISTA 1A in carton (International Safe Transit Association)

Warranty: 3 years parts and labor; microphone battery 90 days

Lifecycle Status: Retired by Extron

Diagram

Resources

Brochure | VLS 3002H 42-256-03 | AV Solutions for Instructional Spaces

Brochure | VLS 3002H 42-256-03 | VoiceLift Pro (North America Only)

Brochure | VLS 3002H 42-256-03 | Soluciones AV para espacios educativos

Brochure | VLS 3002H 42-256-03 | Solutions audiovisuelles pour espaces pédagogiques

Manual | VLS 3002H 42-256-03 | Cleaning Instruction Card

Manual | VLS 3002H 42-256-03 | Network Ports, Protocols, and Licenses

Manual | VLS 3002H 42-256-03 | VoiceLift Pro Microphone Kits Setup Guide

Manual | VLS 3002H 42-256-03 | VoiceLift Pro Microphone User Guide

Specifications | VLS 3002H 42-256-03 | VoiceLift Pro System Kit
