Details

Extron VLS 3002 (part number 42-256-02) — the original Complete VoiceLift Pro System build with two pendant microphones.

A second pendant turns a one-way amplification system into something more flexible. Co-teachers can both be heard without handing anything over, and in inclusive classrooms the spare microphone can sit with a student who needs it. Both units pair to the VLR 302 receiver on a dedicated 1900 MHz digital channel, and the PVCA 452 controller amplifier mixes and reinforces them through Flat Field ceiling speakers.

Key Capabilities

Two VLP 302 pendant microphones on one 1900 MHz digital radio system
Rated for a 40 x 40 ft room, 1600 sq ft (148.6 sq m) minimum reception area
PVCA 452 amplifier gives 25 watts per channel into 4 or 8 ohms at 1% THD
Crosstalk below -85 dB at 1 kHz; channel separation better than 80 dB
FF 120 Flat Field speakers spread sound across 170 degrees of conical coverage
VLC 302 station charges two microphones at once
Upgradeable later by adding a display, input plates and a user interface

Where It Is Used

Team-taught classrooms, inclusive and special education rooms, seminar spaces and training suites where more than one voice has to carry. Common across schools, colleges, corporate learning centres and hospital education departments.

Specifications at a Glance

Microphones: two VLP 302 pendants
Amplifier: PVCA 452, 25 W per channel, 4/8 ohms, 20 Hz to 20 kHz
Radio: 1900 MHz, 40 x 40 ft minimum coverage
Charging: VLC 302, 1.5 x 4.4 x 3.4 in (3.9 x 11.3 x 8.6 cm)
Warranty: 3 years parts and labor; 90 days on the microphone battery

Also referenced as Extron VLS3002, VLS-3002, part number 4225602. Extron lists this part number as retired.

Specifications

Part Number: 42-256-02

Manufacturer: Extron

Model: VLS 3002

Condition: New

Configuration: Dual Pendant Complete VoiceLift Pro System

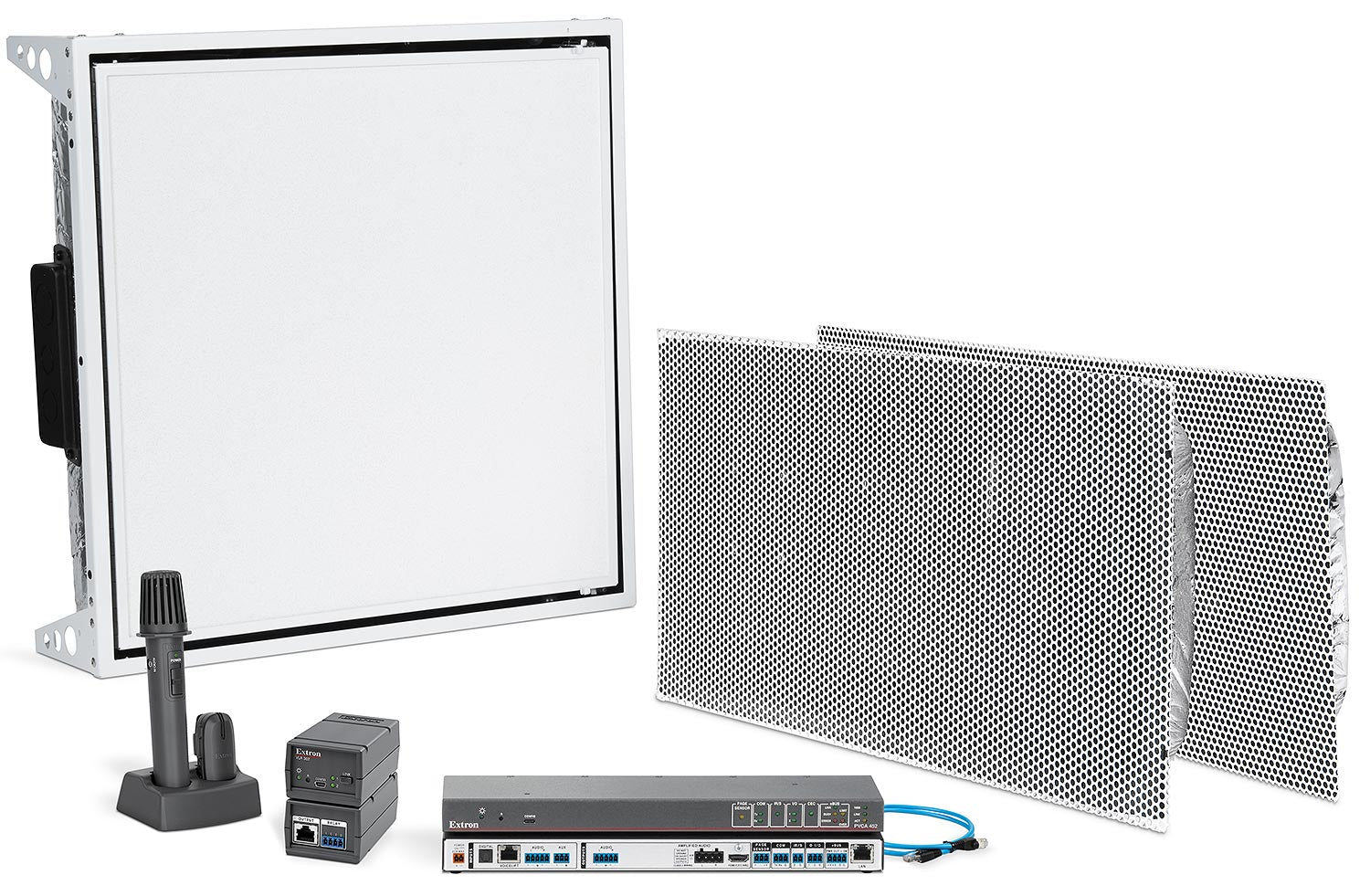

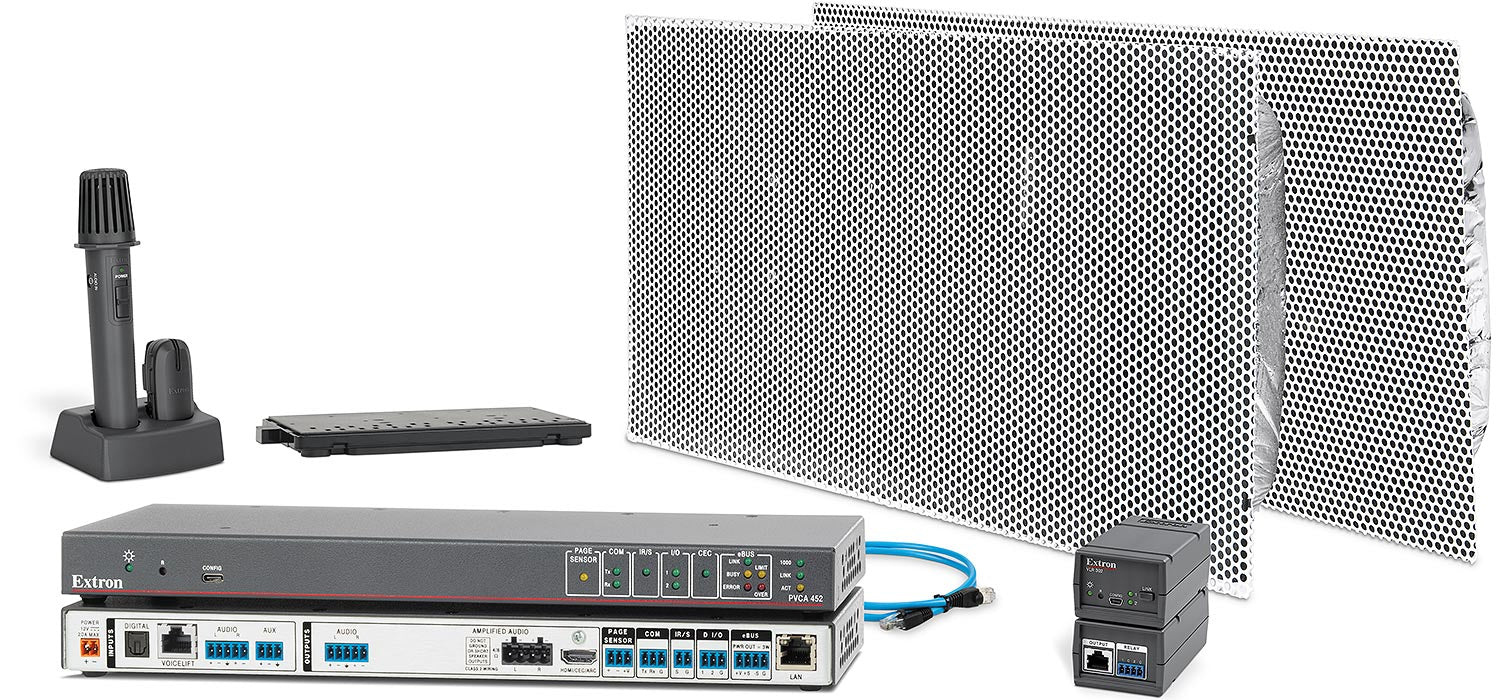

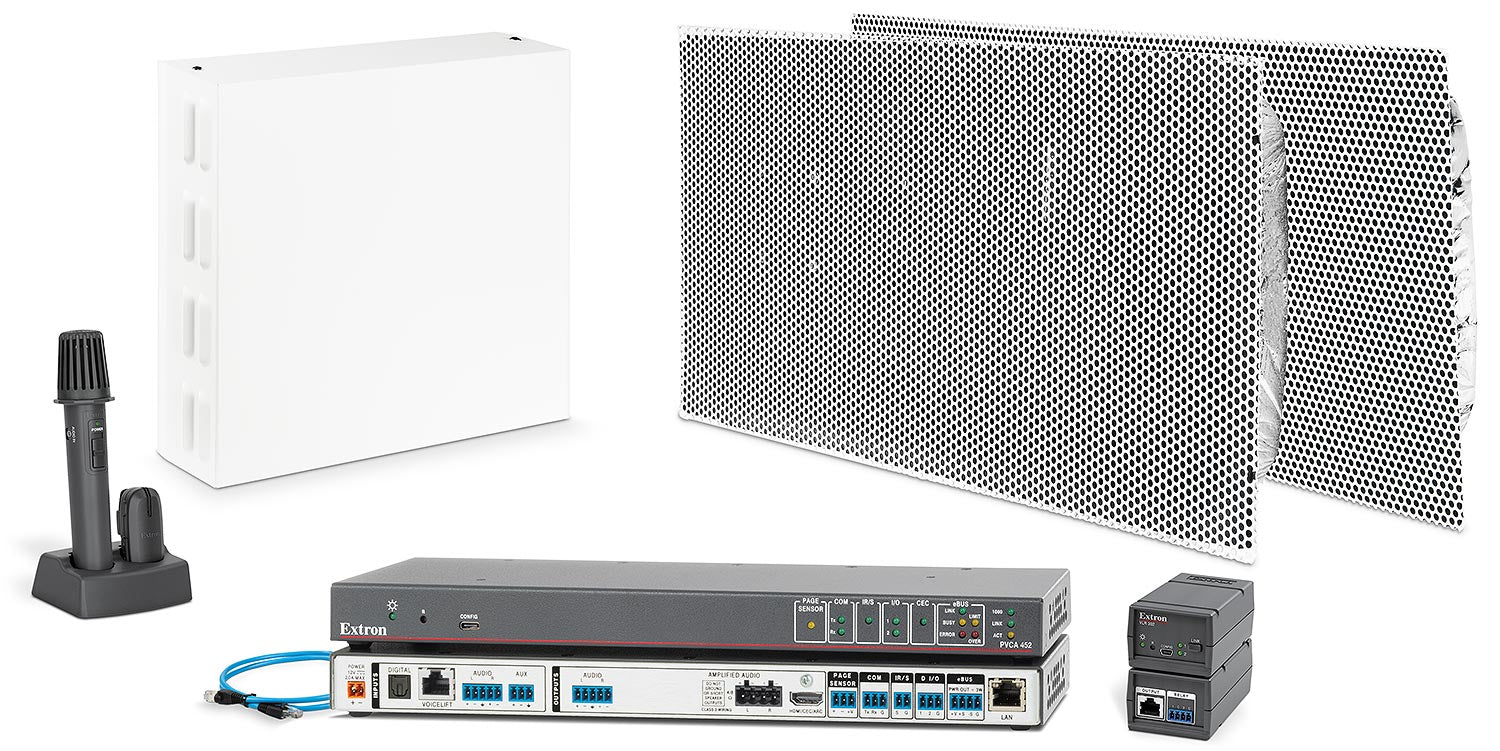

Included Components: Two VLP 302 pendant microphones, VLR 302 receiver, VLC 302 charging station, PVCA 452 controller amplifier, FF 120 Flat Field speakers (pair)

Operating Range: 40' x 40' minimum coverage

Reception Area: 1600 square feet (148.6 square meters) minimum

Radio Frequency: 1900 MHz

Amplifier Output Power: 25 watts per channel, 4/8 ohms, 1 kHz, 1% THD

Amplifier Load Impedance: 4/8 ohms, single channel or stereo

Frequency Response: 20 Hz to 20 kHz, +1 dB / -3 dB at 1 watt output, 8 ohm load

THD + Noise: 0.1%, 1 kHz, 3 dB below clipping

Signal to Noise: Greater than 90 dB, 20 Hz to 20 kHz at maximum output (unweighted), 8 ohms

Damping Factor: Greater than 75 at 8 ohms

Crosstalk: Less than -85 dB at 1 kHz

Stereo Channel Separation: Greater than 80 dB at 1 kHz

PVCA 452 Control: 1 bidirectional RS-232; 1 front panel female USB type-C (USB 2.0, high speed); paging sensor on a 3.5 mm captive screw connector, 3 pole

PVCA 452 Software: Extron Global Configurator Plus and Professional for Windows

PVCA 452 Power Supply: External; input 100-240 VAC, 50-60 Hz; output 12 VDC, 4.2 A, 50 watts

PVCA 452 Power Consumption: Device 18.16 watts; device and power supply 20.55 watts

PVCA 452 Enclosure: Metal; 1.00 in H x 13.1 in W x 3.5 in D (2.5 x 33.3 x 8.9 cm)

PVCA 452 Operating Temperature: +32 to +122 F (0 to +50 C), 10% to 90% noncondensing; convection cooled, no vents

VLP 302 Pendant Microphone: 1 mono via integrated MEMS microphones plus 1 mono unbalanced auxiliary mic input on a 3.5 mm jack; power, volume and function controls; 3.0 in H x 1.47 in W x 1.2 in D (7.6 x 3.7 x 3.0 cm); 2.2 oz (62 g) with battery

Microphone Battery: 1 AA size NiMH or alkaline; minimum 8 hours continuous use; about 5 hours to recharge a 2400 mAh NiMH cell

VLR 302 Receiver: Rack, ceiling or wall mountable; 2 normally open relays; 1 RS-232 port via RJ-45 (38400 baud, 8 data bits, 1 stop bit, no parity); 1 USB; 12 VDC, 0.2 A; 1.66 in H x 2.15 in W x 4.50 in D (4.2 x 5.5 x 11.4 cm); 0.25 lbs (0.11 kg)

VLC 302 Charging Station: External supply 110 to 130 VAC, 50-60 Hz to 5 VDC, 2.6 A regulated via USB Micro B; 5 VDC, 0.5 A; 1.5 in H x 4.4 in W x 3.4 in D (3.9 x 11.3 x 8.6 cm); 0.66 lbs (0.3 kg)

FF 120 Flat Field Speakers: 16 W (rms) continuous pink noise, 32 W (rms) continuous program; 170 degree conical coverage; 8 ohms per speaker; drops into a 2' x 2' or 2' x 4' suspended tile; 3.25 in H x 23.75 in W x 11.75 in D; 4.7 lbs (2.1 kg) each

Regulatory Compliance: EMI/EMC: CE, FCC Class B; complies with the appropriate requirements of RoHS and WEEE

Vibration: ISTA 1A in carton (International Safe Transit Association)

Warranty: 3 years parts and labor; microphone battery 90 days

Lifecycle Status: Retired by Extron
