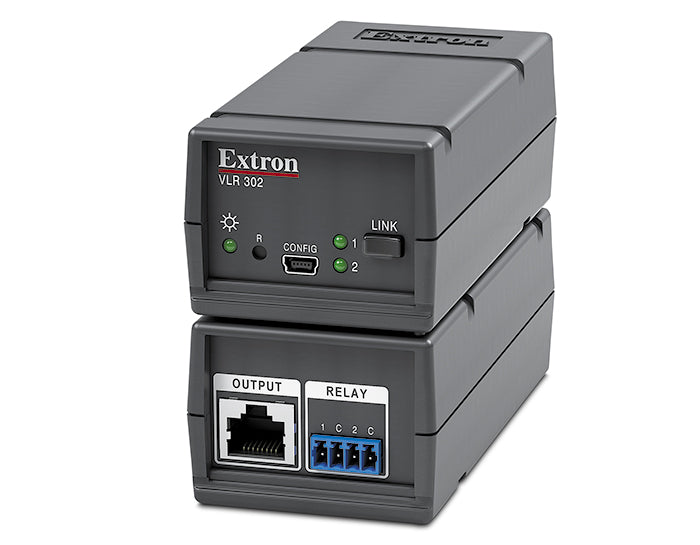

Extron VLR 302 (part number 60-1637-01) — the wireless receiver at the centre of an Extron VoiceLift Pro classroom voice amplification system.

The VLR 302 does two jobs. It pairs with up to two VLP 302 pendant or VLH 302 handheld microphones, creating an exclusive link that stops a neighbouring classroom's transmitter bleeding into the room. It then hands the audio to a PVS Series switcher down a single RJ-45 run that also carries power and control, which removes a power supply and two more cables from the install. At a quarter of a pound it can be tucked inside a PVM, USFM or WMK enclosure next to the switcher.

Key Capabilities

• Pairs with up to two VoiceLift Pro microphones per receiver
• Single RJ-45 output carries audio, power and communication to a PVS switcher
• Two normally open relays trigger Instant Alert and a second function
• RS-232 port via RJ-45 at 38400 baud, 8 data bits, 1 stop bit, no parity
• USB port on the unit for configuration
• Draws 12 VDC at 0.2 A; 0.25 lbs (0.11 kg)
• Rack, ceiling or wall mountable, or housed in a PVM, USFM or WMK enclosure

Where It Is Used

Installed with every VoiceLift Pro classroom system — in PlenumVault ceiling enclosures, WallVault wall boxes, PoleVault pole kits or a standard rack. Also ordered as a spare or replacement for existing school and campus deployments.

Specifications at a Glance

• Microphone support: up to two paired VoiceLift Pro microphones
• Control: 2 relays, 1 RS-232 via RJ-45, 1 USB
• Power: 12 VDC, 0.2 A
• Dimensions: 1.66 x 2.15 x 4.50 in (4.2 x 5.5 x 11.4 cm)
• Compliance: CE, FCC Class B, UL, c-UL

Also referenced as Extron VLR302, VLR-302, part number 60163701.
