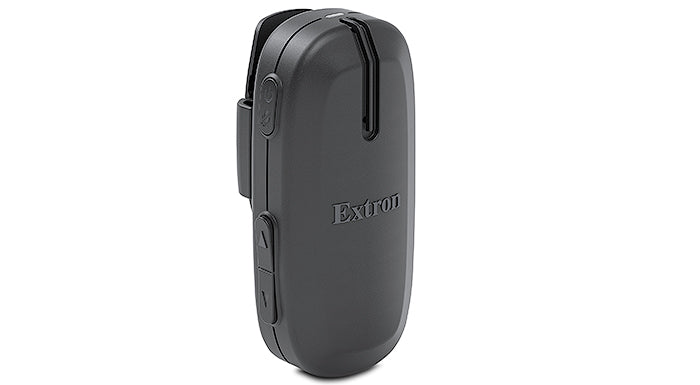

Extron VLP 302 (part number 60-1636-01) — the wireless pendant microphone for Extron VoiceLift Pro classroom voice amplification systems.

At just over two ounces with its battery fitted, the VLP 302 is light enough that an instructor forgets they are wearing it. It hangs from an adjustable lanyard or clips to clothing as a bodypack, and because VoiceLift Pro transmits on RF rather than infrared it keeps working when the wearer turns away from the receiver or stands behind a cabinet. Volume buttons sit on the body for quick level trims, and the power button doubles as a mute for private conversations.

Key Capabilities

• Integrated MEMS microphones, plus an auxiliary mic input on a 3.5 mm jack
• Auxiliary input accepts an optional lavalier or headset microphone
• Runs at least 8 hours of continuous use on one AA NiMH or alkaline cell
• A 2400 mAh NiMH cell recharges in roughly 5 hours
• Weighs 2.2 oz (62 g) with battery; 3.0 x 1.47 x 1.2 in with the clip
• Instant Alert: holding both volume buttons signals for assistance
• Meets Section 508 of the Rehabilitation Act accessibility requirements

Where It Is Used

Worn by instructors in classrooms, lecture rooms, training suites and clinical teaching spaces running a VoiceLift Pro system. Also specified as a spare or second microphone where two people share reinforcement in the same room.

Specifications at a Glance

• Controls: power, volume and function
• Battery: 1 AA NiMH or alkaline, minimum 8 hours continuous use
• Dimensions: 3.0 x 1.47 x 1.2 in (7.6 x 3.7 x 3.0 cm), depth includes the clip
• Weight: 1.2 oz (34 g) without battery, 2.2 oz (62 g) with
• Compliance: CE, FCC Class B, UL, c-UL

Also referenced as Extron VLP302, VLP-302, part number 60163601.
