Extron VLM 3002 (part number 42-255-02) — the two pendant VoiceLift Pro wireless microphone kit for Extron classroom AV systems, US and Canada version.

One receiver, two pendants. That is the practical difference here, and it covers the two situations schools run into most: two teachers sharing a room, and a lesson format where a student needs to be heard as clearly as the instructor. Both pendants pair to the single VLR 302 receiver, which hands audio, power and control to a PVS switcher down one RJ-45 cable. The VLC 302 charging station in the box docks both microphones overnight.

Key Capabilities

• Two VLP 302 pendant microphones paired to a single VLR 302 receiver
• 1900 MHz digital RF link — no line of sight needed, unlike infrared
• Rated for a 40 x 40 ft room, 1600 sq ft (148.6 sq m) minimum reception area
• Each pendant runs at least 8 hours of continuous use on one AA cell
• VLC 302 charges both microphones at once, about 5 hours per NiMH cell
• Receiver mounts in a rack, on a ceiling or on a wall and draws 12 VDC at 0.2 A
• Pairing keeps a neighbouring classroom's microphones off this receiver

Where It Is Used

Team-taught classrooms, inclusion rooms and seminar spaces already fitted with Extron classroom AV switching — school districts, community colleges, corporate learning centres and hospital education departments.

Specifications at a Glance

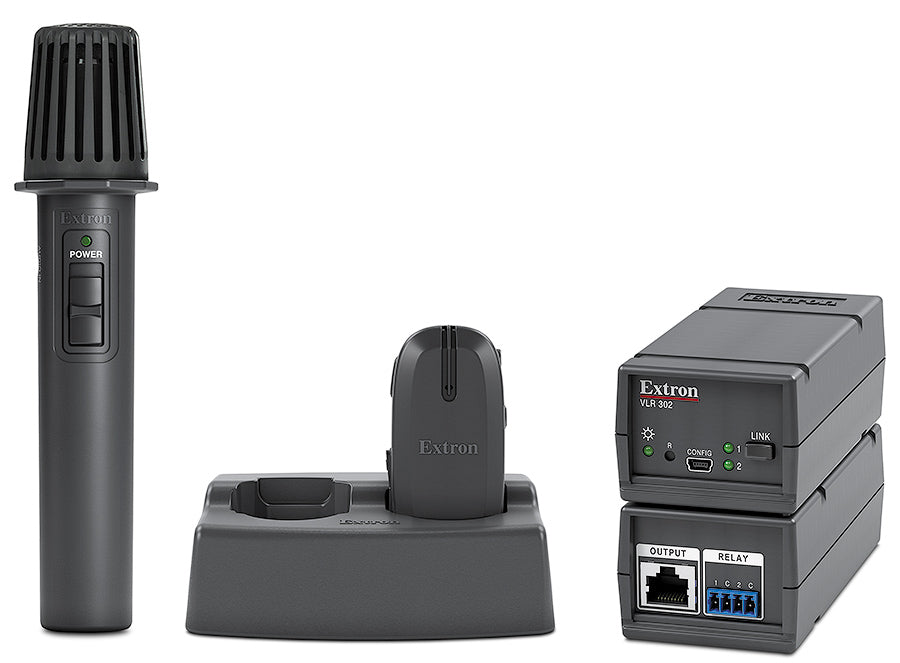

• Kit contents: two VLP 302 pendants, VLR 302 receiver, VLC 302 charger, 3 ft CATx STP cable
• Radio: 1900 MHz, 40 x 40 ft minimum coverage
• Pendant: 3.0 x 1.47 x 1.2 in (7.6 x 3.7 x 3.0 cm), 2.2 oz (62 g) with battery
• Charger: 1.5 x 4.4 x 3.4 in (3.9 x 11.3 x 8.6 cm), 0.66 lbs (0.3 kg)
• Warranty: 3 years parts and labor; 90 days on the microphone battery

Also referenced as Extron VLM3002, VLM-3002, part number 4225502.
