Extron VLM 3001 (part number 42-255-01) - the single pendant VoiceLift Pro wireless microphone kit for Extron classroom AV systems, US and Canada version.

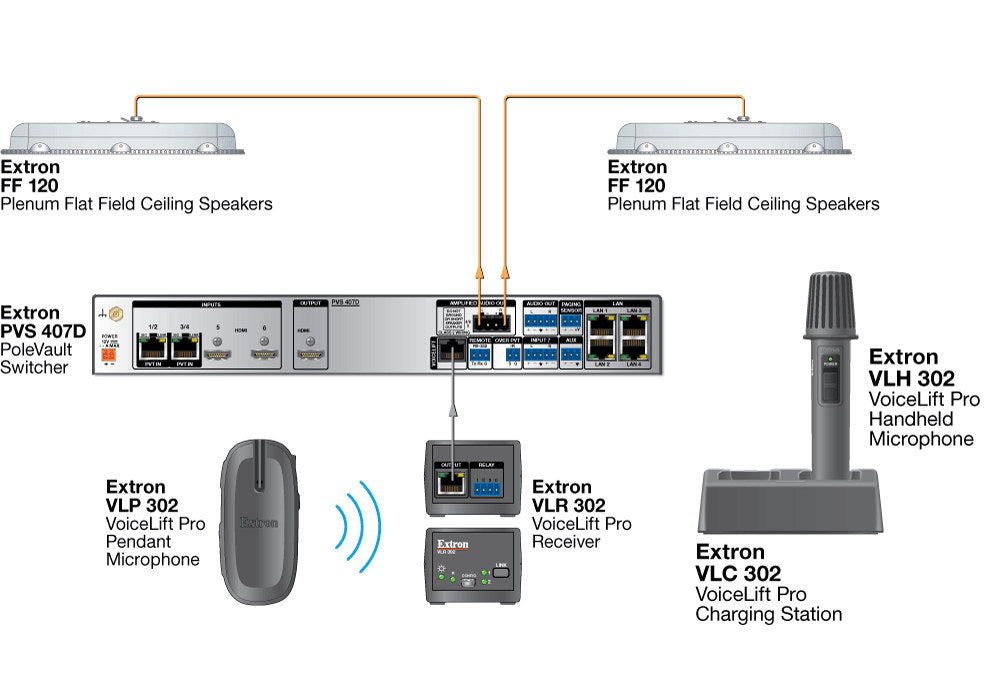

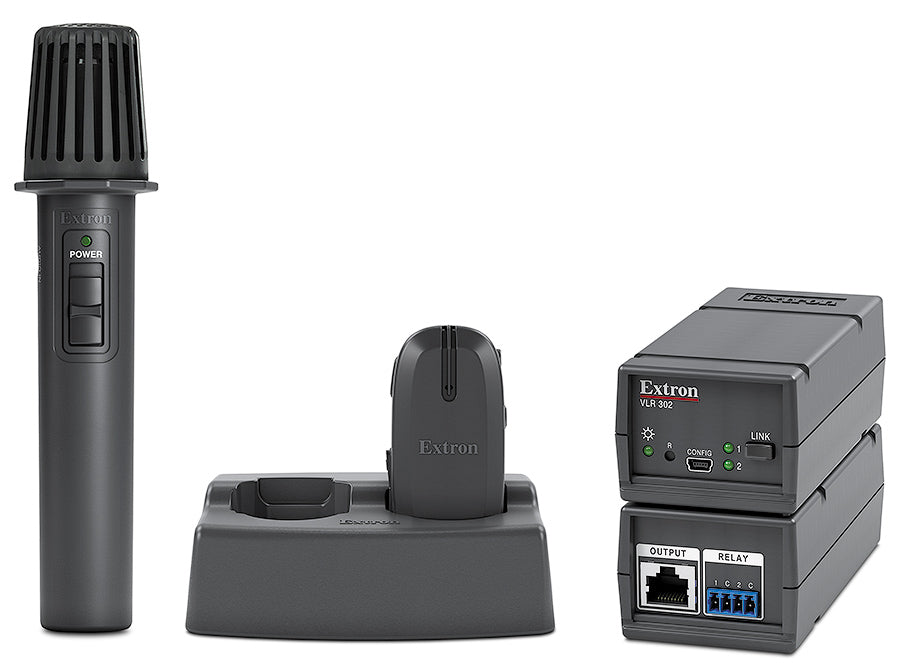

This is the microphone half of a VoiceLift Pro room, sold on its own for installs that already have amplification. In the box are a VLP 302 pendant, a VLR 302 receiver, a VLC 302 charging station and a 3 ft CATx shielded twisted pair cable to link the receiver to the switcher. One RJ-45 run carries audio, power and control, so adding voice reinforcement to an existing PVS-based system is close to plug and play.

Key Capabilities

• 1900 MHz digital RF link - no line of sight needed, unlike infrared
• Rated for a 40 x 40 ft room, 1600 sq ft (148.6 sq m) minimum reception area
• Pairing gives the microphone an exclusive tie to its own receiver
• Pendant runs at least 8 hours of continuous use on a single AA cell
• VLC 302 recharges a 2400 mAh NiMH cell in about 5 hours
• Receiver mounts in a rack, on a ceiling or on a wall and draws 12 VDC at 0.2 A
• Instant Alert lets an instructor call for help from the pendant

Where It Is Used

Added to WallVault Digital, PlenumVault Digital and other Extron classroom AV systems that already have switching and amplification, in schools, colleges, corporate training rooms and clinical teaching spaces.

Specifications at a Glance

• Kit contents: VLP 302 pendant, VLR 302 receiver, VLC 302 charger, 3 ft CATx STP cable
• Radio: 1900 MHz, 40 x 40 ft minimum coverage
• Pendant: 3.0 x 1.47 x 1.2 in (7.6 x 3.7 x 3.0 cm), 2.2 oz (62 g) with battery
• Receiver: 1.66 x 2.15 x 4.50 in (4.2 x 5.5 x 11.4 cm), 0.25 lbs (0.11 kg)
• Warranty: 3 years parts and labor; 90 days on the microphone battery

Frequently asked questions about the Extron VLM 3001 VoiceLift Pro Wireless Microphone Kit

Also referenced as Extron VLM3001, VLM-3001, part number 4225501.
