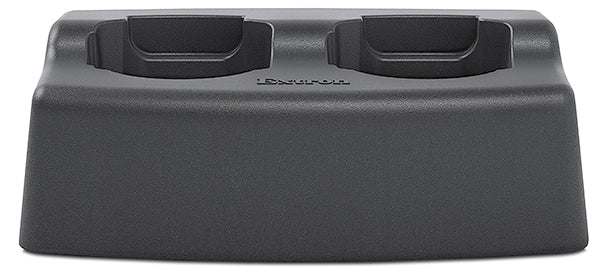

Extron VLC 302 (part number 60-1638-01) — the two-bay charging station for Extron VoiceLift Pro wireless microphones.

A classroom microphone that is flat by third period is worse than no microphone at all, so the charger needs a permanent home on the desk rather than a drawer. The VLC 302 gives it one. Each of the two bays accepts either a VLP 302 pendant or a VLH 302 handheld, so a room running two microphones can drop both in at the end of the day and find them ready the next morning. The polycarbonate shell also keeps the microphones from being knocked around between lessons.

Key Capabilities

• Charges up to two VoiceLift Pro microphones at the same time

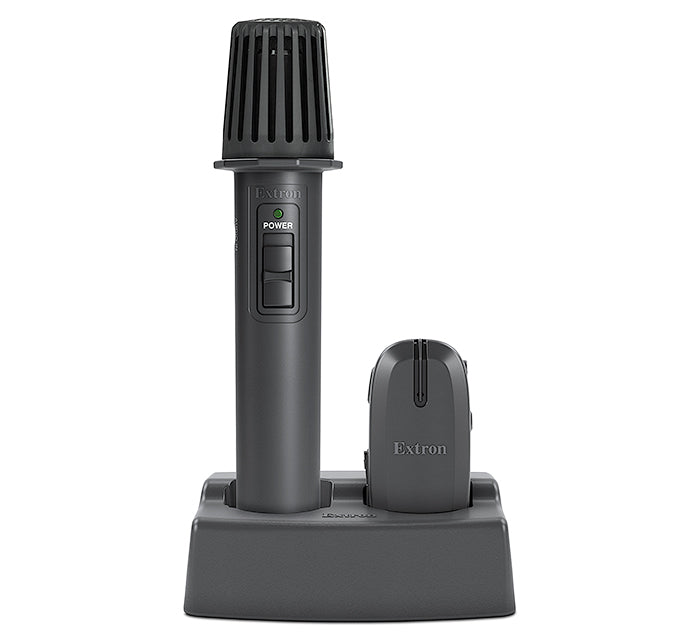

• Each bay takes either a VLP 302 pendant or a VLH 302 handheld
• Mini-B USB power port works with a wide range of supplies and sources
• Supplied power adapter: 110 to 130 VAC in, 5 VDC at 2.6 A regulated out
• Draws just 5 VDC at 0.5 A in use
• Durable polycarbonate construction protects microphones when not in use
• Sits on a desk, table or shelf — no mounting hardware needed

Where It Is Used

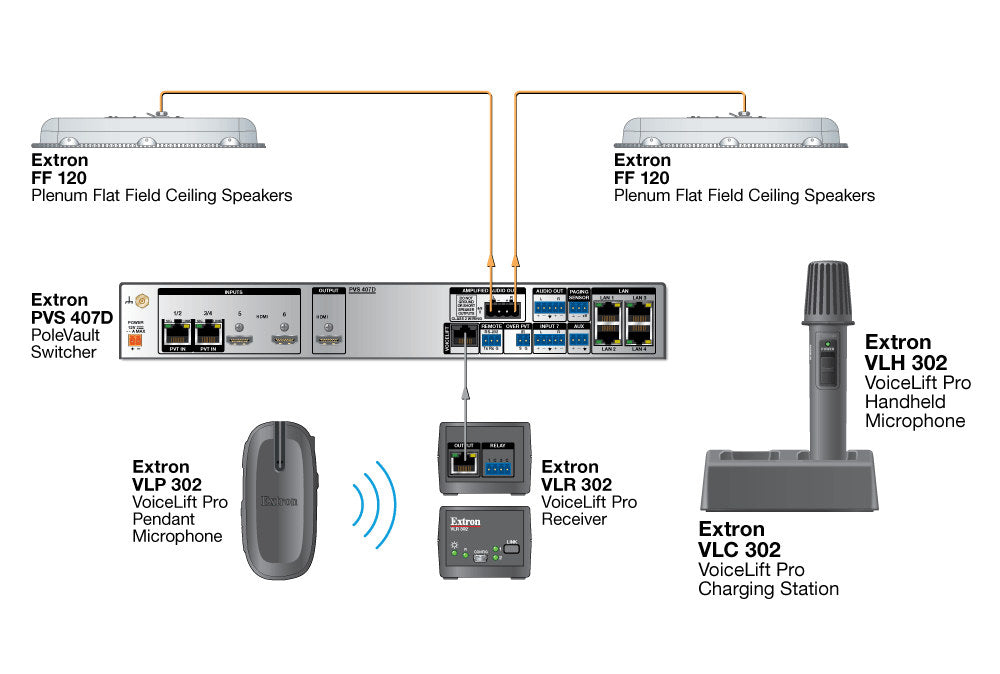

Anywhere a VoiceLift Pro system is installed: classrooms, lecture and seminar rooms, training suites and clinical teaching spaces. Typically kept on the instructor's desk or a shelf near the equipment enclosure so microphones are docked between sessions.

Specifications at a Glance

• Bays: two, pendant or handheld
• Power input: 5 VDC, 0.5 A via USB Micro B
• Dimensions: 1.5 x 4.4 x 3.4 in (3.9 x 11.3 x 8.6 cm)
• Weight: 0.66 lbs (0.3 kg)
• Compliance: CE, UL, c-UL; ENERGY STAR qualified power supply

Also referenced as Extron VLC302, VLC-302, part number 60163801.
