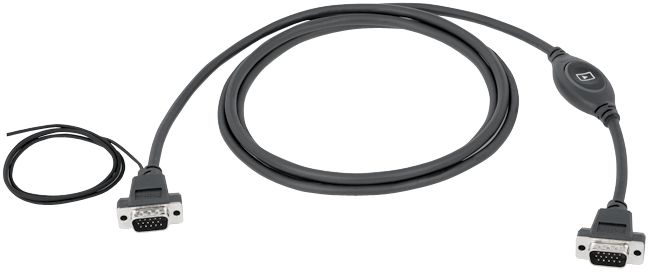

Extron VGA SMC/6 (part number 26-686-06) — the 6' (1.8 m) analogue member of the Extron SM Series Show Me cable family.

A Show Me cable is the part of a collaboration system a presenter actually touches. Rather than asking people to find the right input on a control panel, the cable itself carries a Share button that hands the connected source to the main presentation display. The VGA SMC/6 is the VGA version of that idea: a male 15-pin HD connector at each end, resolutions supported up to 1080p, and a 6' (1.8 m) length sized for a seat at a collaboration table. Extron has since retired this part in favour of the digital SM cables.

Key Capabilities

• Share button hands the connected source to the main presentation display
• Male 15-pin HD connector at each end
• Supports computer video resolutions up to 1080p
• Rated 30 V with an 80 °C temperature rating
• Carries UL regulatory compliance
• Backed by Extron's three-year product warranty

Where It Is Used

Collaboration and group-work tables in classrooms and training rooms, huddle spaces built around a shared display, and any teaching space where several participants need to take the screen in turn without walking to a control panel.

Specifications at a Glance

• Cable length: 6' (1.8 m)
• Connectors: 1 male 15-pin HD to 1 male 15-pin HD
• Resolution range: up to 1080p
• Voltage: 30 V; temperature rating 80 °C; UL
• Status: retired by Extron

Also referenced as Extron VGASMC6, VGA-SMC-6, part number 2668606.
