Extron VGA M-M MD/35 VGA Male-to-Male Cable
- • 35' (10.6 m) male-to-male VGA cable on Extron MHRVGA cable
- • Molded 15-pin HD male connectors at both ends
- • Pin 9 +5 VDC and ID bits carried end to end (VESA DDC v3 source)
- • Overall foil shield inside the molded body limits EMI pickup
- • Grounded VGA shell adds ESD protection at both ends
- • Certified by Extron for AVEdge, Cable Cubby and HSA access enclosures
- • Current Extron part 26-238-17, stocked and supported by Ampronix
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

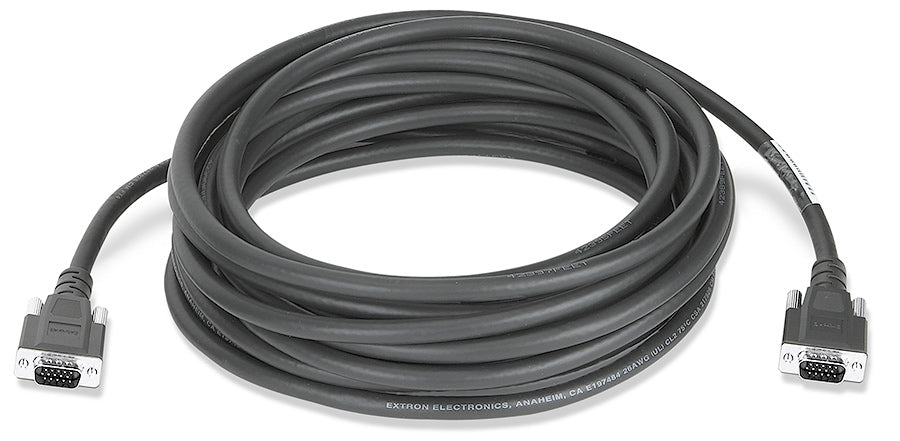

Extron VGA M-M MD/35 (part number 26-238-17) — a 35' (10.6 m) male-to-male VGA cable built on Extron MHRVGA cable.
Thirty-five feet is a ceiling-projector length. The cable leaves the rack, climbs a wall, crosses a plenum and drops to a mount, and it does that in one piece so there is no coupler in the middle to hunt for later. Both ends terminate in a 15-pin HD male connector. Extron builds the assembly on MHRVGA cable with an overall foil shield carried right through the injection-molded connector bodies, and grounds the shell for ESD protection at both terminations.
Key Capabilities
- Carries computer video and ID bit signals across a 35' (10.6 m) run
- Pin 9 +5 VDC and the ID bits travel end to end when the graphics card meets VESA DDC version 3
- Molded 15-pin HD male connectors at both ends
- VGA shell tied to ground for ESD protection
- Injection-molded body with an overall foil shield for EMI isolation
- Certified by Extron for AVEdge, Cable Cubby and HSA access enclosures
Where It Is Used
Lecture halls and training rooms with ceiling-mounted projectors, boardrooms with a rack in an adjacent closet, command centres feeding wall displays, and medical or laboratory suites where the source is deliberately kept away from the viewing station.
Specifications at a Glance
- Cable length: 35' (10.6 m)
- Connectors: 2 male 15-pin HD, molded
- Cable: Extron MHRVGA
- DDC: pin 9 +5 VDC and all ID bits carried through (VESA DDC v3 source required)
- Status: current Extron part number
Also referenced as Extron VGAMMMD35, VGA-M-M-MD-35, part number 2623817.
