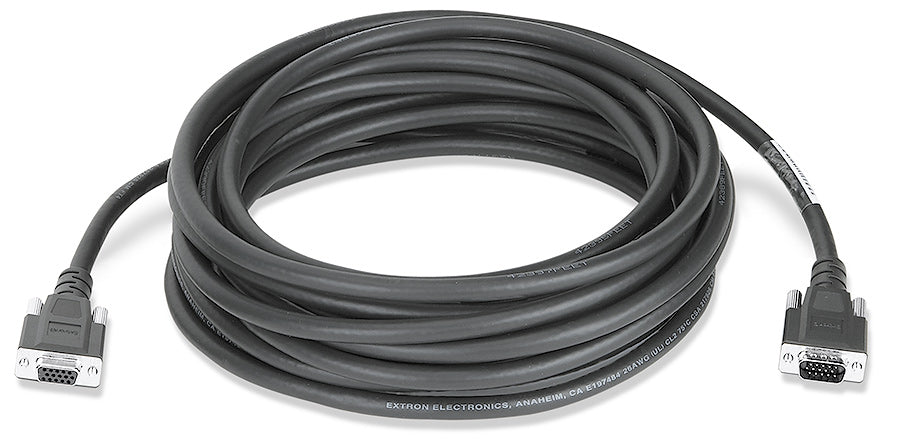

Extron VGA M-F MD/35 VGA Male-to-Female Cable
- • Extron VGA M-F MD/35 35 ft VGA male-female cable
- • Molded 15-pin HD male to 15-pin HD female
- • Foil shield, grounded shell, passes DDC ID bits
- • Sales, replacement and exchange
- • Part# 26-112-28 / 2611228
Product discontinued.
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details
Extron VGA M-F MD/35 (part number 26-112-28) - a 35' (10.6 m) male-to-female VGA extension built on Extron MHRVGA cable.
Ceiling projectors and far-wall displays routinely sit more than thirty feet from the equipment rack, and this length covers that distance in one piece with no coupler in the middle to introduce a discontinuity. The assembly presents a 15-pin HD male at one end and a 15-pin HD female at the other, so it lengthens an existing VGA lead. Extron molds both connector bodies over an overall foil shield, which is what keeps a run this long usable in a duct shared with power and control wiring.
Key Capabilities
- Carries computer video and ID bit signals across a 35' (10.6 m) run
- Pin 9 +5 VDC and the ID bits travel end to end when the graphics card meets VESA DDC version 3
- Molded 15-pin HD male and 15-pin HD female terminations
- VGA shell tied to ground for ESD protection
- Injection-molded body with an overall foil shield for EMI isolation
- Certified by Extron for AVEdge, Cable Cubby and HSA access enclosures
Where It Is Used
Auditoriums and lecture halls with ceiling-mounted projectors, divisible ballrooms, command and control rooms with wall-mounted displays, and medical imaging suites where the workstation and the viewing monitor sit at opposite ends of the space.
Specifications at a Glance
- Cable length: 35' (10.6 m)
- Connectors: 1 male 15-pin HD to 1 female 15-pin HD, molded
- Cable: Extron MHRVGA
- DDC: pin 9 +5 VDC and all ID bits carried through (VESA DDC v3 source required)
- Status: retired by Extron
Frequently asked questions about the Extron VGA M-F MD/35 35 ft VGA Male-Female Molded Cable
Does Ampronix sell the Extron VGA M-F MD/35 35 ft VGA Male-Female Molded Cable?
Yes. Ampronix is an authorized Extron distributor and sells the Extron VGA M-F MD/35 35 ft VGA Male-Female Molded Cable (26-112-28). Call Ampronix for a quote.
Does Ampronix offer replacement and exchange for the Extron VGA M-F MD/35 35 ft VGA Male-Female Molded Cable?
Yes. Ampronix provides sales, replacement and exchange for the Extron VGA M-F MD/35 35 ft VGA Male-Female Molded Cable. Call Ampronix for a quote.
Is the Extron VGA M-F MD/35 35 ft VGA Male-Female Molded Cable listed under other names?
Yes. The Extron VGA M-F MD/35 35 ft VGA Male-Female Molded Cable is also referenced as Extron VGAMFMD35, VGA-M-F-MD-35, part number 2611228.
What are the key features of the Extron VGA M-F MD/35 35 ft VGA Male-Female Molded Cable?
Key points: Carries computer video and ID bit signals across a 35' (10.6 m) run; Pin 9 +5 VDC and the ID bits travel end to end when the graphics card meets VESA DDC version 3; Molded 15-pin HD male and 15-pin HD female terminations; VGA shell tied to ground for ESD protection. Call Ampronix to confirm details for your application.
Also referenced as Extron VGAMFMD35, VGA-M-F-MD-35, part number 2611228.
