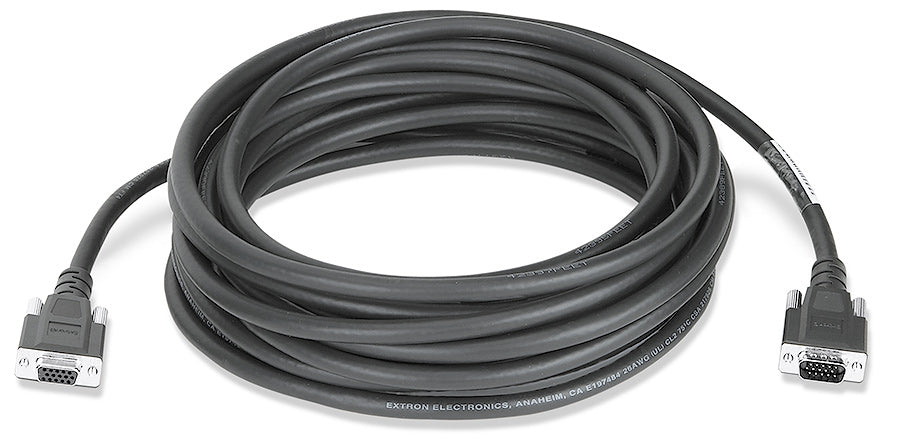

Extron VGA M-F MD/3 VGA Male-to-Female Cable
- • Extron VGA M-F MD/3 3 ft VGA male-female cable
- • Molded 15-pin HD male to 15-pin HD female
- • Foil shield, grounded shell, passes DDC ID bits
- • Sales, replacement and exchange
- • Part# 26-112-17 / 2611217
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details
Extron VGA M-F MD/3 (part number 26-112-17) - a short 3' (90 cm) male-to-female VGA jumper on Extron MHRVGA cable with molded 15-pin HD ends.
Short VGA jumpers do the unglamorous work inside furniture: linking a wall plate to a switcher input, breaking out of a floor box, or giving a rack-mounted device enough slack to slide forward on its rails. At 3' (90 cm) this assembly keeps that slack under control instead of leaving a coiled six-footer behind the panel. The male-to-female arrangement extends an existing VGA lead rather than terminating the run, and the molded connector bodies survive repeated reseating.
Key Capabilities
- Carries computer video and ID bit signals across a 3' (90 cm) run
- Pin 9 +5 VDC and the ID bits travel end to end when the graphics card meets VESA DDC version 3
- Molded 15-pin HD male and 15-pin HD female terminations
- VGA shell tied to ground for ESD protection
- Injection-molded body with an overall foil shield for EMI isolation
- Certified by Extron for AVEdge, Cable Cubby and HSA access enclosures
Where It Is Used
Short runs inside Cable Cubby and AVEdge enclosures, tie-lines between an input plate and a switcher, credenza-mounted sources in boardrooms, and classroom lecterns where the laptop sits inches from the connection panel. It is also a tidy way to gender-change a VGA run at the rack.
Specifications at a Glance
- Cable length: 3' (90 cm)
- Connectors: 1 male 15-pin HD to 1 female 15-pin HD, molded
- Cable: Extron MHRVGA
- DDC: pin 9 +5 VDC and all ID bits carried through (VESA DDC v3 source required)
- Status: retired by Extron
Frequently asked questions about the Extron VGA M-F MD/3 3 ft VGA Male-Female Molded Cable
Does Ampronix sell the Extron VGA M-F MD/3 3 ft VGA Male-Female Molded Cable?
Yes. Ampronix is an authorized Extron distributor and sells the Extron VGA M-F MD/3 3 ft VGA Male-Female Molded Cable (26-112-17). Call Ampronix for a quote.
Does Ampronix offer replacement and exchange for the Extron VGA M-F MD/3 3 ft VGA Male-Female Molded Cable?
Yes. Ampronix provides sales, replacement and exchange for the Extron VGA M-F MD/3 3 ft VGA Male-Female Molded Cable. Call Ampronix for a quote.
Is the Extron VGA M-F MD/3 3 ft VGA Male-Female Molded Cable listed under other names?
Yes. The Extron VGA M-F MD/3 3 ft VGA Male-Female Molded Cable is also referenced as Extron VGAMFMD3, VGA-M-F-MD-3, part number 2611217.
What are the key features of the Extron VGA M-F MD/3 3 ft VGA Male-Female Molded Cable?
Key points: Carries computer video and ID bit signals across a 3' (90 cm) run; Pin 9 +5 VDC and the ID bits travel end to end when the graphics card meets VESA DDC version 3; Molded 15-pin HD male and 15-pin HD female terminations; VGA shell tied to ground for ESD protection. Call Ampronix to confirm details for your application.
Also referenced as Extron VGAMFMD3, VGA-M-F-MD-3, part number 2611217.
