Extron VGA M-F MD/15 VGA Male to Female Cable 15 ft 26-112-01
Extron VGA M-F MD/15 VGA Male to Female Cable 15 ft 26-112-01

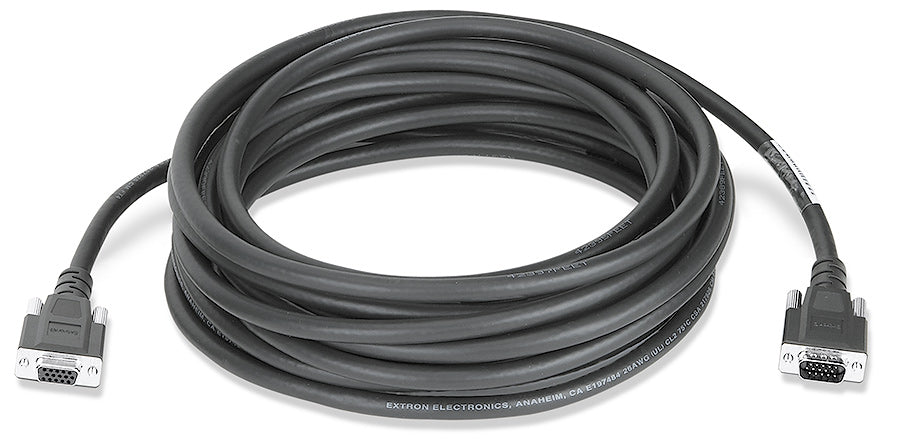

Extron VGA M-F MD/15 Male to Female VGA Cable, Molded
- • Extron VGA M-F MD/15 15 ft VGA male-female cable
- • Molded 15-pin HD male to 15-pin HD female
- • Foil shield, grounded shell, passes DDC ID bits
- • Sales, replacement and exchange
- • Part# 26-112-01 / 2611201
Product discontinued.
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details
Extron VGA M-F MD/15 (part number 26-112-01) - a 15 ft (4.5 m) VGA male to female extension cable with molded 15-pin HD connectors. Extron has retired this part number.
A male-to-female VGA cable is what you reach for when a source has to reach a wall plate, a table box or an existing female VGA socket without an adapter in the middle. Extron built this one on MHRVGA cable, so it holds high resolution computer video over the run rather than softening it, and it passes all ID bits along with the +5 VDC on Pin 9 - which is what lets a display's EDID actually get back to a VESA DDC version 3 compliant graphics card. The connector shells are grounded and the moldings carry an overall foil shield.
Key Capabilities
- High performance transmission of computer video and ID bit signals.
- Pin 9 is passed through from end to end, carrying +5 VDC and ID bits.
- Built on Extron MHRVGA cable, Extron part number 22-220-03.
- Terminated with molded 15-pin HD male and female VGA connectors.
- VGA shell grounded for electrostatic discharge protection.
- Injection mold with an overall foil shield for improved EMI isolation.
- NEC CM rated, non-plenum cable; certified for AVEdge, Cable Cubby and HSA enclosures.
Where It Is Used
Legacy meeting rooms and classrooms with VGA wall plates and table boxes, training suites, Cable Cubby and AVEdge surface enclosures, and service work on installed analog systems that still route computer video over VGA.
Specifications at a Glance
- Length: 15 ft (4.5 m), measured tip to tip including connectors
- Connectors: molded 15-pin HD male to 15-pin HD female
- Cable: Extron MHRVGA, NEC CM rated, non-plenum
- Pin 9: passed through end to end
- Lifecycle: retired by Extron
Frequently asked questions about the Extron VGA M-F MD/15 VGA Male to Female Cable 15 ft
Does Ampronix sell the Extron VGA M-F MD/15 VGA Male to Female Cable 15 ft?
Yes. Ampronix is an authorized Extron distributor and sells the Extron VGA M-F MD/15 VGA Male to Female Cable 15 ft (26-112-01). Call Ampronix for a quote.
Does Ampronix offer replacement and exchange for the Extron VGA M-F MD/15 VGA Male to Female Cable 15 ft?
Yes. Ampronix provides sales, replacement and exchange for the Extron VGA M-F MD/15 VGA Male to Female Cable 15 ft. Call Ampronix for a quote.
Is the Extron VGA M-F MD/15 VGA Male to Female Cable 15 ft listed under other names?
Yes. The Extron VGA M-F MD/15 VGA Male to Female Cable 15 ft is also referenced as Extron VGAMFMD15, VGA-M-F-MD-15, part number 2611201.
What are the key features of the Extron VGA M-F MD/15 VGA Male to Female Cable 15 ft?
Key points: High performance transmission of computer video and ID bit signals; Pin 9 is passed through from end to end, carrying +5 VDC and ID bits; Built on Extron MHRVGA cable, Extron part number 22-220-03; Terminated with molded 15-pin HD male and female VGA connectors. Call Ampronix to confirm details for your application.
Also referenced as Extron VGAMFMD15, VGA-M-F-MD-15, part number 2611201.
Related: Extron products, Video Solutions.
