Extron VGA-A M-M MD/35 VGA and Audio Cable
- • Extron VGA-A M-M MD/35 molded VGA and audio cable 35 ft
- • Molded 15-pin HD male ends with 3.5 mm stereo leads
- • Audio leads 24 in and 8 in, foil shielded body
- • Sales, replacement and exchange
- • Part# 26-490-07 / 2649007
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

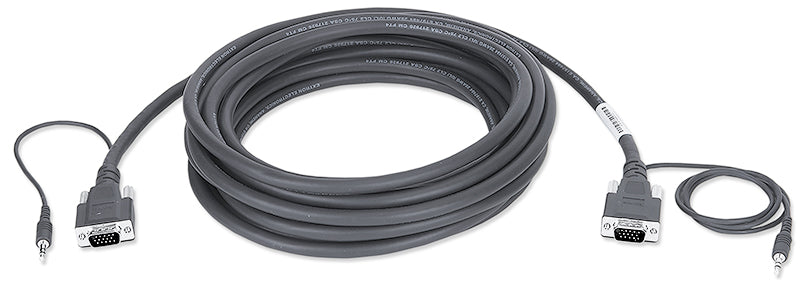

Extron VGA-A M-M MD/35 (part number 26-490-07) - a 35' (10.6 m) male-to-male VGA cable with an analogue stereo audio lead built in.
This is a ceiling-projector length that also has to deliver sound. Video rides Extron MHRVGA cable between molded 15-pin HD male connectors with the foil shield carried through the termination; audio rides a stereo mini plug lead at each end. Over a run this long the grounded shell matters, because a cable crossing a plenum picks up whatever is radiating from the lighting circuits beside it, and the shield needs a path back to chassis rather than into the audio pair.
Key Capabilities
- Carries computer video, analogue stereo audio and ID bit signals in one 35' (10.6 m) assembly
- Pin 9 +5 VDC and the ID bits travel end to end when the graphics card meets VESA DDC version 3
- Molded 15-pin HD male connectors plus 3.5 mm stereo mini plugs
- Audio lead measures 24 inches on one end and 8 inches on the other
- VGA shell tied to ground for ESD protection
- Injection-molded body with an overall foil shield for EMI isolation
Where It Is Used
Lecture halls and large classrooms with ceiling-mounted projectors, boardrooms served from an adjacent equipment closet, chapels and multipurpose halls, and briefing rooms where both picture and sound come from one presenter position.
Specifications at a Glance
- Cable length: 35' (10.6 m)
- Connectors: 2 male 15-pin HD molded, each with a 3.5 mm stereo mini plug lead
- Cable: Extron MHRVGA
- Audio pigtails: 24 in and 8 in
- Status: current Extron part number
Frequently asked questions about the Extron VGA-A M-M MD/35 35 ft VGA & Audio Molded Cable
Does Ampronix sell the Extron VGA-A M-M MD/35 35 ft VGA & Audio Molded Cable?
Yes. Ampronix is an authorized Extron distributor and sells the Extron VGA-A M-M MD/35 35 ft VGA & Audio Molded Cable (26-490-07). Call Ampronix for a quote.
Does Ampronix offer replacement and exchange for the Extron VGA-A M-M MD/35 35 ft VGA & Audio Molded Cable?
Yes. Ampronix provides sales, replacement and exchange for the Extron VGA-A M-M MD/35 35 ft VGA & Audio Molded Cable. Call Ampronix for a quote.
Is the Extron VGA-A M-M MD/35 35 ft VGA & Audio Molded Cable listed under other names?
Yes. The Extron VGA-A M-M MD/35 35 ft VGA & Audio Molded Cable is also referenced as Extron VGAAMMMD35, VGA-A-M-M-MD-35, part number 2649007.
What are the key features of the Extron VGA-A M-M MD/35 35 ft VGA & Audio Molded Cable?
Key points: Carries computer video, analogue stereo audio and ID bit signals in one 35' (10.6 m) assembly; Pin 9 +5 VDC and the ID bits travel end to end when the graphics card meets VESA DDC version 3; Molded 15-pin HD male connectors plus 3.5 mm stereo mini plugs; Audio lead measures 24 inches on one end and 8 inches on the other. Call Ampronix to confirm details for your application.
Also referenced as Extron VGAAMMMD35, VGA-A-M-M-MD-35, part number 2649007.
