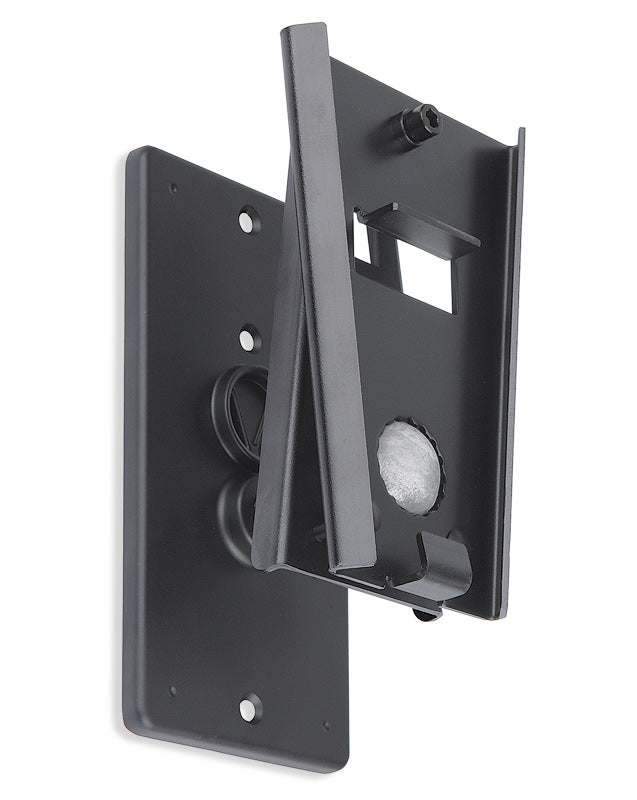

Extron V-Lock Wall Bracket (part number 70-567-02) — black replacement V-Lock wall assembly, supplied as a pair, for the System INTEGRATOR SI 3 surface mount speaker.

V-Lock exists because hanging a surface mount speaker is otherwise a two-handed job done one-handed at height. The wall plate goes up first, on its own, at eye level and with both hands free. The speaker then lifts onto the plate and slides down into a machined groove, where it locks under its own weight — much closer to hanging a picture than to conventional bracket work. Aiming is handled afterwards by a hex cap screw behind the Extron logo badge, so the speaker can be angled and re-angled without anyone supporting its weight. That same concealed screw is the theft deterrent: without the hex tool the speaker will not come off the wall. This part supplies the wall-mounted half of that system for the SI 3 — wall plate and V-lock groove — as a replacement or spare.

Key Capabilities

• Patented V-Lock groove takes the speaker's own bracket and locks it under gravity.
• Kit contains two individually packed wall mount assemblies, one per speaker, plus an Allen hex tool.
• Wall plate carries two primary and four secondary mounting holes.
• Wiring access hole routes speaker cable through the plate.
• Hex cap screw sets the speaker angle and then locks it — also the anti-theft feature.
• Supports vertical or horizontal speaker placement over a wide positioning arc.

Where It Is Used

Classrooms, training rooms, small meeting spaces and library or study areas fitted with SI 3 surface mount speakers — typically as a service part when a bracket is damaged during refurbishment, when speakers are relocated, or when a site keeps spares for a large estate of identical rooms.

Specifications at a Glance

• Compatible speaker: System INTEGRATOR SI 3
• Sold as: pair, black
• Kit contents: two wall mount assemblies plus Allen hex tool
• Wall plate holes: 2 primary, 4 secondary
• Extron limited warranty: five years from date of purchase

Also referenced as Extron VLockWallBracket, V-Lock-Wall-Bracket, part number 7056702.
