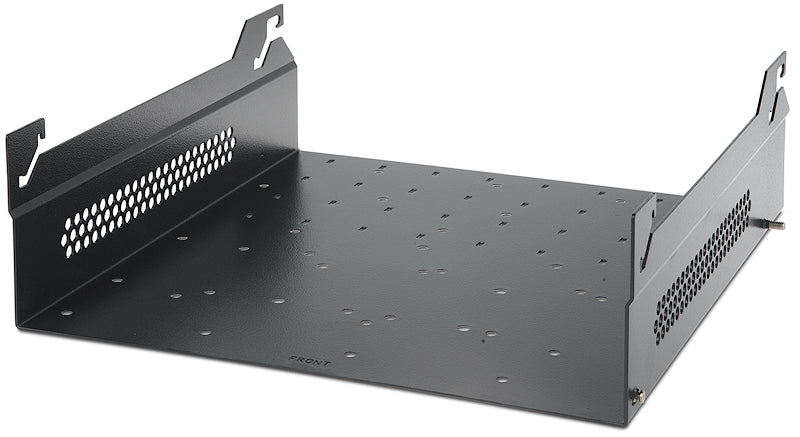

Extron UTS 150 (part number 70-1028-02) — the secondary shelf in the UTS 100 Series under-table shelf system, in gray.

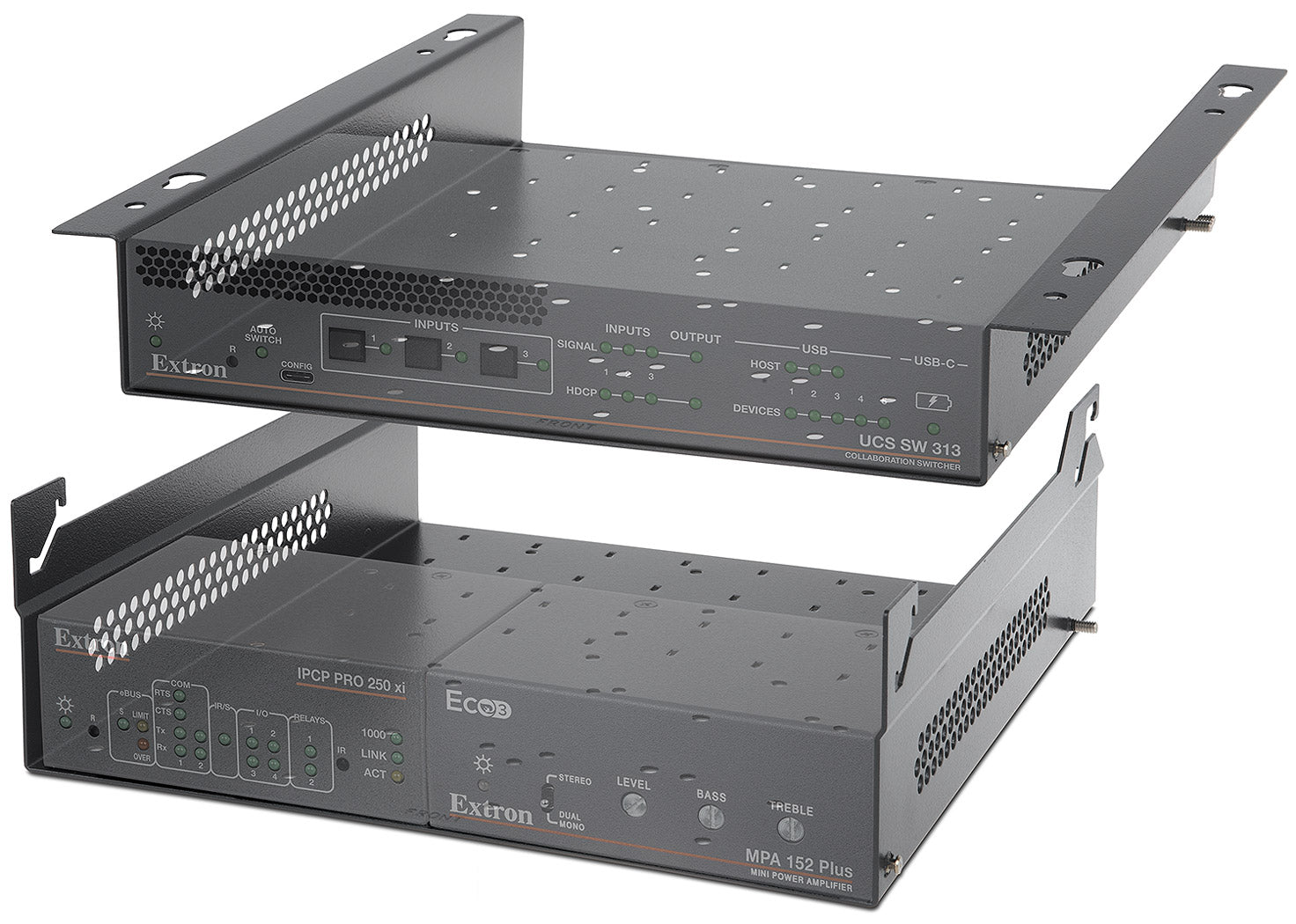

This is the expansion unit, not a standalone shelf. It connects to a UTS 100 primary shelf that is already fixed under the furniture, using the series' hook-and-post arrangement, and each one added gives another half-rack-width tray to work with. Extron notes that the assembly grows by 1.84 inches for every extra UTS 150, so the clearance below the table can be checked in advance. Like the primary shelf it accepts half-, quarter- and eighth-rack width products, and the 20 lbs (9.1 kg) rating applies to the whole stack — shelves and equipment together — rather than to each shelf. Steel construction, gray powder coat, matched to the UTS 100 and the rest of Extron's mounting range.

Key Capabilities

• Secondary shelf that expands a UTS 100 primary shelf

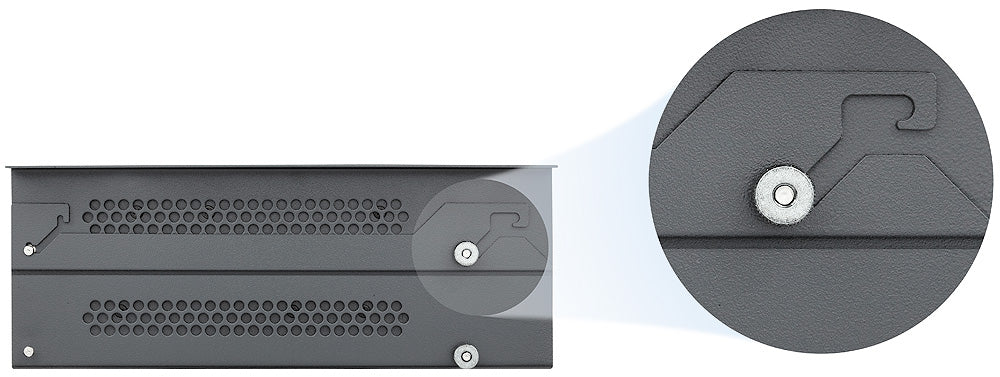

• Hook-and-post connection, no separate mounting to furniture
• Adds 1.84 in of height per additional UTS 150 in the stack

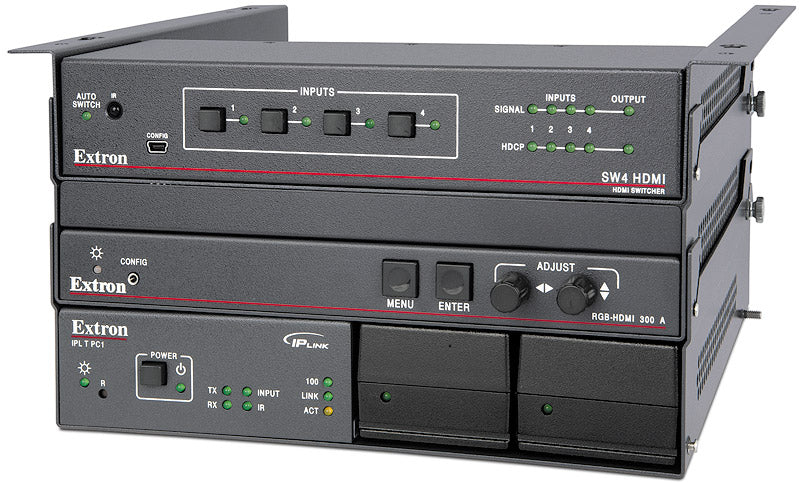

• Takes half-, quarter- and eighth-rack width Extron products
• 9.45 in L x 8.99 in W x 2.94 in H; 1.64 lbs
• Shares the 20 lbs (9.1 kg) total system limit; gray powder coat

Where It Is Used

Adding capacity to under-table installations already built on a UTS 100: conference and training tables, lecterns, classroom stations and clinical desks where a second or third device has to be mounted without rebuilding the original assembly.

Specifications at a Glance

• Model: Extron UTS 150, part number 70-1028-02 (Secondary Shelf, gray)
• Enclosure dimensions: 9.45 in L x 8.99 in W x 2.94 in H (24.0 x 22.8 x 7.5 cm)
• Weight: 1.64 lbs; steel
• Maximum load: 20 lbs (9.1 kg) total system weight
• Safety CE, RoHS; Limited Lifetime Performance warranty

Also referenced as Extron UTS150, UTS-150, part number 70102802.
