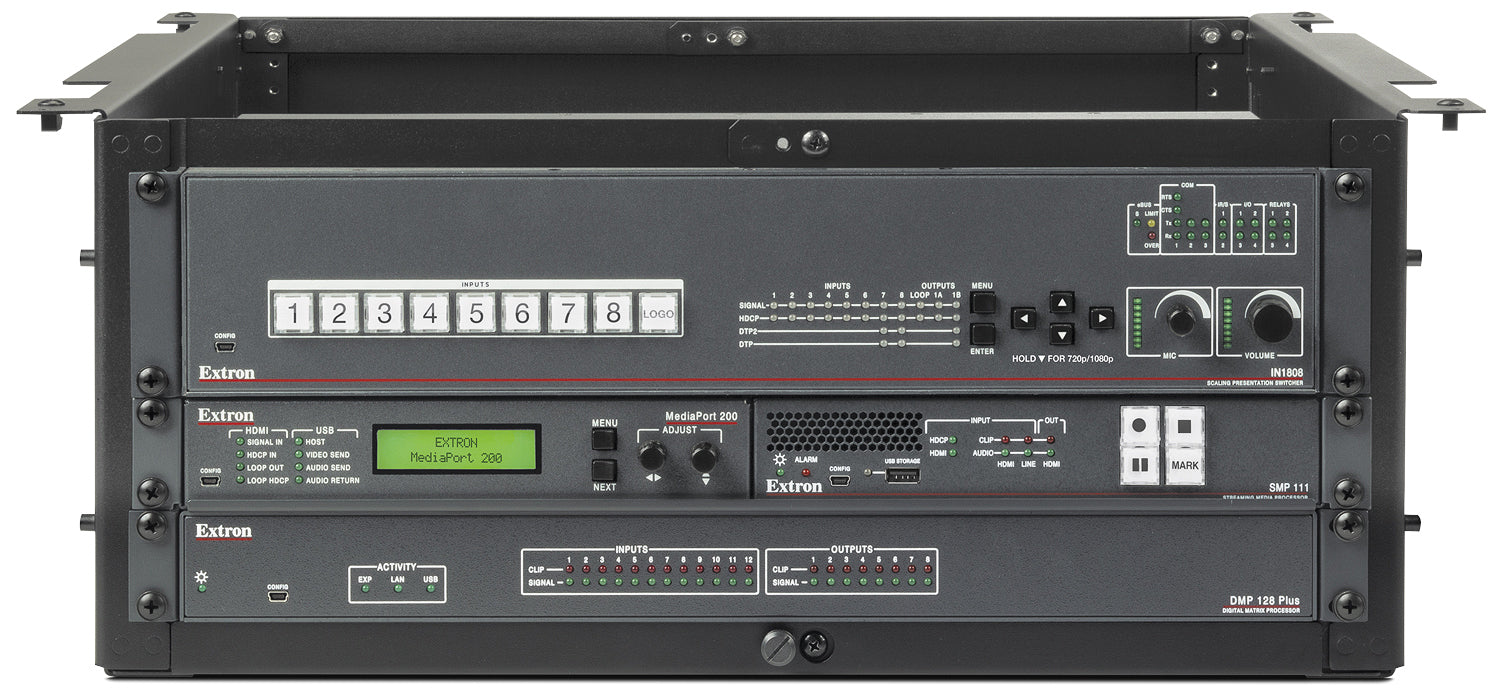

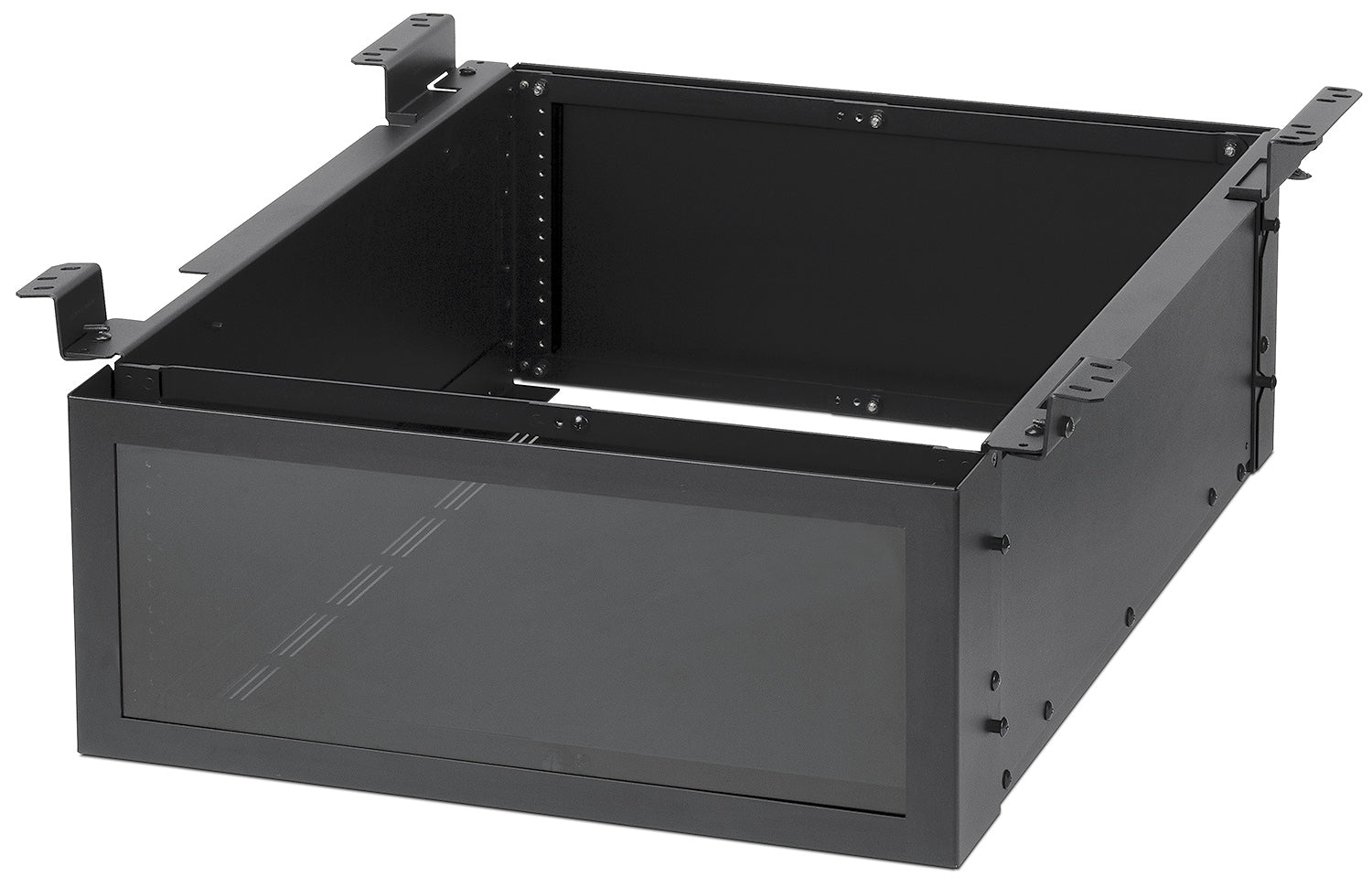

Extron UTR 104 K (part number 42-334-04) — the deeper-body version of the UTR 104 under-table 4U rack mount frame.

The UTR 104 K shares the same 4U, full 19-inch rack width capacity as the standard UTR 104 but adds roughly two extra inches of depth, giving equipment with longer chassis room to sit under the table without hanging past the frame. Like the rest of the family it is a metal frame rated to 100 lbs and built to mount directly to the underside of furniture.

Key Capabilities

• 4U, full 19-inch rack width mounting under a table or furniture surface
• Extended 26.72 in depth for longer equipment than the standard UTR 104
• 100 lb (45.36 kg) load capacity
• Metal frame construction
• UL, c-UL, CE, RoHS and WEEE compliant

Where It Is Used

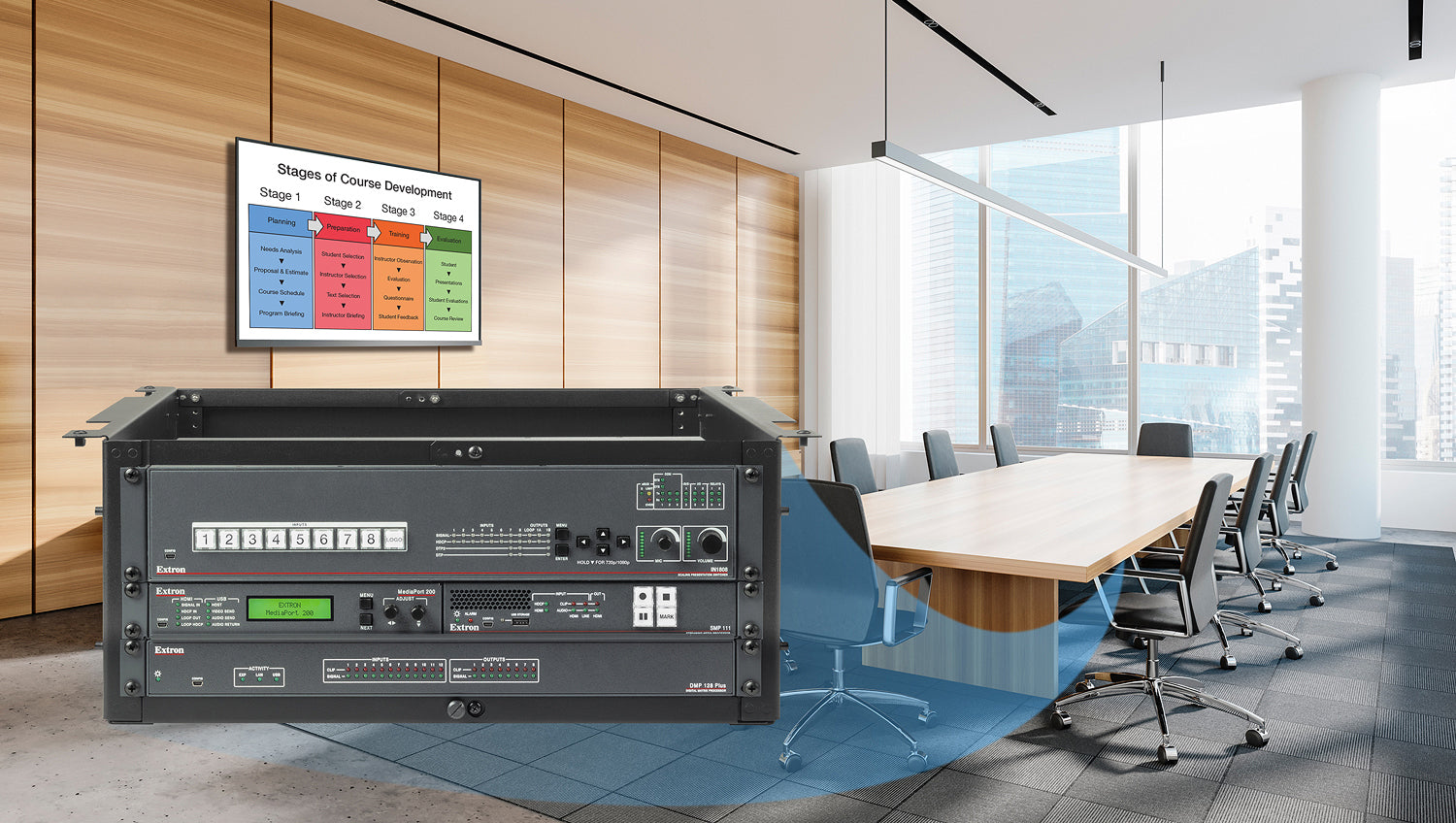

Under-table installations where the rack-mounted equipment is deeper than a standard UTR 104 can accommodate, such as longer switchers or processors in conference rooms and control desks.

Specifications at a Glance

• Model: Extron UTR 104 K, part number 42-334-04
• Enclosure dimensions: 9.73 in H x 24.94 in W x 26.72 in D (247 x 633 x 679 mm)
• Product weight: 25 lbs (11.3 kg)
• Maximum load capacity: 100 lbs (45.36 kg)
• UL, c-UL, CE, RoHS, WEEE; 3 years parts and labor warranty

Also referenced as Extron UTR104K, UTR-104-K, part number 4233404.
