Extron UTR 104 Under-Table Rack Frame
- • Extron UTR 104 4U under-table rack mount frame
- • 4U, full 19 in rack width
- • 100 lb (45.36 kg) load capacity
- • Sales, replacement and exchange
- • Part# 70-1323-04 / 70132304
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

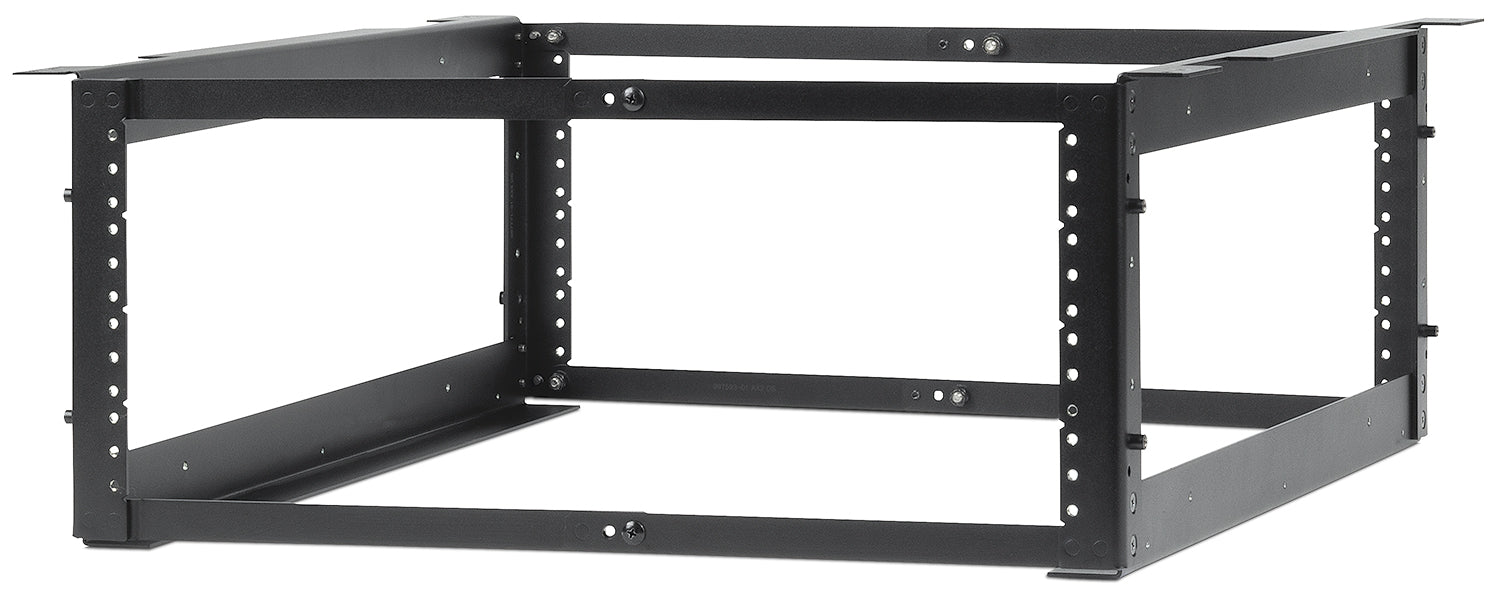

Extron UTR 104 (part number 70-1323-04) - a 4U, 19-inch rack mount frame that fastens beneath a table or similar furniture surface.
Not every room has a place for a floor rack, and the UTR 104 solves that by turning the underside of a table into the mounting surface. The metal frame accepts standard 19-inch rack-width equipment up to 4U and is rated to carry 100 lbs once installed. It is part of the wider UTR 104 family, which also includes front and rear panels (UTR 104 FRP), side panels (UTR 104 SP), a bottom panel (UTR 148 BP) and a deeper K variant (UTR 104 K) for building out a fully enclosed under-table rack.
Key Capabilities
- 4U, full 19-inch rack width mounting under a table or furniture surface
- 100 lb (45.36 kg) load capacity
- Metal frame construction
- Compatible with UTR 104 FRP, SP and BP accessory panels for a closed enclosure
- UL, c-UL, CE, RoHS and WEEE compliant
Where It Is Used
Conference rooms, control desks and huddle spaces where standard 19-inch rack equipment has to be mounted out of sight, under a table, rather than in a floor-standing or wall rack.
Specifications at a Glance
- Model: Extron UTR 104, part number 70-1323-04
- Enclosure dimensions: 9.73 in H x 24.94 in W x 24.66 in D (247 x 633 x 626 mm)
- Product weight: 9 lbs (4.3 kg)
- Maximum load capacity: 100 lbs (45.36 kg)
- UL, c-UL, CE, RoHS, WEEE; 3 years parts and labor warranty
Frequently asked questions about the Extron UTR 104 Under-Table 4U Rack Mount Frame
Does Ampronix sell the Extron UTR 104 Under-Table 4U Rack Mount Frame?
Yes. Ampronix is an authorized Extron distributor and sells the Extron UTR 104 Under-Table 4U Rack Mount Frame (70-1323-04). Call Ampronix for a quote.
Does Ampronix offer replacement and exchange for the Extron UTR 104 Under-Table 4U Rack Mount Frame?
Yes. Ampronix provides sales, replacement and exchange for the Extron UTR 104 Under-Table 4U Rack Mount Frame. Call Ampronix for a quote.
Is the Extron UTR 104 Under-Table 4U Rack Mount Frame listed under other names?
Yes. The Extron UTR 104 Under-Table 4U Rack Mount Frame is also referenced as Extron UTR104, UTR-104, part number 70132304.
What are the key features of the Extron UTR 104 Under-Table 4U Rack Mount Frame?
Key points: 4U, full 19-inch rack width mounting under a table or furniture surface; 100 lb (45.36 kg) load capacity; Metal frame construction; Compatible with UTR 104 FRP, SP and BP accessory panels for a closed enclosure. Call Ampronix to confirm details for your application.
Also referenced as Extron UTR104, UTR-104, part number 70132304.
