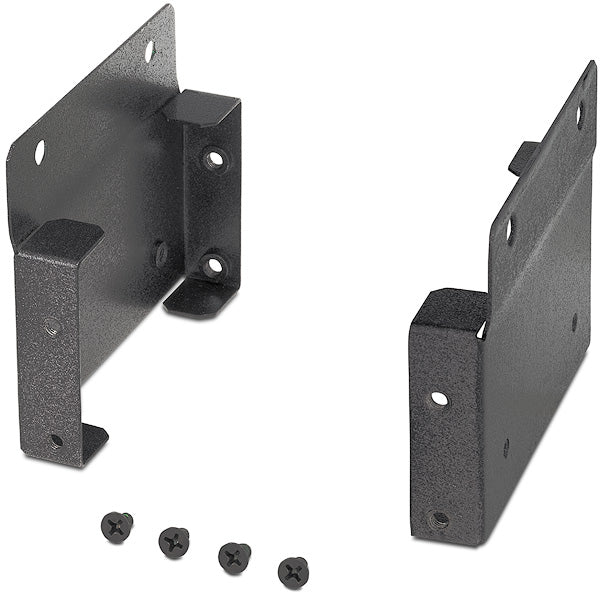

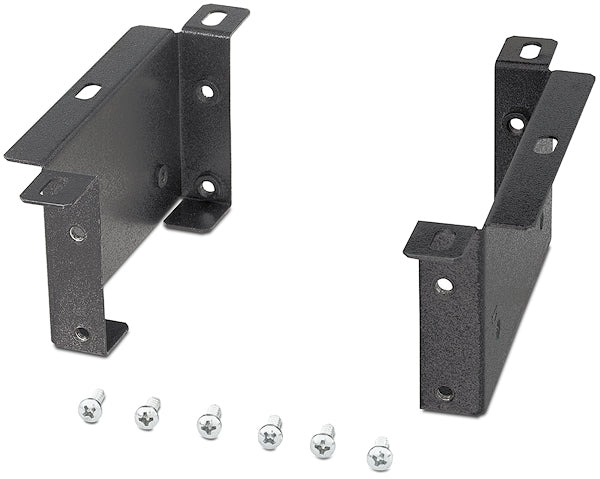

Extron UTM 150 (part number 70-1085-02) — the secondary bracket in the UTM 100 Series under-table mounting system.

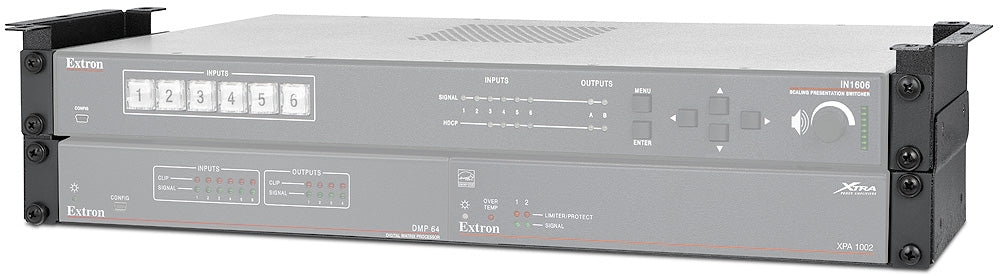

The UTM 150 does not mount to furniture on its own. It attaches to a UTM 100 primary bracket already fixed under the table, and each one added creates room for another 1U or 2U full-rack-width product. Extron's own drawing notes that the stack grows by 1.75 inches for every extra UTM 150 in the system, so the vertical space needed can be worked out before anything is drilled. The whole assembly — brackets plus mounted equipment — is rated to 30 lbs (13.6 kg), which is the figure to plan against rather than the weight of any single device. The bracket is steel in gray powder coat, matching the UTM 100 and the rest of Extron's rack hardware.

Key Capabilities

• Secondary bracket that adds capacity to a UTM 100 primary mount
• Each unit carries one more 1U or 2U full rack width product
• Adds 1.75 in of stack height per additional UTM 150
• Shares the 30 lbs (13.6 kg) total system weight limit
• 2.57 in H x 0.75 in W x 4.00 in D; 0.5 lbs (0.2 kg)
• Steel, gray powder coat to match the UTM 100

Where It Is Used

Expansion of existing under-table installations: conference tables, lecterns and teaching stations where a second or third piece of full-rack-width equipment has to be added to a UTM 100 already in service, without introducing a floor-standing rack.

Specifications at a Glance

• Model: Extron UTM 150, part number 70-1085-02 (Secondary Mount, Gray)
• Enclosure dimensions: 2.57 in H x 0.75 in W x 4.00 in D (6.5 x 1.9 x 10.2 cm)
• Weight: 0.5 lbs (0.2 kg); steel
• Maximum load: 30 lbs (13.6 kg) total system weight
• Compliance CE, RoHS, WEEE; Limited Lifetime Performance warranty

Also referenced as Extron UTM150, UTM-150, part number 70108502.
