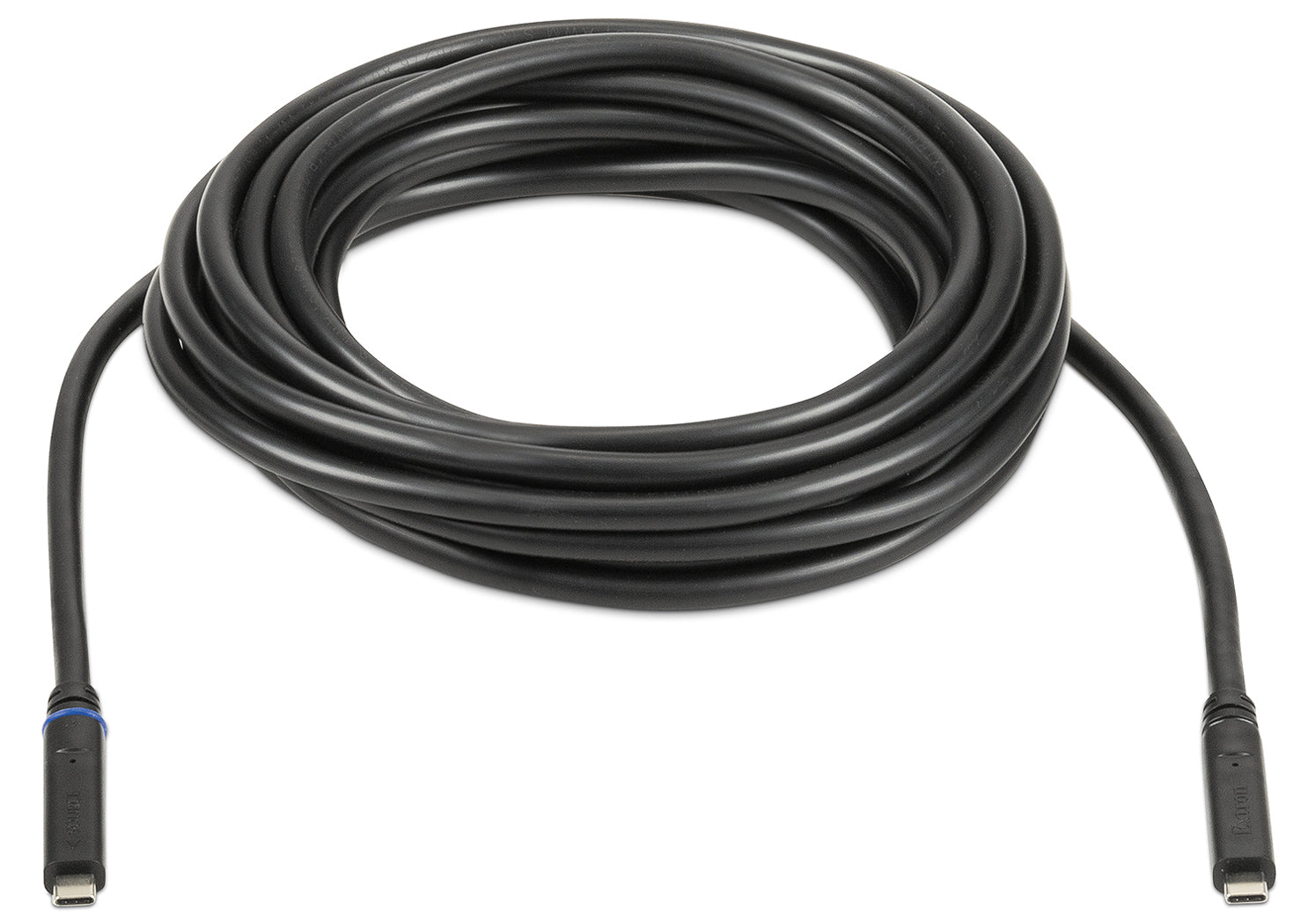

Extron USBC ProMax/30 (part number 26-759-30) — the longest cable in the USBC ProMax Series at 30 ft (9.1 m), carrying 8K video, 20 Gbps USB data and 100 W power delivery together.

Thirty feet is where a single USB-C lead replaces an entire extension system. Because the high-speed lanes travel as light rather than current, the cable holds full DisplayPort Alt Mode bandwidth the whole distance, and because copper runs alongside it, power and USB 2 signalling behave exactly as a short cable would. Lane allocation is negotiated automatically — four lanes for 8K, or a two-and-two split for 4K with 10 Gbps of USB — and MST allows a single host output to feed more than one display.

Key Capabilities

• Longest reach in the series: 30 ft (9.1 m) with no external power supply.
• Automatic 2-lane or 4-lane DP Alt Mode configuration.
• Video to 7680x4320 at 30 Hz, or 4K at 120 Hz with 8-bit colour.
• USB 3.2 Gen 2x2 data at up to 20 Gbps.
• 100 W USB Power Delivery, bidirectional on the USB side.
• Integrated eMarker for correct capability negotiation at both ends.
• 0.30 in (8 mm) diameter with a 0.91 in (23.4 mm) bend radius.

Where It Is Used

Large boardrooms, auditorium lecterns and teaching walls, USB-C floor boxes serving ceiling-mounted displays, broadcast and grading suites, simulation labs, and clinical imaging rooms where the workstation and the review monitor are at opposite ends of the space.

Specifications at a Glance

• Length: 30 ft (9.1 m)
• Video: up to 7680x4320 at 30 Hz, DisplayPort 1.4, HDCP 2.3
• USB: 3.2 Gen 2x2 at up to 20 Gbps
• Power delivery: up to 100 W
• Cable: 0.30 in (8 mm) diameter, USB-C male to USB-C male

Also referenced as Extron USBCProMax30, USBC-ProMax-30, part number 2675930.
