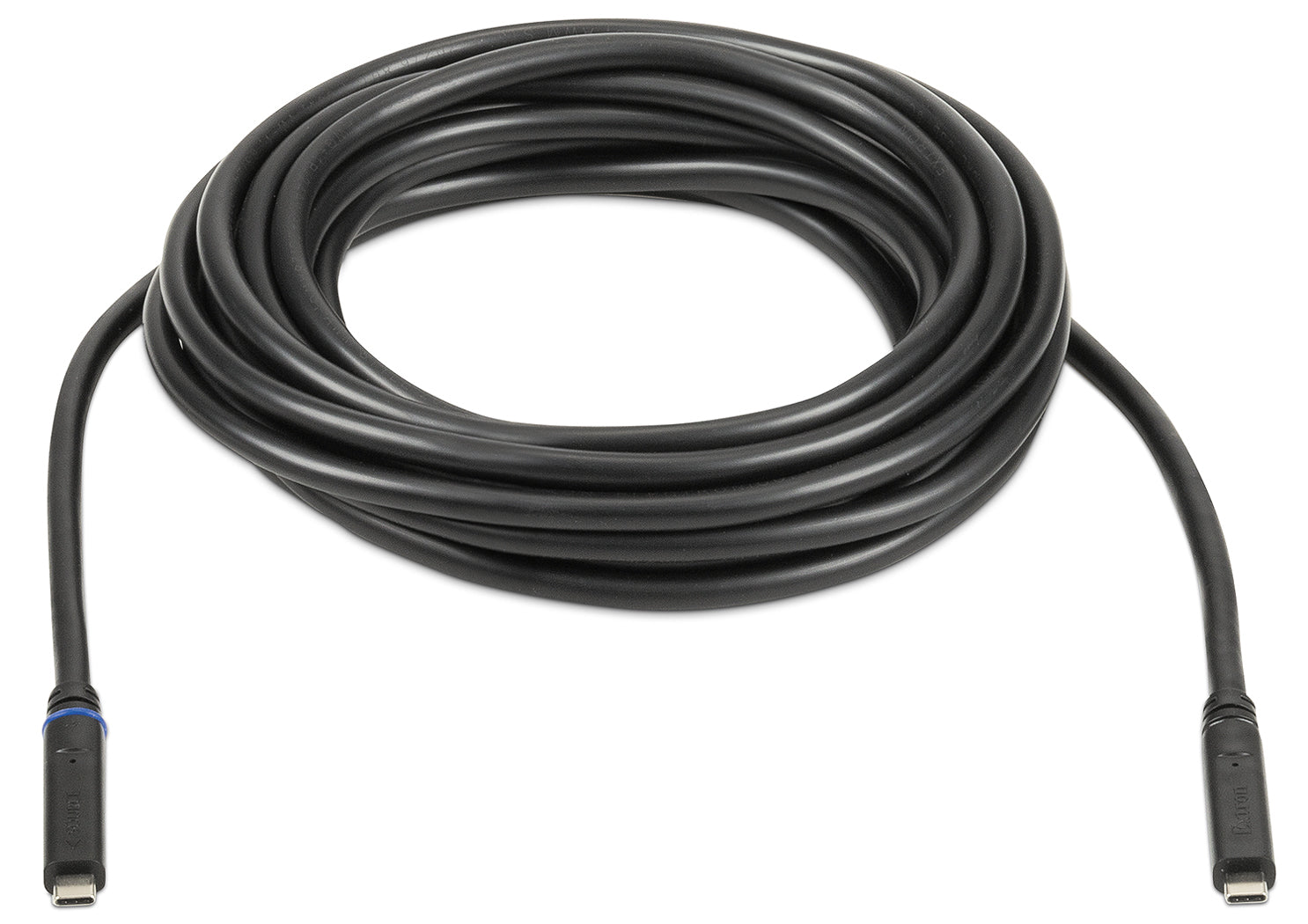

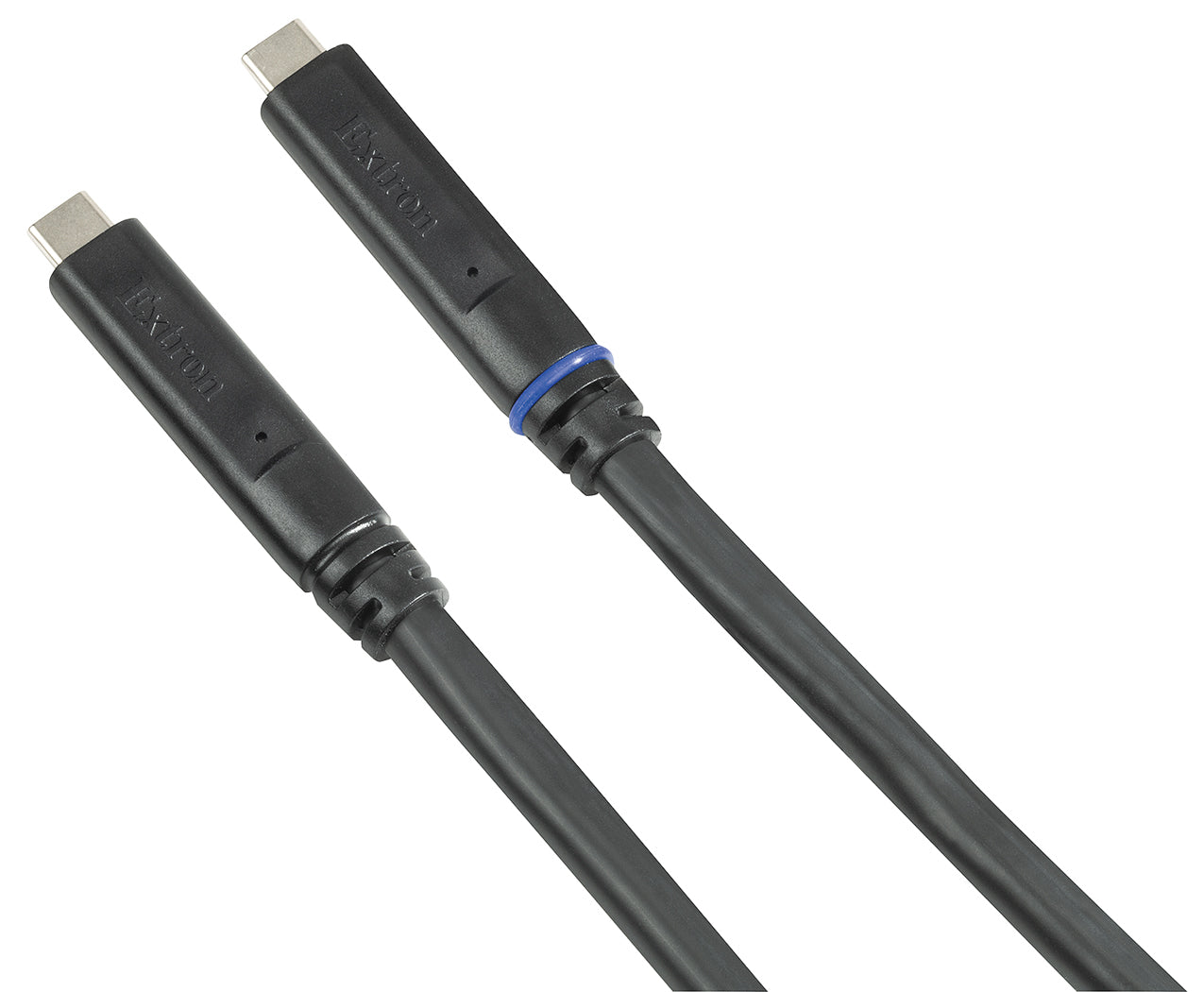

Extron USBC ProMax/25 (part number 26-759-25) — a 25 ft (7.6 m) active USB-C cable delivering 8K DisplayPort video, USB data to 20 Gbps and 100 W of power on one connection.

At twenty-five feet, most USB-C cables have already given up on 20 Gbps. This one holds it by carrying the high-speed lanes optically while copper handles power and the USB 2 path. The lane allocation is not fixed: the cable negotiates four lanes to video when the application wants 8K, or splits two-and-two when 4K on screen plus 10 Gbps of USB traffic is the better trade. An integrated eMarker tells both ends what it can do, so the 100 W Power Delivery contract settles correctly rather than defaulting low.

Key Capabilities

• Dynamic DisplayPort Alt Mode lane switching between two-lane and four-lane operation.
• Up to 32.4 Gbps of video bandwidth in the four-lane mode, 16.2 Gbps in two-lane.
• USB 3.2 Gen 2x2 at up to 20 Gbps, compatible with USB 2.0 and 1.1 devices.
• 100 W of USB Power Delivery for laptops, displays and mobile devices.
• Multi-Stream Transport for multiple monitors from a single USB-C output.
• 0.30 in (8 mm) jacket, 0.91 in (23.4 mm) bend radius, 111 N maximum pull strength.
• RGB and YCbCr digital video with HDCP 2.3 support.

Where It Is Used

Boardrooms and divisible conference spaces with distant displays, lectern-to-teaching-wall runs, USB-C docking positions serving cameras and microphones, control-room operator desks, and post-production or imaging workstations that combine a large monitor, dock and laptop charging.

Specifications at a Glance

• Length: 25 ft (7.6 m)
• Video: up to 7680x4320 at 30 Hz, DisplayPort 1.4, HDCP 2.3
• USB: 3.2 Gen 2x2 at up to 20 Gbps
• Power delivery: up to 100 W
• Cable: 0.30 in (8 mm) diameter, USB-C male to USB-C male

Also referenced as Extron USBCProMax25, USBC-ProMax-25, part number 2675925.
