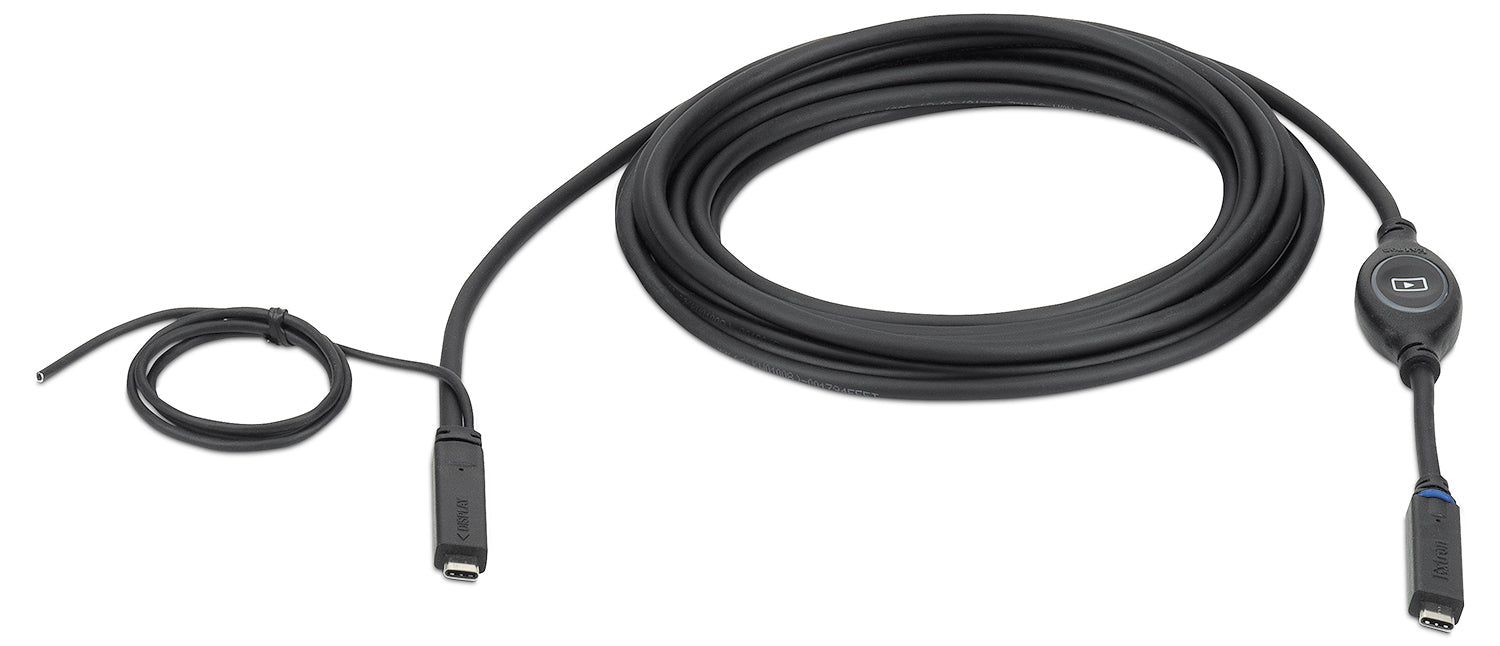

Extron USBC Pro SM (part number 26-746-09) — a 9 ft USB-C Show Me cable that brings 4K video and 60 W power delivery to an Extron TeamWork collaboration system.

This USB-C to USB-C Show Me cable lets a modern laptop share video, and charge, through a single connector while the collaboration switcher's DisplayPort Alt Mode input handles the video. A lit Share button doubles as the source-select control, and a built-in three-conductor pigtail carries contact-closure and tally signals back to the switcher without extra wiring at the table.

Key Capabilities

• USB-C to USB-C DisplayPort Alt Mode video, up to 4096x2160 @ 30 Hz
• Bidirectional USB Power Delivery up to 60 W at 3 A
• USB 3.2 Gen 1 data at up to 5 Gbps alongside the video signal

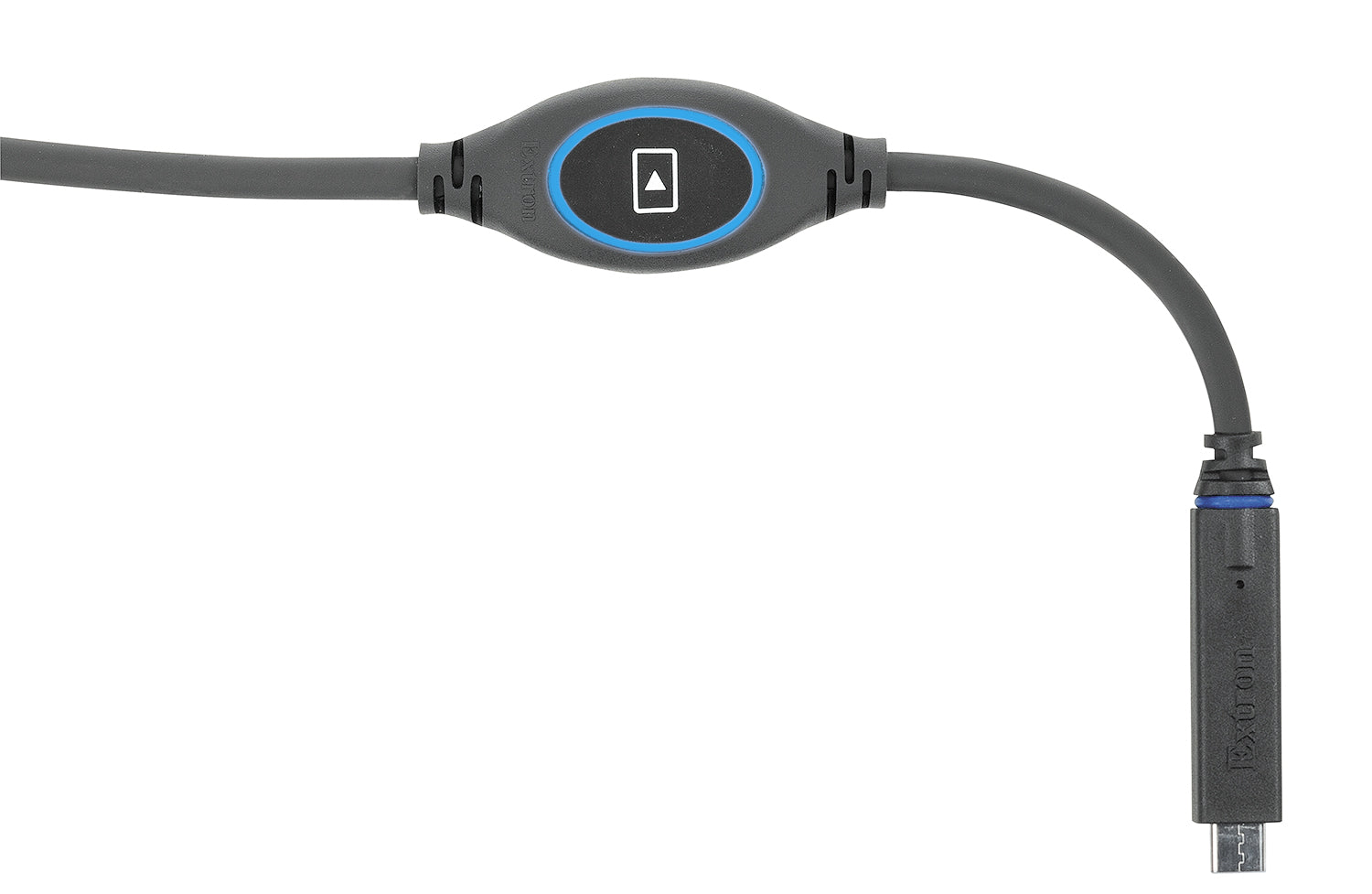

• Illuminated Share button for one-touch source switching at the table
• Rated for continuous use at up to 80 °C

Where It Is Used

Huddle rooms and small conference spaces running an Extron TeamWork switcher use this cable at the table so USB-C laptop users can share 4K content and charge their laptop through one connection.

Specifications at a Glance

• Length: 9 ft (2.7 m)
• Connector: USB-C male to USB-C male
• Max. video data rate: 16.2 Gbps (8.1 Gbps per lane)
• Power delivery: up to 60 W, 3 A

Also referenced as Extron USBCProSM, USBC-Pro-SM, part number 2674609.
