Extron USBC Pro 8K/30 USB-C Optical Cable
- • Extron USBC Pro 8K/30 USB-C optical cable 30 ft
- • 32.4 Gbps over four DisplayPort HBR3 lanes
- • 8K/30 video or 4096x2160 at 60 Hz, 12-bit
- • Sales, replacement and exchange
- • Part# 26-748-30 / 2674830
Product discontinued.
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

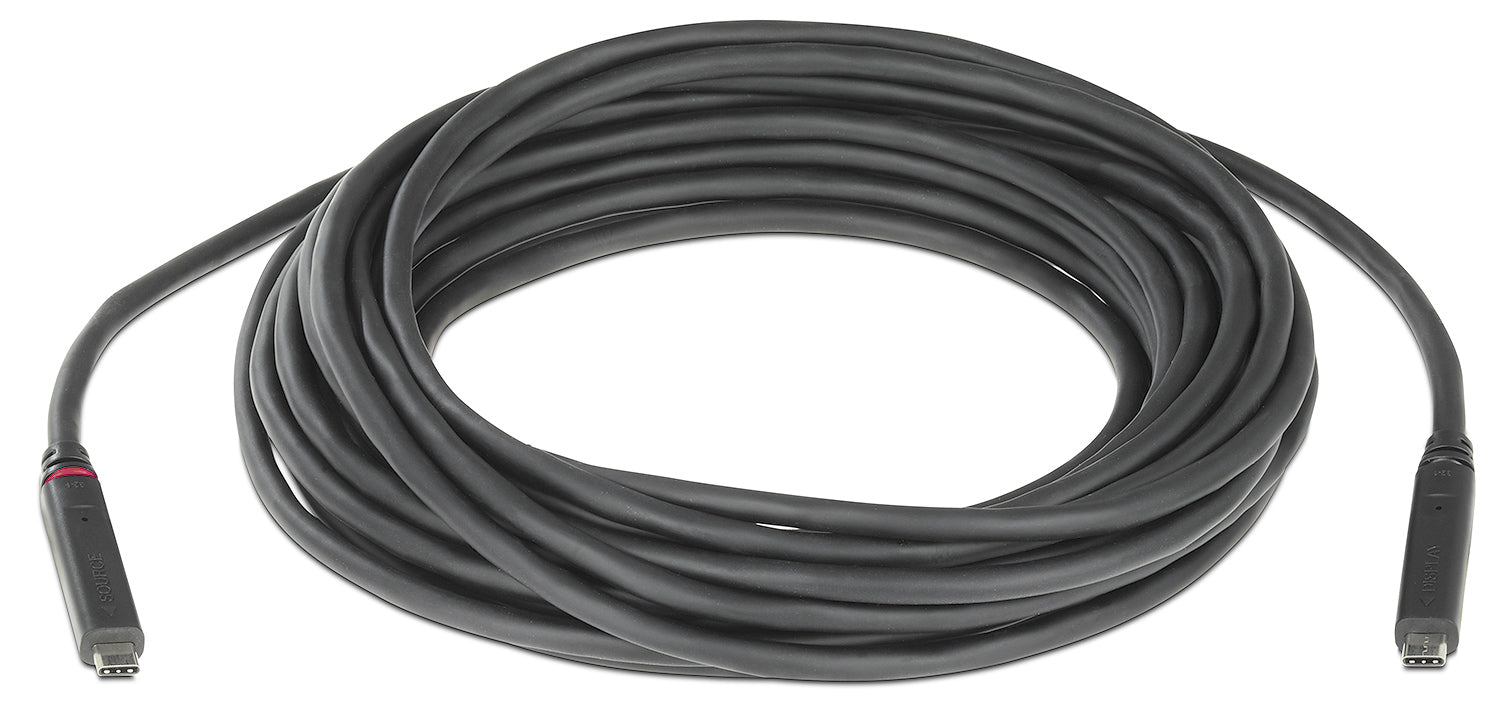

Extron USBC Pro 8K/30 (part number 26-748-30) - at 30 ft (9.1 m) this is the longest cable in the USBC Pro 8K Series, carrying 8K/30 video, USB 2.0 data and 60 W of power in one lead.
Thirty feet of USB-C at full 8K bandwidth is not something copper can do. Extron gets there with a hybrid build in which the four high-speed DisplayPort lanes travel over multimode fibre while copper conductors handle power and USB 2.0. The result behaves like an ordinary cable during installation - plug both ends in and walk away - but performs like an extender system, because the active circuitry is powered by whichever device is connected rather than an external supply. That is one part number instead of a transmitter, receiver and two power adapters.
Key Capabilities
- Four DisplayPort lanes at up to HBR3, for 32.4 Gbps of video bandwidth with MST.
- Resolution to 7680x4320 at 30 Hz, or 4096x2160 at 60 Hz with 12-bit colour.
- USB 2.0 at up to 480 Mbps travels with the video on the same cable.
- Bidirectional USB Power Delivery to 60 W, sourced from either connected device.
- Highly resistant to EMI and RFI over the full 30 ft run.
- 0.26 in (6.5 mm) diameter with a 0.79 in (20 mm) bend radius, so it still fits a cable cubby.
- Rated to a 111 N (25 lb) maximum pull strength for conduit installation.
Where It Is Used
Large meeting rooms and boardrooms where the table is well away from the display, teaching walls fed from a lectern, control rooms with high pixel-count monitors, broadcast edit and grading suites, and imaging or simulation environments that need picture, peripherals and charging on one lead.
Specifications at a Glance
- Length: 30 ft (9.1 m)
- Video: up to 7680x4320 at 30 Hz, DisplayPort 1.4, HDCP 2.3
- USB: 2.0 at up to 480 Mbps
- Power delivery: up to 60 W, bidirectional
- Cable: 0.26 in (6.5 mm) diameter, USB-C male to USB-C male
Frequently asked questions about the Extron USBC Pro 8K/30 USB-C Optical Cable 30 ft
Does Ampronix sell the Extron USBC Pro 8K/30 USB-C Optical Cable 30 ft?
Yes. Ampronix is an authorized Extron distributor and sells the Extron USBC Pro 8K/30 USB-C Optical Cable 30 ft (26-748-30). Call Ampronix for a quote.
Does Ampronix offer replacement and exchange for the Extron USBC Pro 8K/30 USB-C Optical Cable 30 ft?
Yes. Ampronix provides sales, replacement and exchange for the Extron USBC Pro 8K/30 USB-C Optical Cable 30 ft. Call Ampronix for a quote.
Is the Extron USBC Pro 8K/30 USB-C Optical Cable 30 ft listed under other names?
Yes. The Extron USBC Pro 8K/30 USB-C Optical Cable 30 ft is also referenced as Extron USBCPro8K30, USBC-Pro-8K-30, part number 2674830.
What are the key features of the Extron USBC Pro 8K/30 USB-C Optical Cable 30 ft?
Key points: Four DisplayPort lanes at up to HBR3, for 32.4 Gbps of video bandwidth with MST; Resolution to 7680x4320 at 30 Hz, or 4096x2160 at 60 Hz with 12-bit colour; USB 2.0 at up to 480 Mbps travels with the video on the same cable; Bidirectional USB Power Delivery to 60 W, sourced from either connected device. Call Ampronix to confirm details for your application.
Also referenced as Extron USBCPro8K30, USBC-Pro-8K-30, part number 2674830.
