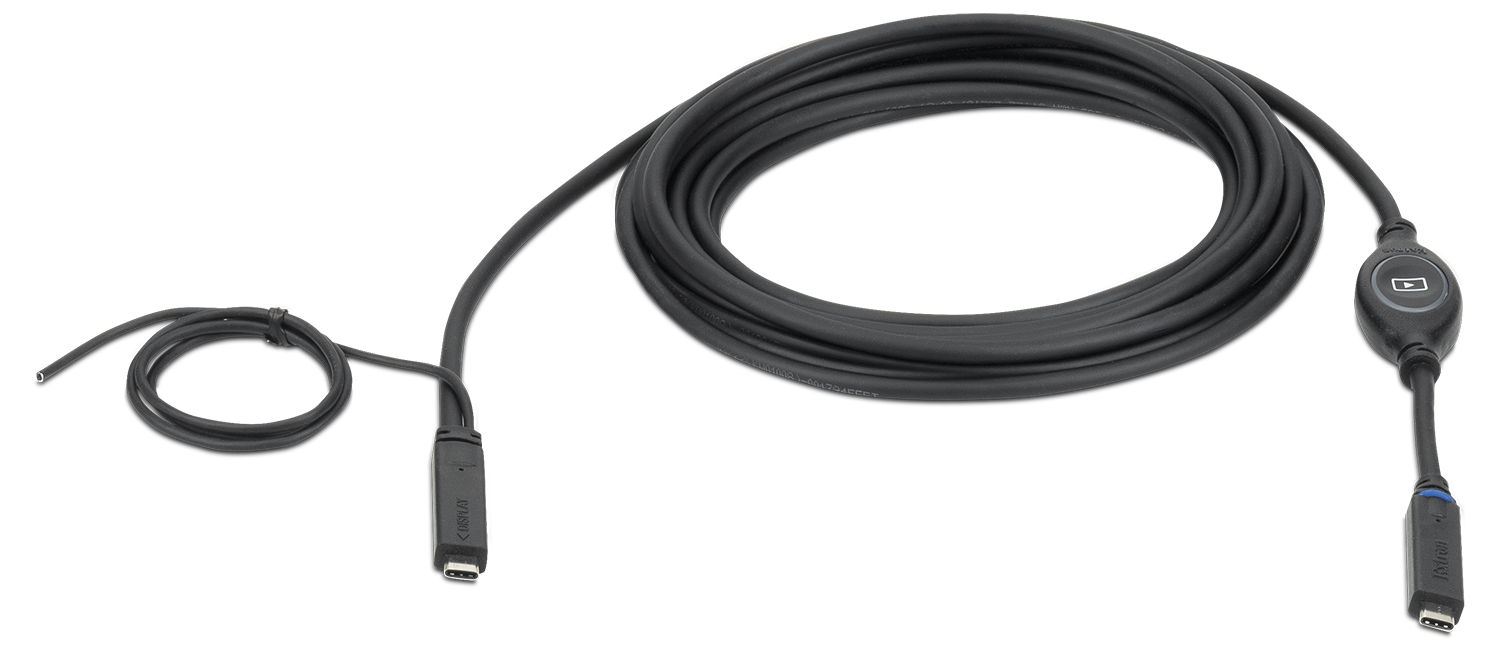

Extron USBC Pro/25 (part number 26-741-25) - a 25 ft (7.6 m) active USB-C cable that moves 4K/30 DisplayPort video, SuperSpeed USB at 5 Gbps and 60 W of power in a single run.

Twenty-five feet is the point at which most integrators reach for an extender kit. This cable removes that step: the video lanes travel over multimode fibre, copper handles power and the USB 2 path, and the whole thing terminates in ordinary USB-C plugs at both ends. Nothing is rack mounted, nothing needs a power outlet, and there is only one part number on the bill of materials. A blue ring identifies the host connector so the directional cable is installed the right way round.

Key Capabilities

• DisplayPort Alt Mode 1.4 across two lanes for 16.2 Gbps of video bandwidth.
• 4096x2160 and 3840x2160 at 30 Hz, 4:4:4 chroma, up to 12-bit colour.
• USB 3.2 Gen 1 SuperSpeed data at up to 5 Gbps for cameras, hubs and docks.
• Up to 60 W of bidirectional USB Power Delivery, sourced from either end.
• Strongly resistant to EMI and RFI across the full 25 ft.
• 0.26 in (6.5 mm) diameter and 0.79 in (20 mm) bend radius.
• 111 N (25 lb) maximum pull strength for conduit and raceway pulls.

Where It Is Used

Conference rooms where the table and the display sit at opposite walls, lectern-to-projector drops, USB-C floor boxes, hybrid teaching rooms with ceiling cameras, and control or imaging positions that pair a large monitor with a docked laptop.

Specifications at a Glance

• Length: 25 ft (7.6 m)
• Video: up to 4096x2160 at 30 Hz, DisplayPort 1.4, HDCP 2.3
• USB: 3.2 Gen 1 at up to 5 Gbps
• Power delivery: up to 60 W, bidirectional
• Cable: 0.26 in (6.5 mm) diameter, USB-C male to USB-C male

Frequently asked questions about the Extron USBC Pro/25 USB-C 5Gbps Optical Cable 25 ft

Also referenced as Extron USBCPro25, USBC-Pro-25, part number 2674125.
