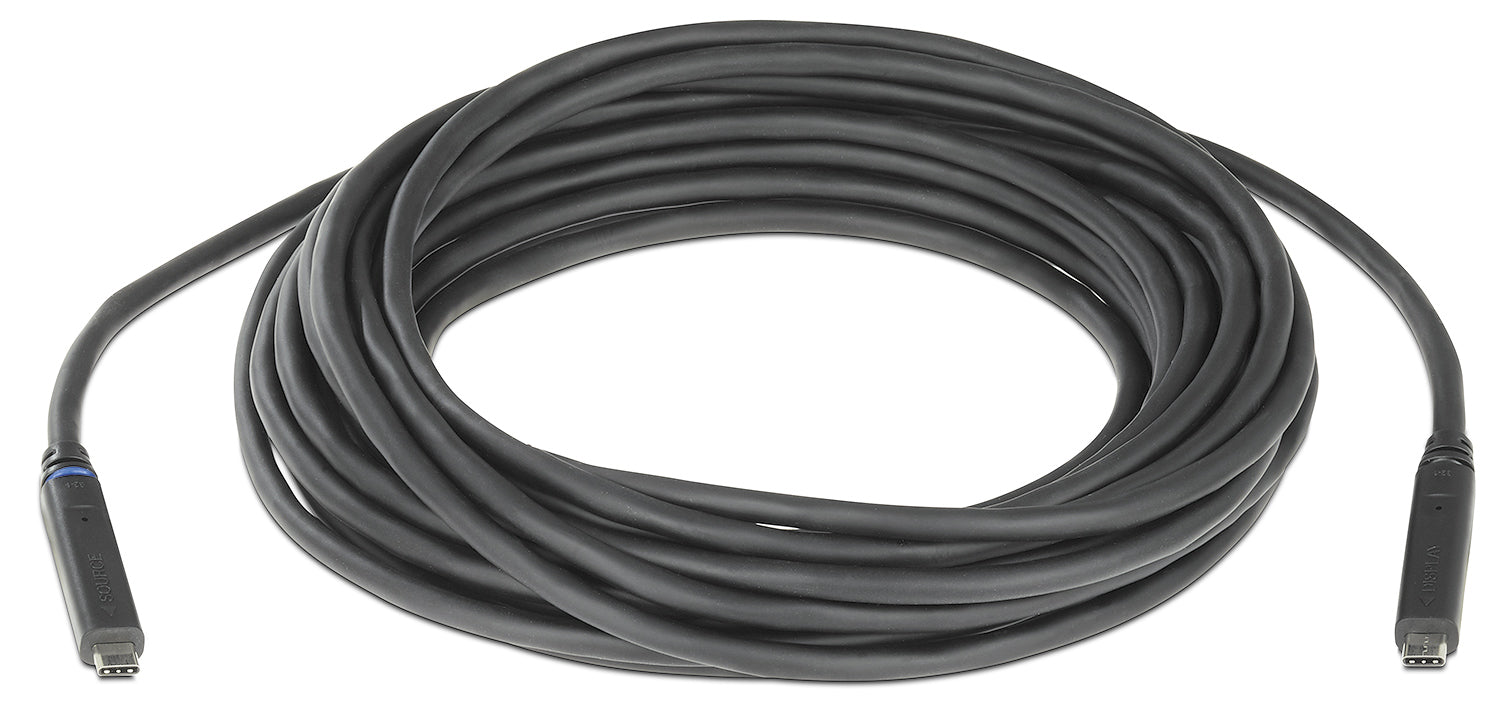

Extron USBC Pro/15 (part number 26-741-15) - a 15 ft (4.5 m) hybrid optical-copper USB-C cable combining 4K/30 video, 5 Gbps USB data and 60 W power delivery.

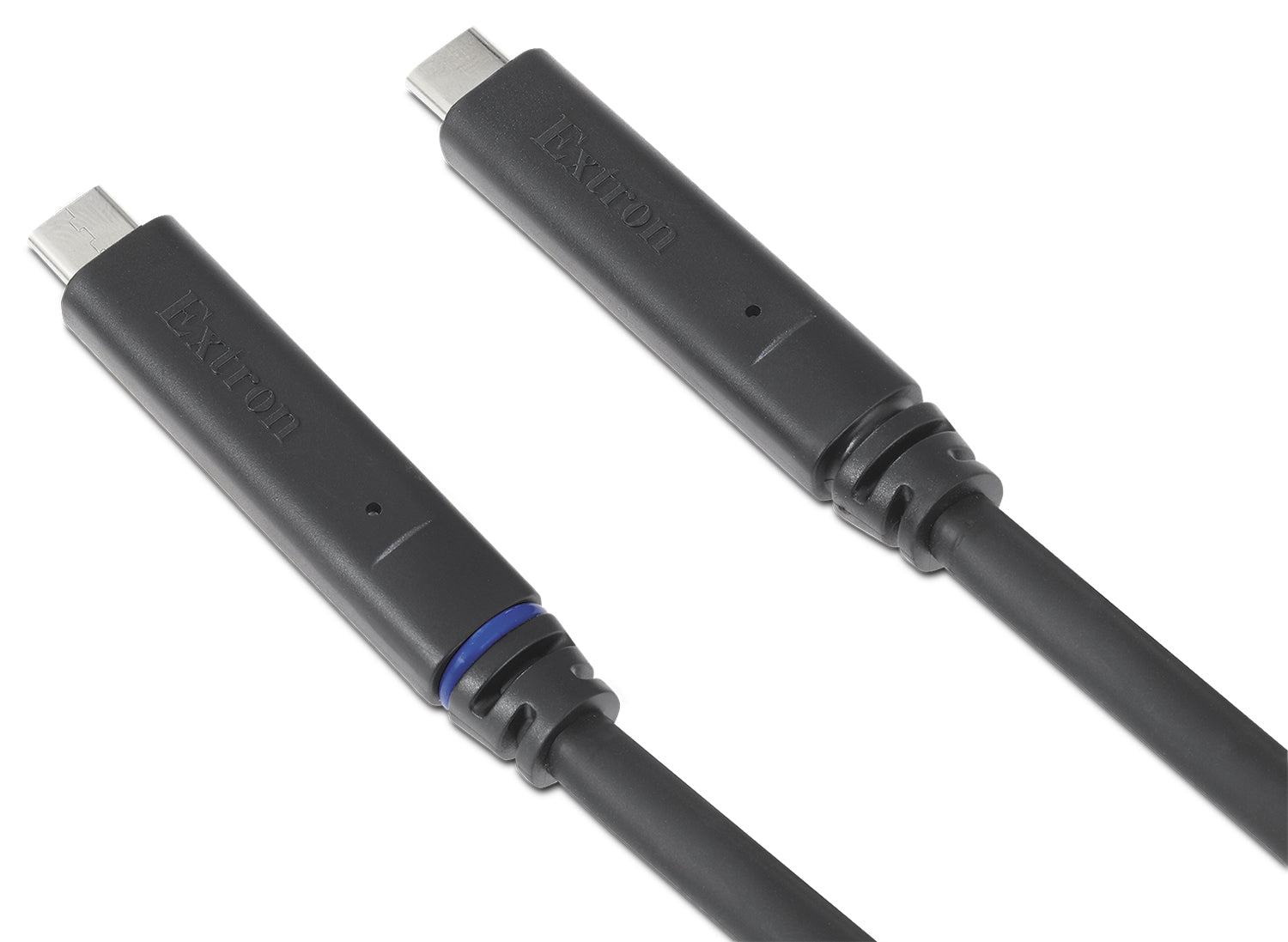

Fifteen feet is the length that reaches from a table box or credenza to a wall-mounted display, and it is well past where passive USB-C stops behaving. Extron solves the distance by sending the high-speed lanes over multimode fibre while copper handles the power contract and the USB 2 path. What the installer sees is still a plug-and-forget cable: no receiver, no transmitter, no external supply. A blue ring identifies the host end and each connector is moulded with directional text.

Key Capabilities

• Two-lane DisplayPort Alt Mode 1.4 at HBR3, giving 16.2 Gbps of video bandwidth.
• 4096x2160 and 3840x2160 at 30 Hz, 4:4:4 chroma, up to 12-bit colour.
• SuperSpeed USB data at up to 5 Gbps under USB 3.2 Gen 1.
• Up to 60 W of bidirectional USB Power Delivery with no external supply.
• Thin 0.26 in (6.5 mm) jacket and 0.79 in (20 mm) bend radius for tight terminations.
• Rated to a 111 N (25 lb) maximum pull strength.
• RGB and YCbCr digital video with HDCP 2.3 support.

Where It Is Used

Meeting rooms with wall displays, hybrid classrooms and training suites, USB-C hot-desking positions, digital signage players tucked behind screens, and control or review desks where a single connection has to carry picture, USB peripherals and laptop charging.

Specifications at a Glance

• Length: 15 ft (4.5 m)
• Video: up to 4096x2160 at 30 Hz, DisplayPort 1.4, HDCP 2.3
• USB: 3.2 Gen 1 at up to 5 Gbps
• Power delivery: up to 60 W, bidirectional
• Cable: 0.26 in (6.5 mm) diameter, USB-C male to USB-C male
