Extron USBC Pro/12 USB-C 5 Gbps Optical Cable
- • Extron USBC Pro/12 USB-C 5Gbps optical cable 12 ft
- • Two-lane DP Alt Mode 1.4, 16.2 Gbps of video
- • 4096x2160 at 30 Hz, 4:4:4 chroma, 12-bit color
- • Sales, replacement and exchange
- • Part# 26-741-12 / 2674112
Product discontinued.
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

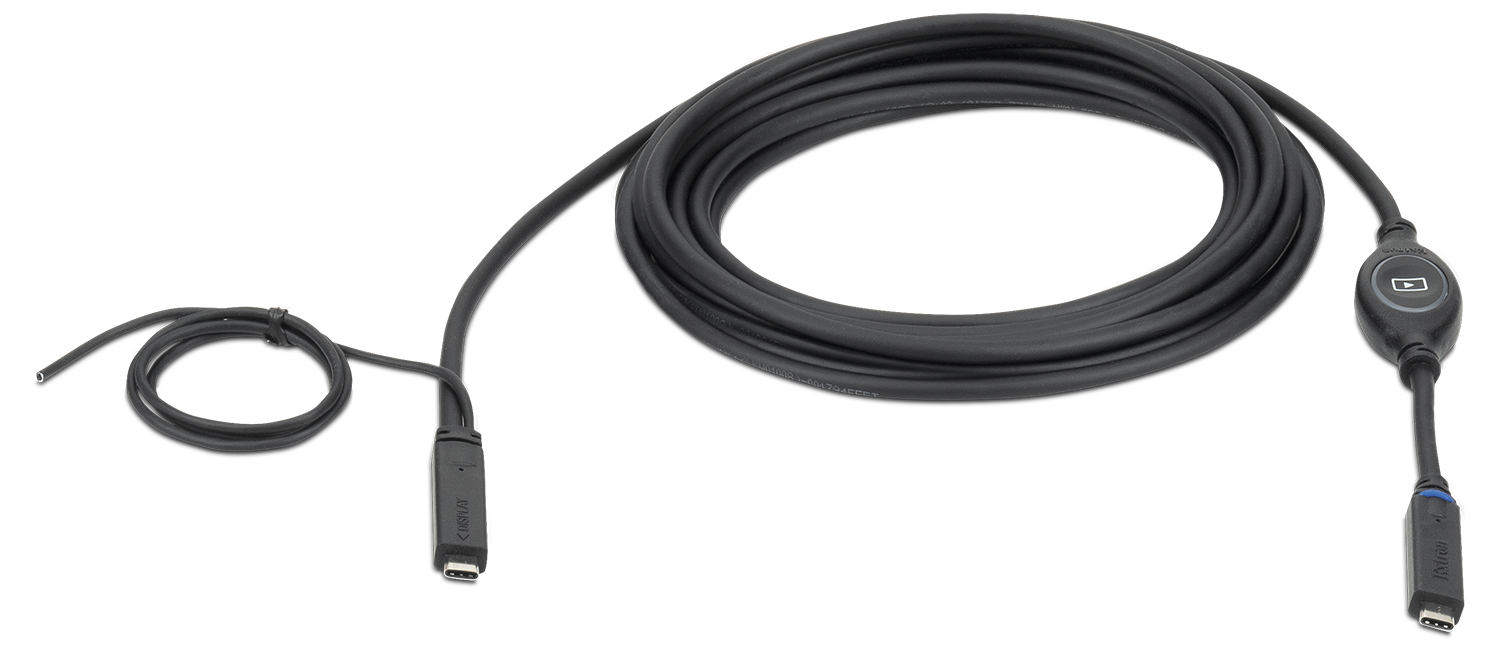

Extron USBC Pro/12 (part number 26-741-12) - a 12 ft (3.6 m) active hybrid optical-copper USB-C cable carrying 4K/30 DisplayPort video, SuperSpeed USB at 5 Gbps and up to 60 W of power.
This is the workhorse of the Extron USB-C optical range: enough video for a 4K display at 30 Hz, enough USB bandwidth for a camera or dock at 5 Gbps, and enough Power Delivery to keep a laptop charged, all on one lead that behaves like an ordinary cable. Two DisplayPort lanes are dedicated to video while the remaining capacity carries USB 3.2 Gen 1 traffic. The active circuitry is powered by whichever device is connected, so there is no wall wart to hide and no extender chassis to rack.
Key Capabilities
- DisplayPort Alt Mode 1.4 over two lanes, 16.2 Gbps of video bandwidth, MST supported.
- Resolutions up to 4096x2160 at 30 Hz with 4:4:4 chroma and 12-bit colour.
- USB 3.2 Gen 1 SuperSpeed data at up to 5 Gbps, backwards compatible with USB 2.0 and 1.1.
- Bidirectional USB Power Delivery to 60 W, drawn from either connected device.
- 0.26 in (6.5 mm) diameter with a 0.79 in (20 mm) bend radius.
- Highly resistant to EMI and RFI over the full run.
- Colour-coded, direction-labelled ends: a blue ring marks the host connector.
Where It Is Used
Huddle rooms and small conference spaces, USB-C table boxes feeding wall displays, classroom teaching positions with a camera and microphone on the same cable, reception and wayfinding displays, and laboratory or clinical desks that combine a monitor, dock and charging on one port.
Specifications at a Glance
- Length: 12 ft (3.6 m)
- Video: up to 4096x2160 at 30 Hz, DisplayPort 1.4, HDCP 2.3
- USB: 3.2 Gen 1 at up to 5 Gbps
- Power delivery: up to 60 W, bidirectional
- Cable: 0.26 in (6.5 mm) diameter, USB-C male to USB-C male
Frequently asked questions about the Extron USBC Pro/12 USB-C 5Gbps Optical Cable 12 ft
Does Ampronix sell the Extron USBC Pro/12 USB-C 5Gbps Optical Cable 12 ft?
Yes. Ampronix is an authorized Extron distributor and sells the Extron USBC Pro/12 USB-C 5Gbps Optical Cable 12 ft (26-741-12). Call Ampronix for a quote.
Does Ampronix offer replacement and exchange for the Extron USBC Pro/12 USB-C 5Gbps Optical Cable 12 ft?
Yes. Ampronix provides sales, replacement and exchange for the Extron USBC Pro/12 USB-C 5Gbps Optical Cable 12 ft. Call Ampronix for a quote.
Is the Extron USBC Pro/12 USB-C 5Gbps Optical Cable 12 ft listed under other names?
Yes. The Extron USBC Pro/12 USB-C 5Gbps Optical Cable 12 ft is also referenced as Extron USBCPro12, USBC-Pro-12, part number 2674112.
What are the key features of the Extron USBC Pro/12 USB-C 5Gbps Optical Cable 12 ft?
Key points: DisplayPort Alt Mode 1.4 over two lanes, 16.2 Gbps of video bandwidth, MST supported; Resolutions up to 4096x2160 at 30 Hz with 4:4:4 chroma and 12-bit colour; USB 3.2 Gen 1 SuperSpeed data at up to 5 Gbps, backwards compatible with USB 2.0 and 1.1; Bidirectional USB Power Delivery to 60 W, drawn from either connected device. Call Ampronix to confirm details for your application.
Also referenced as Extron USBCPro12, USBC-Pro-12, part number 2674112.
Related: Extron products, Video Solutions.
Specifications
Specifications

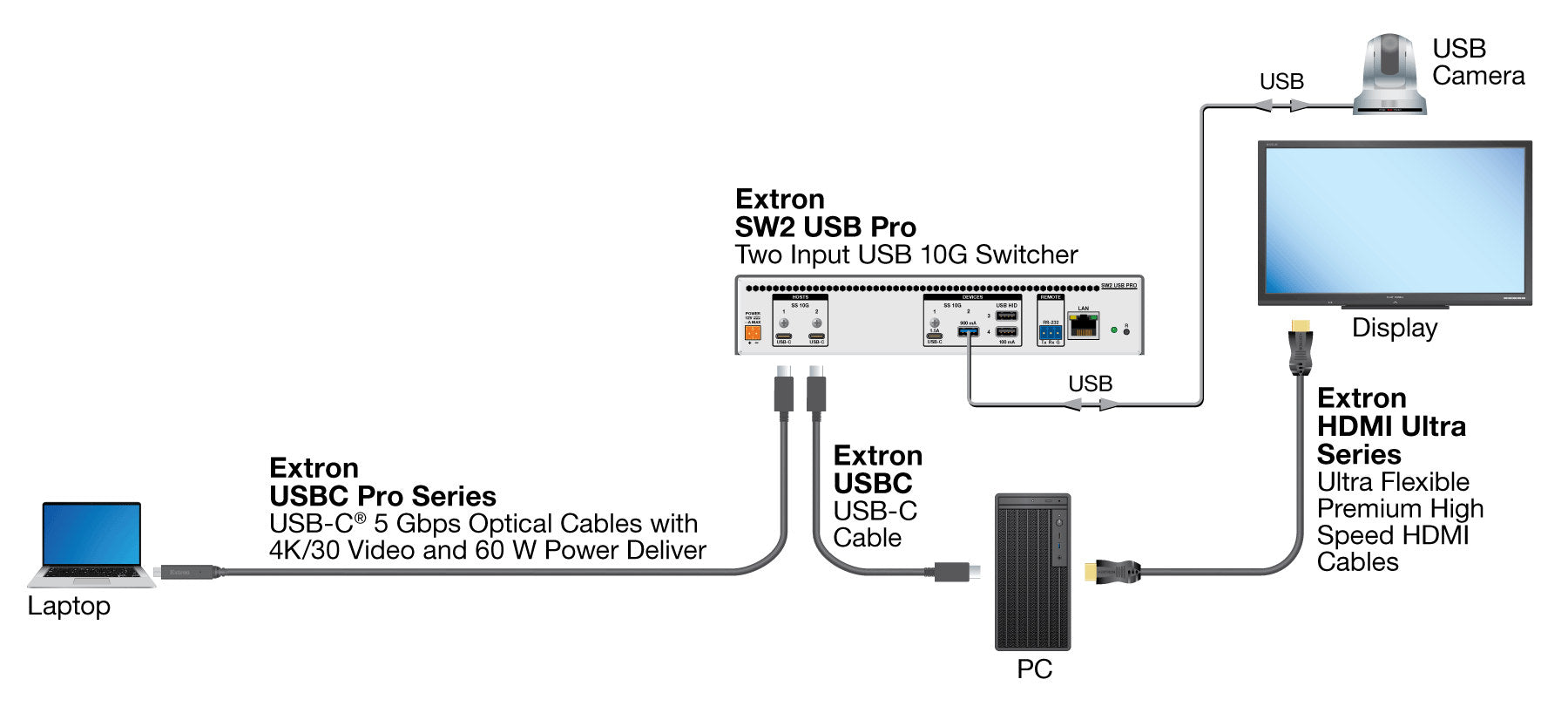

Diagram
