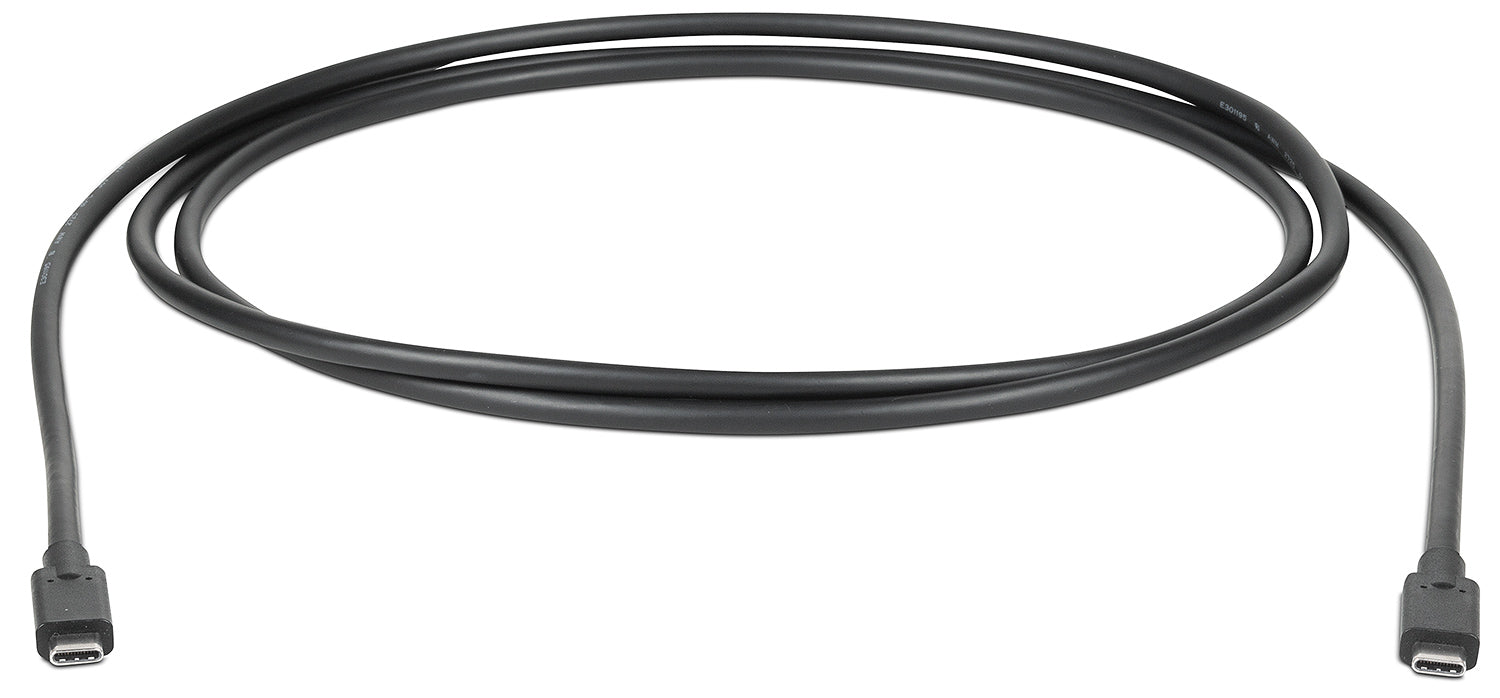

Extron USBC Plus/6 (part number 26-755-06) — a 6.5 ft (2 m) USB-C cable that carries video, audio, data and power together, with 8K DisplayPort Alt Mode and 240 W of Power Delivery.

This is the passive-length flagship of Extron's USB-C range. High-speed lane allocation adapts to what the application asks for: all four lanes to video for 8K at a total of 32.4 Gbps with USB High-Speed data on the USB 2 lane, or a two-and-two split giving 4K video at 16.2 Gbps alongside USB at 10 Gbps. Power Delivery reaches 240 watts, which is well past what a laptop needs and into workstation and large-display territory. MST is supported, so one source output can feed more than one monitor.

Key Capabilities

• USB data rates up to 20 Gbps.
• DisplayPort Alt Mode supports resolutions up to 8K.
• 8K video across four high-speed lanes for 32.4 Gbps total, 8.1 Gbps per lane.
• 4K video across two high-speed lanes for 16.2 Gbps, with USB 10Gbps on the other two.
• USB High-Speed data on the USB 2 lane in both configurations.
• USB Power Delivery up to 240 watts.
• Multi-Stream Transport support for multiple monitors from one USB-C output.

Where It Is Used

Executive desks and workstations driving dual monitors from one port, USB-C conference tables, broadcast and post-production positions, engineering and design stations with high-power laptops, and clinical review desks that combine a large display, a dock and charging.

Specifications at a Glance

• Length: 6.5 ft (2 m)
• Video: DisplayPort Alt Mode up to 8K
• USB data rate: up to 20 Gbps
• Power delivery: up to 240 W
• Connectors: 1 USB-C male to 1 USB-C male

Also referenced as Extron USBCPlus6, USBC-Plus-6, part number 2675506.
