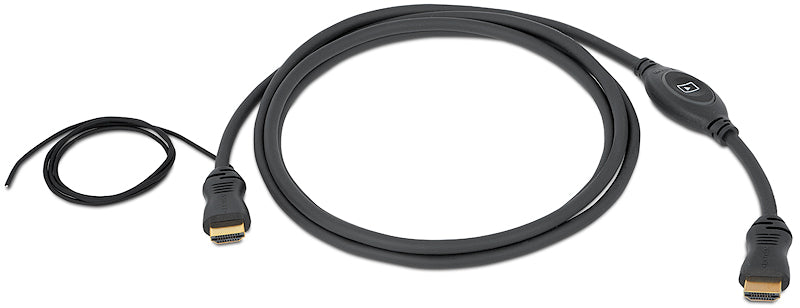

Extron USBC-HDMI SM (part number 26-733-12) - a 12 ft USB-C-to-HDMI Show Me cable built for Extron TeamWork collaboration systems.

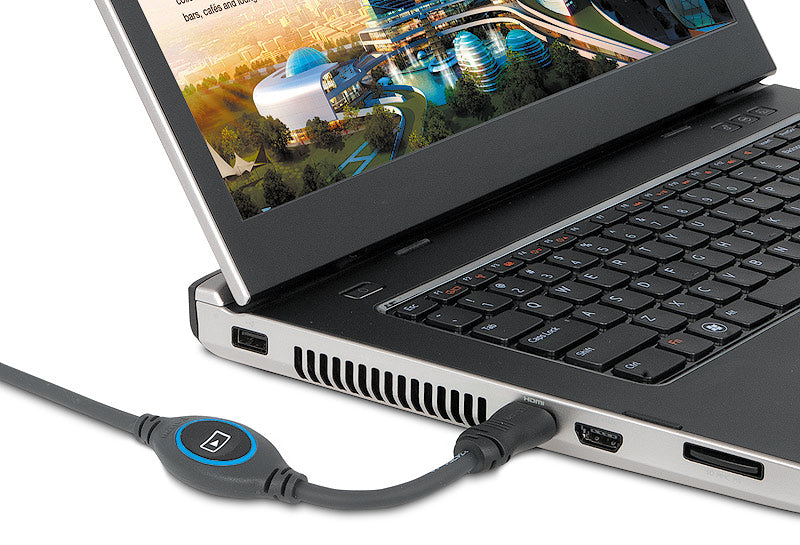

This active, one-way adapter cable lets a USB-C laptop running DisplayPort Alt Mode plug straight into a TeamWork switcher's HDMI input, no dongle required. A lit Share button on the cable body doubles as the room's source-select control, and a separate three-conductor pigtail carries contact-closure and tally signals back to the switcher so no extra control wiring is needed at the table.

Key Capabilities

• USB-C to HDMI signal conversion, up to 18.0 Gbps (6 Gbps per color)
• Supports 4:4:4, 4:2:2, or 4:2:0 chroma sampling at up to 60 fps

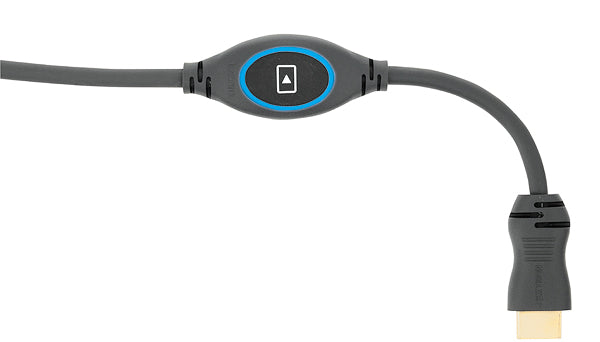

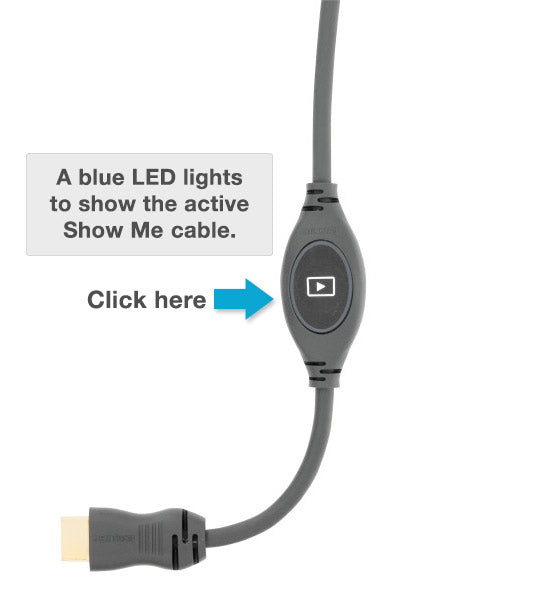

• Illuminated Share button for one-touch source switching at the table
• Built-in 24" control/tally pigtail, no separate control cable needed
• Rated for continuous use at up to 80 °C

Where It Is Used

Larger huddle rooms and conference tables running an Extron TeamWork switcher use the extra reach of this 12 ft cable so USB-C laptop users seated further away can still share content alongside HDMI and Mini DisplayPort users on the same switcher.

Specifications at a Glance

• Length: 12 ft (3.6 m)
• Connector: USB-C male to HDMI type A male
• Max. video data rate: 18.0 Gbps (6 Gbps per color)
• Voltage: 30 V, UL listed

Frequently asked questions about the Extron USBC-HDMI SM USB-C to HDMI Show Me Cable

Also referenced as Extron USBCHDMISM, USBC-HDMI-SM, part number 2673312.
