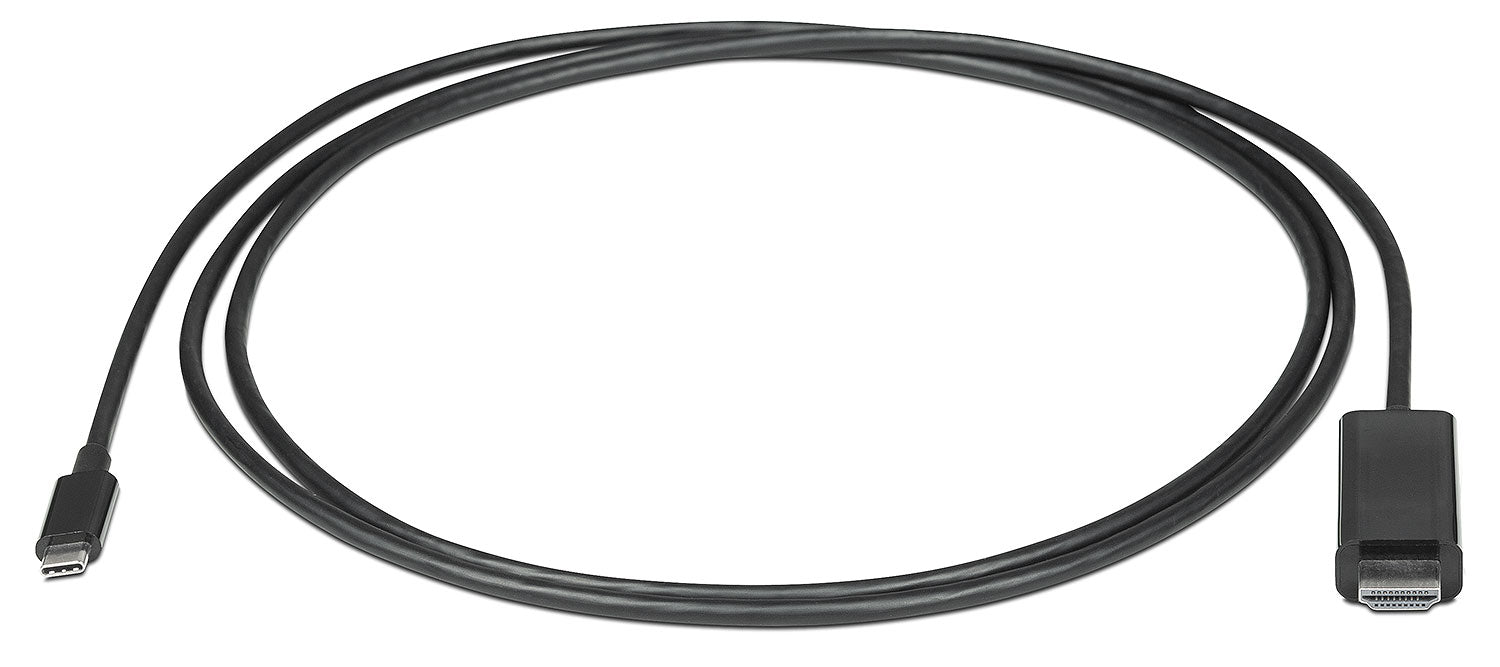

Extron USBC-HDM8K/6 (part number 26-762-06) — a 6 ft (1.8 m) USB-C to 8K HDMI male adapter cable that puts a full-length HDMI run between a USB-C source and a display or switcher.

Where the 0.5 ft version acts as an in-wall adapter point, this 6 ft cable is built to span typical table-to-wall or table-to-rack distances directly, so a USB-C laptop can plug straight into an HDMI input without an intermediate patch cable. The male-to-male build carries the same active DisplayPort Alt Mode-to-HDMI conversion, keeping resolution and bandwidth identical to the shorter model while extending the reach.

Key Capabilities

• USB-C male to 8K HDMI male cable, 6 ft (1.8 m) run
• Supports 8K/60 video plus 4K/120 and ultra-wide 5K formats
• HDMI 2.1 bandwidth up to 40.1 Gbps with HDR and 12-bit Deep Color
• Passes EDID, HDCP and audio from source to display
• Bus-powered from the USB-C source — no external power supply
• Gold-plated connectors for a durable, corrosion-resistant connection

Where It Is Used

This cable is sized for direct table-to-display or table-to-rack runs in huddle rooms, classrooms and BYOD conference spaces, letting a USB-C laptop connect straight to an HDMI display, switcher or extender without an adapter plate in between.

Specifications at a Glance

• Connectors: USB-C male to 8K HDMI male
• Length: 6 ft (1.8 m)
• Max resolution: 8K/60
• Bandwidth: up to 40.1 Gbps
• Power: bus-powered from USB-C, no external supply

Also referenced as Extron USBCHDM8K6, USBC-HDM8K-6, part number 2676206.
