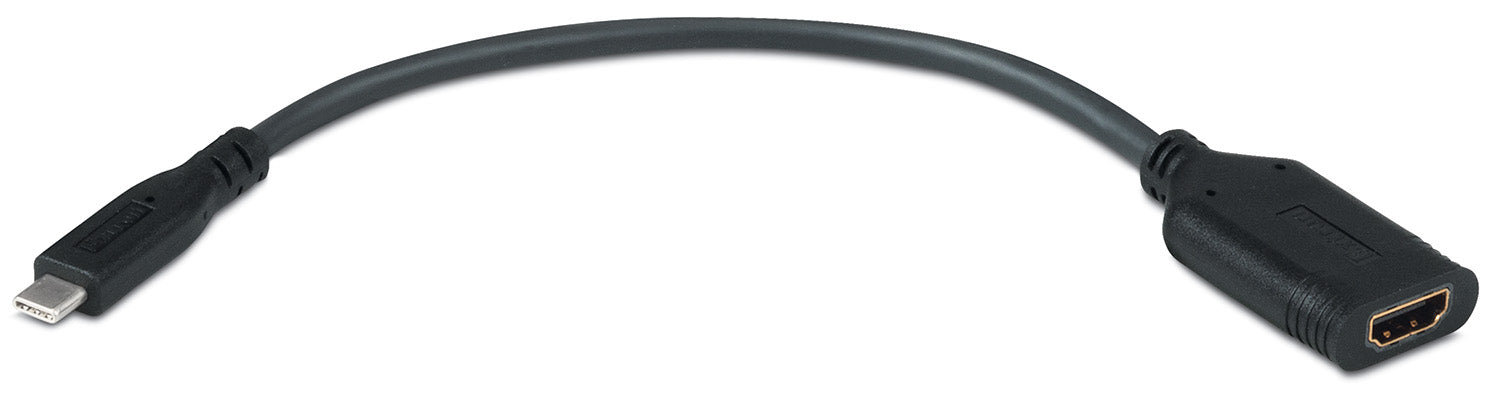

Extron USBC-HDF4K60/0.5 (part number 26-752-01) - a 6 in (15 cm) USB-C male to HDMI female adapter pigtail carrying 4K/60 video from a DisplayPort Alt Mode source.

This is the short tail that lives in a floor box or on the end of a table cable, turning a laptop's USB-C port into an HDMI socket that any standard HDMI lead can plug into. Because the HDMI end is female, the long run stays a normal HDMI cable and only this six-inch piece has to be replaced when a laptop generation changes. It is the higher-capability of the two 6-inch models: 18 Gbps at 6 Gbps per channel, with chroma from 4:2:0 to 4:4:4 and colour depths of 8, 10 or 12 bits.

Key Capabilities

• 4096x2160 and 3840x2160 at 60 Hz, up to HDMI 2.0 and HDCP 2.3.
• Maximum video data rate of 18 Gbps, 6 Gbps per channel.
• Chroma sampling of 4:4:4, 4:2:2 or 4:2:0, with 8, 10 or 12 bits per colour.
• Frame rates of 24, 25, 30, 50 or 60 fps.
• Female HDMI end means the permanent cable stays a standard HDMI lead.
• Slim 0.20 in (5.1 mm) UltraFlex jacket over 30 AWG conductors, 0.73 in (19 mm) bend radius.
• Gold-plated contacts; EDID, HDCP and audio pass through.

Where It Is Used

Table boxes and cable retractors in conference rooms, lectern connectivity panels, hot-desk and touchdown positions, broadcast and streaming carts feeding HDMI capture hardware, and any space where the fixed HDMI infrastructure has to accept USB-C laptops.

Specifications at a Glance

• Length: 6 in (15 cm)
• Video: up to 4K at 60 Hz, HDMI 2.0, HDCP 2.3
• Maximum video data rate: 18 Gbps (6 Gbps per channel)
• Connectors: 1 USB-C male to 1 HDMI female
• Cable: 30 AWG, 0.20 in (5.1 mm) diameter, UltraFlex PVC jacket

Frequently asked questions about the Extron USBC-HDF4K60/0.5 USB-C to HDMI Female 4K/60

Also referenced as Extron USBCHDF4K6005, USBC-HDF4K60-0-5, part number 2675201.
