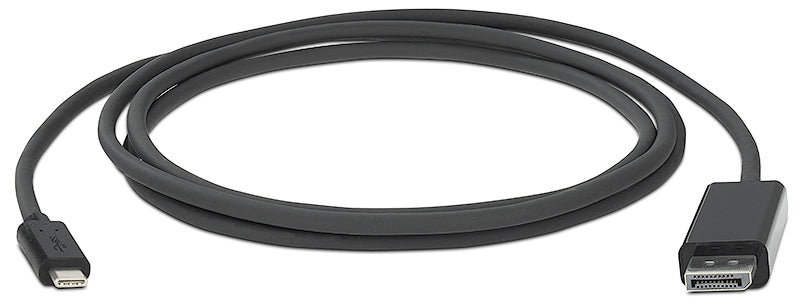

Extron USBC-DPM/6 (part number 26-716-06) - a 6 ft (1.8 m) USB-C male to DisplayPort male adapter cable for DisplayPort Alt Mode sources.

This is the one-piece version of the same idea: instead of a pigtail plus a separate DisplayPort lead, the whole run is a single cable with a USB-C plug at the source and a DisplayPort plug at the display. Six feet reaches from a table or credenza to a nearby monitor or input plate. It carries 8.91 Gbps across up to four DisplayPort lanes, enough for 4K at 30 Hz, and passes EDID, HDCP and audio so the display negotiates properly.

Key Capabilities

• Direct USB-C to DisplayPort connection with no adapter in the middle.
• DisplayPort Alt Mode 1.1a over one, two or four lanes.
• Maximum data rate of 8.91 Gbps at 2.7 Gbps per lane, up to HDCP 1.3.
• Resolutions to 4096x2160 and 3840x2160 at 30 Hz, 4:4:4 chroma, 8-bit colour.
• EDID, HDCP and audio information pass between source and display.
• Slim 0.19 in (4.8 mm) jacket with a tight 0.69 in (18 mm) bend radius.
• Gold-plated contacts; Extron Limited Lifetime Performance warranty.

Where It Is Used

Desks and workstations driving DisplayPort monitors from a USB-C laptop, conference tables feeding DisplayPort input plates, design and CAD positions, control rooms, and any installation standardised on DisplayPort displays with USB-C sources.

Specifications at a Glance

• Length: 6 ft (1.8 m)
• Video: up to 4K at 30 Hz, DisplayPort 1.1a, HDCP 1.3
• Maximum data rate: 8.91 Gbps (2.7 Gbps per lane)
• Connectors: 1 USB-C male to 1 DisplayPort male
• Cable: 0.19 in (4.8 mm) diameter, 0.69 in (18 mm) bend radius
