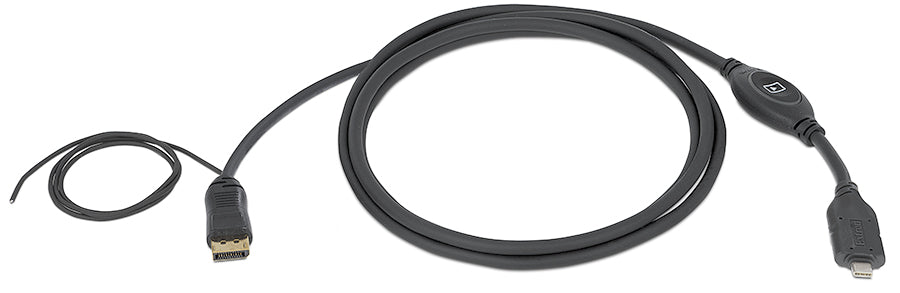

Extron USBC-DP SM (part number 26-734-06) - a 6 ft USB-C-to-DisplayPort Show Me cable built for Extron TeamWork collaboration systems.

This active, one-way adapter cable lets a USB-C laptop running DisplayPort Alt Mode plug straight into a TeamWork switcher's DisplayPort input, no dongle required. A lit Share button on the cable body doubles as the room's source-select control, and a separate three-conductor pigtail carries contact-closure and tally signals back to the switcher so no extra control wiring is needed at the table.

Key Capabilities

• USB-C to DisplayPort signal path, up to 21.6 Gbps (5.4 Gbps per lane)
• Supports 4:4:4, 4:2:2, or 4:2:0 chroma sampling at up to 60 fps
• Illuminated Share button for one-touch source switching at the table
• Built-in 24" control/tally pigtail, no separate control cable needed
• Rated for continuous use at up to 80 °C

Where It Is Used

Huddle rooms and small conference spaces running an Extron TeamWork switcher use this cable at the table surface so USB-C laptop users can share content alongside HDMI and Mini DisplayPort users on the same switcher, without needing a video-only USB-C cable.

Specifications at a Glance

• Length: 6 ft (1.8 m)
• Connector: USB-C male to latching DisplayPort male
• Max. video data rate: 21.6 Gbps (5.4 Gbps per lane)
• Voltage: 30 V, UL listed
