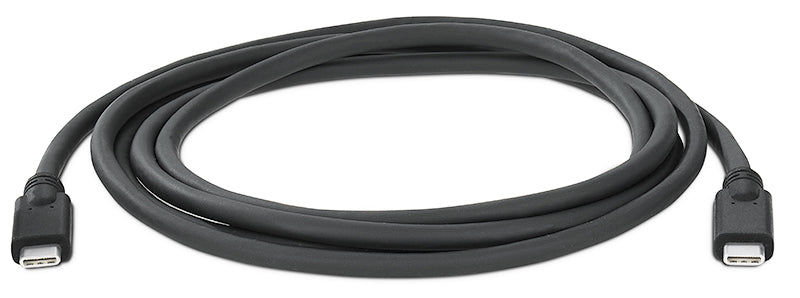

Extron USBC/6 (part number 26-715-06) — a 6 ft (1.8 m) USB-C cable that moves video, audio, data and power over a single connection.

One cable, four jobs. Video arrives as DisplayPort Alt Mode, and how much of it you get depends on how much USB bandwidth you ask for at the same time: 4K/60 alongside USB 2 data rates, or 4K/30 alongside USB data at up to 5 Gbps. Power flows in either direction at up to 60 watts, which is enough for a phone, an external drive or a laptop. Multi-Stream Transport is supported, so one USB-C output can drive more than one monitor.

Key Capabilities

• Simultaneous video, audio, data and power on one USB-C connection.
• DisplayPort Alt Mode 4K/60 video when paired with USB 2 data rates.
• 4K/30 video when USB data is running at up to 5 Gbps.
• Bidirectional USB Power Delivery to 60 watts for phones, drives and laptops.
• Multi-Stream Transport support for multiple monitors from one source output.
• Reversible USB-C connectors at both ends.
• Gold-plated contacts for a durable connection.

Where It Is Used

USB-C docking positions and hot desks, conference tables feeding a single display and a charging laptop, huddle rooms, digital signage players, and clinical or laboratory workstations where one lead has to carry picture, peripherals and power.

Specifications at a Glance

• Length: 6 ft (1.8 m)
• Video: DisplayPort Alt Mode, 4K/60 with USB 2 data or 4K/30 with USB 5 Gbps
• USB data rate: up to 5 Gbps
• Power delivery: up to 60 W, bidirectional
• Connectors: reversible USB-C, gold-plated contacts

Also referenced as Extron USBC6, USBC-6, part number 2671506.
